How to Install Rugged Ridge Flashlight Brackets, 1.5" Diameter on your 1987-2013 Wrangler

Tools Required
  • Basic Hand Tools Required
Extreme Terrain
Shop Parts in this Guide

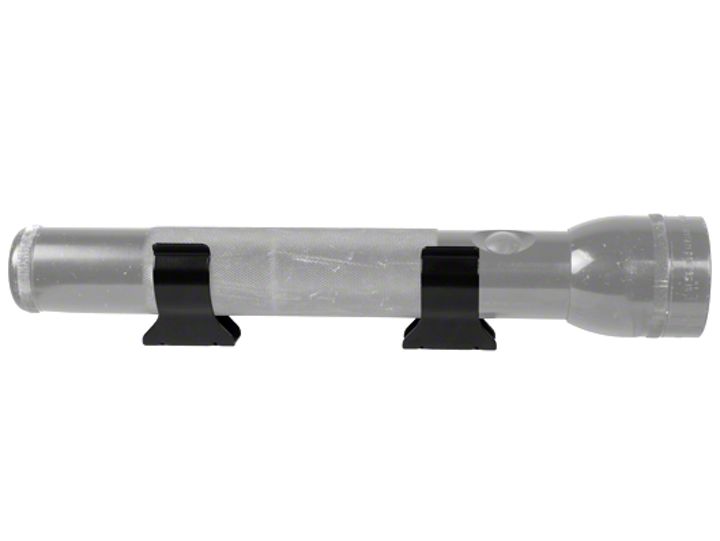

11238.06 1 ½” Diameter Flashlight Bracket Kit
Installation Instructions


Step 1: Locate a flat area with enough room to allow mounting of your flashlight. Be sure to space the 2 brackets far enough apart to secure your flashlight at each end.


Step 2: Once mounting location has been determined, mark the 4 holes to be drilled.


Step 3: Using a ¼” drill bit, drill the 4 marked holes.
Caution: Before drilling, be sure there is nothing behind the area being drilled that could possibly be damaged during drilling.


Step 4: Attach the flashlight brackets using the included phillips head screws and nuts.


Step 5: Place your flashlight into the brackets. Installation of your new 1 ½” flash light bracket kit is now complete.
