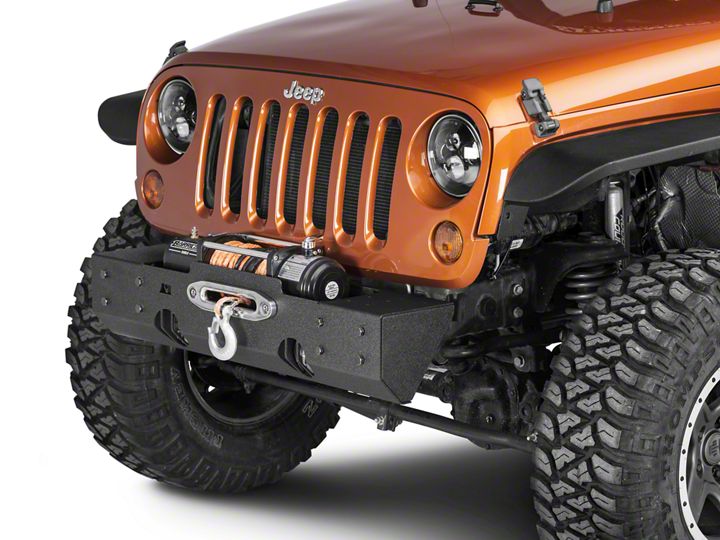

How to install a Rugged Ridge Winch Mount XHD Modular Front Bumper Base without D-Rings on your 07-18 Jeep Wrangler JK; 2018 Jeep Wrangler JL

Installation Time

1 hours

Extreme Terrain
Shop Parts in this Guide

1. Disconnect fog lights by twisting plug in the rear of fog lights. For newer model Jeeps, squeeze and pull plug to disconnect fog lights.

2. Remove original bumper.

3. Install original fog lights into Center Section from the back. Use the (8) Sheet Metal Screws to secure fog lights.


5. Install bumper ends using (3) 12mm washers and (3) 12mm lock nuts per side. Once all nuts have been started tighten nuts securely. Note: if installing optional ends, such as Stubby Ends (11540.23), High Clearance Ends (11540.24), etc., substitute them for End Plates shown.


*FOR 11540.10 ONLY*

6. Install Fairlead (not included) to Center Section. Note: bolts for Fairlead should pass from inside winch cavity, with nuts being installed on outside of Center Section.


*FOR 11540.10 ONLY*

7. Different winches may require different mounting holes to be used (see image to the right for a general guide). For the Warn® Powerplant Winch spacers will be needed (part number: 11540.15).


*FOR 11540.10 ONLY*

8. Prepare winch and vehicle for installation as specified in winch installation instructions. Align mounting holes in bumper with winch mounting holes. It may be helpful to thread winch cable through fairlead before bolting in place. Tighten bolts securely


9. Place center section of bumper onto the frame rails and then install the 12 mm bolts (8), 12 mm washer (16), and 12 mm Lock Nuts. Do not tighten any fasteners yet. When installing D-Rings, note that the top holes are further apart than the bottom holes.


VACUUM PUMP RELOCATION FOR WINCH BUMPER (11540.10)

1. Remove factory bumper and unplug fog lights. Unbolt and remove factory vacuum pump. Save factory M6 nuts, they will be reused later.


2. Remove front tab from mounting bracket. Cut should be made 2 inches from the end.

3. Spray exposed metal with rust-protecting black spray paint.


4. Disconnect hose retainer clips, and remove zip ties holding air lines together to allow for easier movement of air lines.

5. Attach shorter end of “Z” bracket to rear factory mounting stud using factory nut removed in step #1.

6. Bolt pump to “Z” bracket using M6 hex bolt, washers, and Nylock nut. Rotate pump so that it sits inside lower cross member.


7. Attach short side of “L” bracket to pump using M6 hex bolt, washer, and Nylock nut.

8. With pump centered, mark mouting hole on cross member


9. Drill mounting hole in cross member with 1/4” drill bit.

10. Spray exposed metal with rust-protecting black spray paint.


11. Secure “L” bracket to outside of lower cross member using M6 hex bolt, washer, and Nylock nut.

12. Inspect all air and wire lines for contact with frame. If needed, zip ties can be used to reposition lines.

I3. Install XHD Bumper Base following previous instructions in this manual. Note: reconnect fog lights before attaching D-Rings and Bumper Base to frame.


Ask your retailer about additional accessories for your Modular XHD Bumper system!
