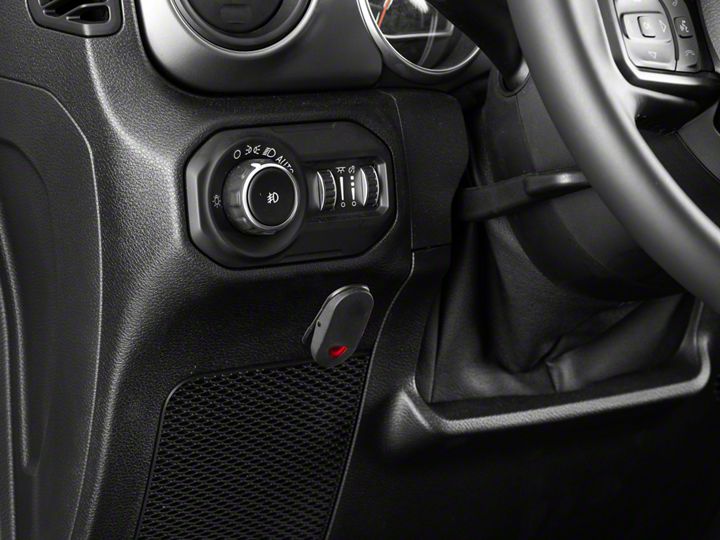

How to Install a Rugged Ridge Two Position Rocker Switch with Indicator Light on your Jeep Wrangler

Installation Time

20 minutes

Extreme Terrain
Shop Parts in this Guide

1. Wiring for 12v output.


2. Wiring when used with Rugged Ridge Fog Lights. A. Connect black wire (85) from relay directly to ground. B. Cut black wire on relay (86). C. Connect black wire (86) to (A2) on switch.


For Technical Assistance Contact:
OMIX-ADA Tech Support
Phone: 1-800-449-6649
Email: [email protected]
​Web: www.Omix-Ada.com
