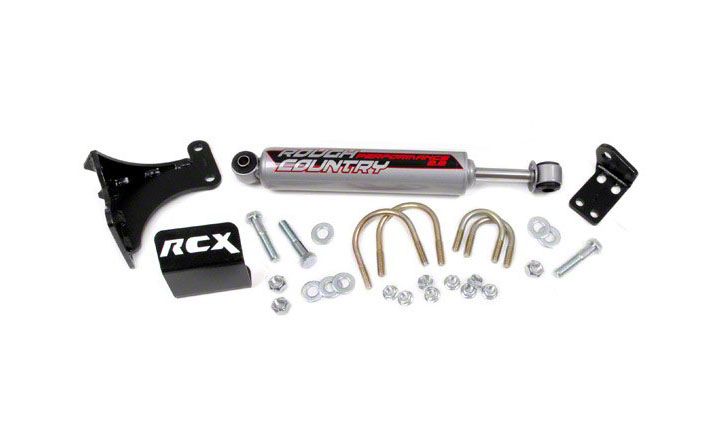

How to Install a Rough Country Perf. 2.2 Steering Stabilizer on your 2007-2014 Wrangler JK

Thank you for choosing Rough Country for your suspension needs.

Rough Country recommends a certified technician installs this system. In addition to these instructions, professional knowledge of disassemble/reassembly procedures as well as post installation checks must be known. Attempts to install this system without this knowledge and expertise may jeopardize the integrity and/or operating safety of the vehicle.
Please read all the instructions before beginning the installation. Check the kit hardware against the parts list. Be sure you have all the needed parts and understand where they go. Also please review the tools needed list and make sure you have needed tools.

Note: This kit can easily be upgraded to a dual unit with the addition of part number 87318.

NOTE: THIS STABILIZER IS FOR USE WITH VEHICLES LIFTED 2 1/2”-6”. INSTALLING THIS STABILIZER ON AN UNLIFTED VEHICLE IS NOT RECOMMNENDED.

STABILIZER INSTALLATION INSTRUCTIONS
1. Jack up the front of the Jeep and lower onto jack stands to allow the front wheels to turn.

2. Install the center axle bracket with the supplied u-bolts as shown in Photo 1 with the edge of the bracket against the axle housing. Do not fully tighten at this time.

3. Install the ½” X 2½” bolt on the bracket and install on the tie rod on the driver side as shown in Photo 2 with the offset on the bracket to the inside and against the tie rod clamp—bolt can not be installed after installing bracket.
The offset must be to the inside to ensure the stabilizer does not bottom-out when turning.

4. Install the cover plate as shown with the ½” X 2½” bolt to secure the stabilizer to the bracket the ½” x 1” in the other hole. See Photo 3. Level the center bracket horizontally and tighten hardware using a 3/4” wrench on the stabilizers and 9/16” on the axle bracket. Be sure to install the flat washers as shown on top of the stabilizer eyelet.

5. Install the opposite ends of the stabilizer cylinders on the tie rod bracket bolts installed in Step 2. See Photo 4.
