Installation Time
(approx) a Day
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Rock Krawler 4.50-Inch X-Factor X2 Flat Belly Long Arm Suspension Lift Kit with Shocks (97-06 Jeep Wrangler TJ, Excluding Unlimited)Find parts that fit my vehicle
Item J251132
Our Price
$5,070.80 kit
Military, Medical & First Responders
$253.54 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Maintenance Free/ High Ability Control Arms Featuring Award Winning Adventure Series Joints
- Full Flat-Belly Long-Arm System
- Best Cross Over Angle Long-Arm System Available
- Best On Road And Off Road Long-Arm Geometry Available
- Excellent Highway Ride And Handling
- High Misalignment Lower Control Arms
- Tuned Triple-Rate Coil Springs Front And Rear
- Independent Front 3 Link Geometry
- Double Triangulated Rear 4 Link Geometry
- Pro Front Sway Bar Disconnects
- Upgradeable To Coilovers, Stretch Systems, Or Rockzilla
- Includes Four Triple-Rate Coil Springs
- Includes Four High Misalignment/Adjustable Lower Control Arms
- Includes Adjustable Front Upper Control Arm
- Includes High Misalignment/Adjustable Front Track Bar
- Includes Two Front Adjustable Sway Bar Disconnects
- Includes Two Front Sway Bar Link Straps
- Includes Skid Plate And Skid Plate Mounting Brackets
- Includes Two Rear Upper Triangulated 4 Link Arms
- Includes Rear Triangulated 4 Link Mounting Cradle/Axle Truss
- Includes Three Extended Stainless Steel Brake Lines
- Includes Two Extended Rear Sway Bar Links
- Includes Front Track Bar Relocation Bracket
- Includes Drop Pitman Arm
- Includes Four Lower Control Arm Axle Mounts
- Bumpstops Included With All Shock Options
- Shock Options Include Bilstein 5100 Shocks, Maintenance Free
- Typical Wheel Fitment For 12.5 Inch Wide Tire On 8 To 9 Inch Wide Wheel With 3.75 Inch Or Less Backspacing
- Highly Recommend Antirock Rear Sway Bar
- Designed For OEM Axles And OEM Axle Control Arm Mounting Widths Dana 30/44
- Requires SYE With C.V. Driveshaft
- Custom Cat Back Exhaust Required With Long Rear Uppers
- Rubicon Edition TJs Require New Rear Driveshaft
- Requires Removal Of OEM Rear Upper Control Arm Mounts Off Rear Axle
- Recommend Rear Shock Relocation Brackets Or Shock Shifters For Some Applications
- Requires Artec Or Motobilt HD Body Mounts Raising Body 1.25 Inches And Motor Mount Lift Or 1.5 Inch Body Lift/Motor Mount Lift Or Greater
- Combine Suspension Lift Height And Body Lift Height For Total Lift Height Adjustment
- Fits 97-06 Jeep Wrangler TJ Excluding Unlimited
| Brand | Rock Krawler |
| Lift Height | 4.50 Inch |
| Lift Kit Type | Coil Spring Lift |
| Lift Kit Max Tire Size | 31 Inch |
| Brand of Shocks | Rock Krawler |
| Rear Lift Type | Coil Spring |
| Shock Type | Non-Reservoir |
Description
Advanced Suspension System. The Rock Krawler 4.50-Inch X-Factor X2 Flat Belly Long Arm Suspension Lift Kit delivers superior ride quality and off-road capability. Designed to enhance stability, articulation, and clearance, this system is engineered for serious Jeep Wrangler TJ enthusiasts seeking balanced performance on and off the trail.
Construction and Appearance. Constructed with high-strength materials, the system features full flat-belly long arms that tuck neatly inside the frame for protection and streamlined appearance. It incorporates high misalignment joints using BASF thermo-elastomer material, tuned triple-rate coil springs, and stainless steel components to ensure durability and longevity under rigorous conditions.
Installation. Installation requires moderate mechanical skill with some vehicle-specific modifications, including removal of factory mounts and potential exhaust adjustments. Basic hand tools and mechanical knowledge are necessary.
Warranty and Application. The system is backed by an abuse proof lifetime warranty on all hard parts, providing confidence and peace of mind to the user. This suspension kit fits 97-06 Jeep Wrangler TJ excluding Unlimited models. It requires OEM axle widths and specific body lift combinations for proper installation and optimal performance.
Application. This suspension kit fits 97-06 Jeep Wrangler TJ excluding Unlimited models, requiring OEM axle widths and specific body lift combinations for proper installation and performance.
Rock Krawler TJ45X2LA-B51
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

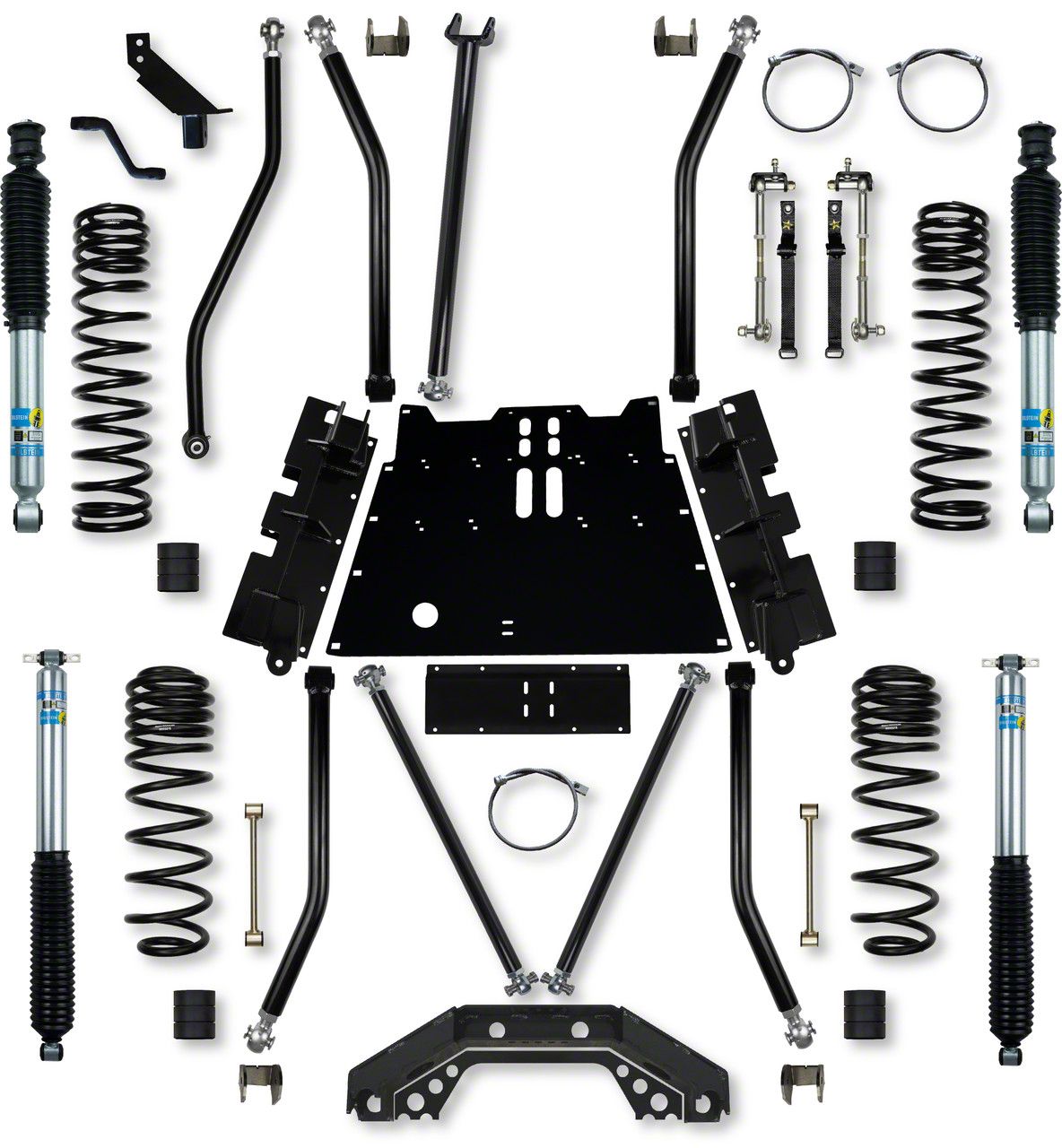

What's in the Box
- (4) Triple-Rate Coil Springs
- (4) High Misalignment/Adjustable Lower Control Arms
- (1) Adjustable Front Upper Control Arm
- (1) High Misalignment/Adjustable Front Track Bar
- (2) Front Adjustable Sway Bar Disconnects
- (2) Front Sway Bar Link Straps
- (1) Skid Plate And Skid Plate Mounting Brackets
- (2) Rear Upper Triangulated 4 Link Arms
- (1) Rear Triangulated 4 Link Mounting Cradle/Axle Truss
- (3) Extended Stainless Steel Brake Lines
- (2) Extended Rear Sway Bar Links
- (1) Front Track Bar Relocation Bracket
- (1) Drop Pitman Arm
- (4) Lower Control Arm Axle Mounts
- (4) Shocks
Tech Guides:
- Best Lift Kits
- How To Choose the Best Lift Kit for Your Off-Road Vehicle
- How Do Lift Kits Affect Ride Quality
- LIfting a Jeep: Pros & Cons of Modifying Your Suspension
- Will 35 Inch Tires Fit My Jeep Without A Lift?
- How Much Does A Jeep Lift Kit Installation Cost?
- The Official 2016 'Jeep Wave' Program
- The Ultimate Jeep Suspension Guide
- Lift Kits: The Ultimate Buyer's Guide
- Top 5 Premium Jeep Suspension Brands
- Top 5 Lift Kit and Suspension Systems in 2022
- Rock Krawler Suspension | Morris 4x4 Center
- Top 5 Best Jeep Lift Kits
- Mopar Making New Parts Distribution Center
4.7
Reviews of Rock Krawler Suspension Products (53)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Wrangler
- TJ Rubicon 2 Door - 03, 04, 05, 06
- TJ Wrangler 2 Door - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06
