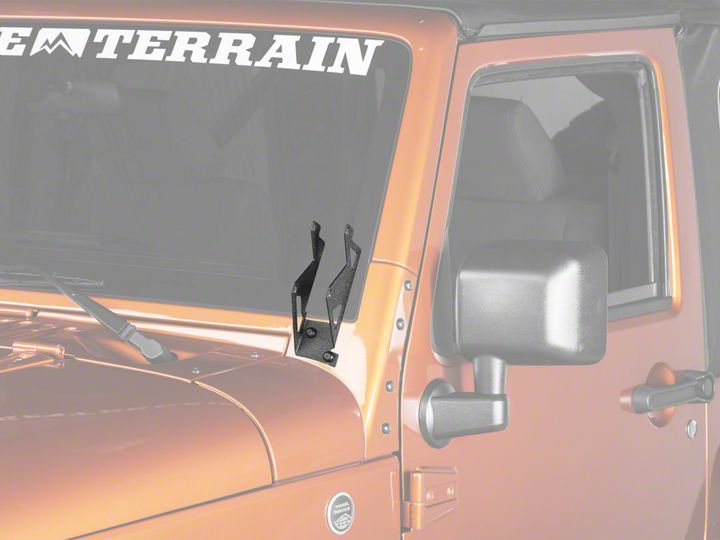

How to Install RedRock 4x4 Dual Vertical Windshield LED Light Mount Brackets - Textured Black (07-18 Jeep Wrangler JK) on your Jeep Wrangler

Installation Instructions:

1. Remove these two screws with the T40 torx bit.

2. Once the screws are removed, you will have to unscrew this small plastic piece from the screw.

3. Insert the screw into the holes of the bracket, then screw the plastic piece back onto the screw. Make sure to screw the plastic piece onto the screw completely, until it touches the metal bracket.

4. Insert the screws into the holes and hand tighten them.

5. Take the T40 Torx bit and tighten the screws lightly.

6. Repeat steps 1-5 for opposite side.

7. Now the LED lights can be attached to the bracket and the installation is complete.

Installation Instructions Written by ExtremeTerrain Customer Thomas Sandoval 06/07/2017
