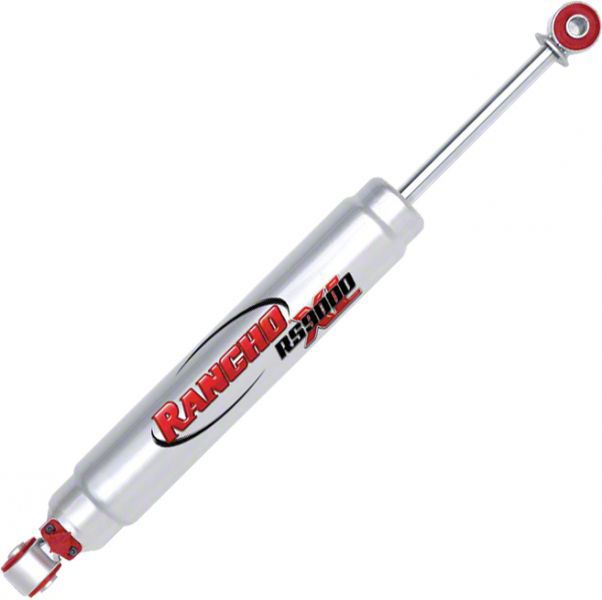

Rancho RS9000XL Rear Shock for 2 to 4-Inch Lift (97-06 Jeep Wrangler TJ)Find parts that fit my vehicle
Item J14349
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- _x000D_
- Nine Levels Of Performance With Easy-To-Adjust Knob For Customized Damping Control And Firmness _x000D_
- Designed For Stock Or Lifted Trucks, SUVs, And Jeeps Used For Towing, Hauling, Or Off-Roading _x000D_
- Industry First Nine-Position Manually Adjustable Shock Series In The Off-Road Market _x000D_
- Nitrogen Gas Pressurized To 120 PSI To Minimize Air-To-Oil Mixture And Reduce Damping Fade And Foaming _x000D_
- Application-Specific 18mm Nitro-Carburized Piston Rod For Corrosion Resistance And Scuff Protection _x000D_
- Double-Welded Loops At Stress Areas And 1.25-Inch Sintered Iron Piston For Structural Integrity _x000D_
- Up To 2.75-Inch Tri-Tube Body Filled With All-Weather Fluid For Cooler Operation And Temperature Resistance From -40 To 248°F _x000D_
- Polyurethane Rebound Bumper And Bushings With Graphite-Filled Fluon-Banded Piston For Smooth Ride And Enhanced Responsiveness _x000D_
- Low-Friction, Self-Lubricating Seal Retains Gas And Oil For Quicker Rebound And Smoother Compression _x000D_
- Premium Liquid Metallic Finish And Polyvinyl Protective Boot For Longevity _x000D_
- Manual Damping Adjustment With NO Mounting Hardware Included _x000D_
- Boot Included And Gas Charged _x000D_
- Telescopic Shock Type With Loop Bushing And Sleeve Mount At Lower And Cross Pin Mount At Upper _x000D_
- Forceful Progressive Valving Type With No Remote Reservoir Or Coil Springs Included _x000D_
- Shock Stroke Length Of 8.86 Inches, Extended Length 24.22 Inches, Body Diameter 2.18 Inches, And Shaft Diameter 0.622 Inches _x000D_
- Painted Silver Finish With Steel Body And Nitro-Carburized Shaft Material _x000D_
- Includes Polyurethane Rebound Bumper And Graphite-Filled Fluon-Banded Piston _x000D_
- Fits 97-06 Jeep Wrangler TJ Rear 3.5 Inch Lift With Rancho RS66113B System. Use To Depletion Then Replace With RS994256 _x000D_
Description
Adjustable Performance Shock. The Rancho RS9000XL Rear Shock for 2 to 4-Inch Lift provides exceptional control and performance across various terrains. It is engineered for both on-road smoothness and off-road durability, ideal for vehicles used in towing, hauling, or challenging trail conditions. This shock absorber enables a customizable ride through manual damping adjustment across nine distinct settings.
_x000D__x000D_Construction and Appearance. Crafted with a durable steel body and an 18mm nitro-carburized piston rod, this shock resists corrosion and surface damage. Its tri-tube design is filled with all-weather fluid to maintain consistent performance in temperatures ranging from -40 to 248°F. The premium liquid metallic coating and polyvinyl protective boot enhance longevity and durability under harsh conditions.
_x000D__x000D_Installation. Installation is straightforward for those with mechanical experience and does not require any drilling. The shock features mounts that fit directly onto the vehicle without modification.
_x000D__x000D_Warranty. The product comes with a limited lifetime warranty, providing confidence in its long-term performance.
_x000D__x000D_Application. Designed specifically for the rear of 1997-2006 Jeep Wrangler TJ models with a 3.5-inch lift. Intended for use with the Rancho RS66113B system, with a recommended replacement of RS994256 after use to depletion.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Shock Absorber
Tech Specs
