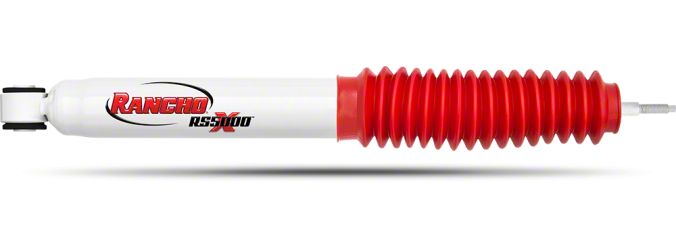

Rancho RS5000X Front Shock for 0 to 2-Inch Lift (07-18 Jeep Wrangler JK)Find parts that fit my vehicle
Item J138765
Our Price
$70.30 each
Military, Medical & First Responders
$3.52 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Save with Open Box
From $42.18
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Featuring a Unique, Exclusive Valving System and Advanced Compression Functionality _x000D_
- Improved Overall On- and Off-Road Handling and Performance _x000D_
- Cross Tuned Technology with Exclusive Rebound Valving System _x000D_
- Exclusive Progressive Engagement Valving Custom-Tuned for Each Vehicle to Reduce Initial Low-Speed Impacts and Minimize Rough Ride _x000D_
- 16mm Nitro-Carburized Piston Rod to Resist Scuffs and Corrosion _x000D_
- Double-Welded Loops at Stress Areas for Enhanced Durability _x000D_
- 35mm Sintered Iron Piston for Structural Integrity _x000D_
- Polyvinyl Protective Boot Included _x000D_
- Large Twin-Tube Body Filled with All-Weather Fluid for Cooler Operation and Increased Control _x000D_
- Operates Effectively Between -40 to 248 Degrees Fahrenheit _x000D_
- Polyurethane Rebound Bumper and Rubber Bushings Absorb Ride Harshness _x000D_
- Fluon-Banded Piston Enhances Responsiveness to Road Conditions _x000D_
- Nitrogen Gas Pressurized to 150 PSI to Reduce Damping Performance Fade and Foaming _x000D_
- Compression Control Valve Custom-Tuned to Regulate Fluid Transfer and Maintain Shock Motion Control _x000D_
- Low-Friction, Self-Lubricating Seal Retains Gas and Oil for Quick Rebound and Smooth Compression _x000D_
- Application-Specific Piston Delivers Heightened Control of Shock Motion _x000D_
- Comes with Limited Lifetime Warranty _x000D_
- Mounting Hardware Included _x000D_
- Loop Bushing and Sleeve Mount with 1/2 Inch Sleeve ID and 1.5 Inch Sleeve OAL _x000D_
- Stem Mount with 2 5/8 Inch Stem Length and 1/2-13 Thread Pitch _x000D_
- Boot Included, Gas Charged, Twin Tube Construction _x000D_
- Body Diameter 2.25 Inch, Stroke 7.9 Inch, Extended Length 21.75 Inch _x000D_
- Shaft Material Nitrocarburized Steel, Painted White Body Finish _x000D_
- Progressive Valving Type, Passive Suspension _x000D_
- Shock Absorber Rod Diameter 0.622 Inch _x000D_
- Shock Absorber Bore Size 1.38 Inch _x000D_
- Includes Rubber Dust Shield, No Adjustable Damping Features _x000D_
- Fits 07-18 Jeep Wrangler JK Front Position with 0 to 2 Inch Lift Height _x000D_
| Brand | Rancho |
| Shock Lift Height | 0 to 2-Inch Lift |
| Shock Type | Non-Adjustable |
Description
Advanced Suspension Performance. The Rancho RS5000X Front Shock for 0 to 2-Inch Lift offers enhanced on- and off-road handling thanks to its unique valving system and compression functionality. Specifically engineered to improve vehicle control, it minimizes ride harshness and delivers a smoother, more responsive driving experience.
_x000D_Construction and Appearance. Built with durability in mind, this shock features a 16mm nitro-carburized piston rod resistant to scuffs and corrosion, and a 35mm sintered iron piston for added structural integrity. The twin-tube white-painted body contains all-weather fluid for consistent performance across extreme temperature ranges, complemented by a polyvinyl protective boot and rubber bushings for ride comfort.
_x000D_Installation. Installation of this shock absorber is straightforward, requiring no drilling and includes all necessary mounting hardware. It fits the front position of Jeep Wrangler JK models with a 0 to 2-inch lift height.
_x000D_Warranty. This product includes a limited lifetime warranty, ensuring long-term reliability and peace of mind.
_x000D_Application. Designed specifically to fit the 2007 to 2018 Jeep Wrangler JK front suspension with a lift height from 0 to 2 inches, this shock absorber accommodates the vehicle’s original geometry without requiring modifications.
Rancho RS55326
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) RS5000X Front Shock Absorber
