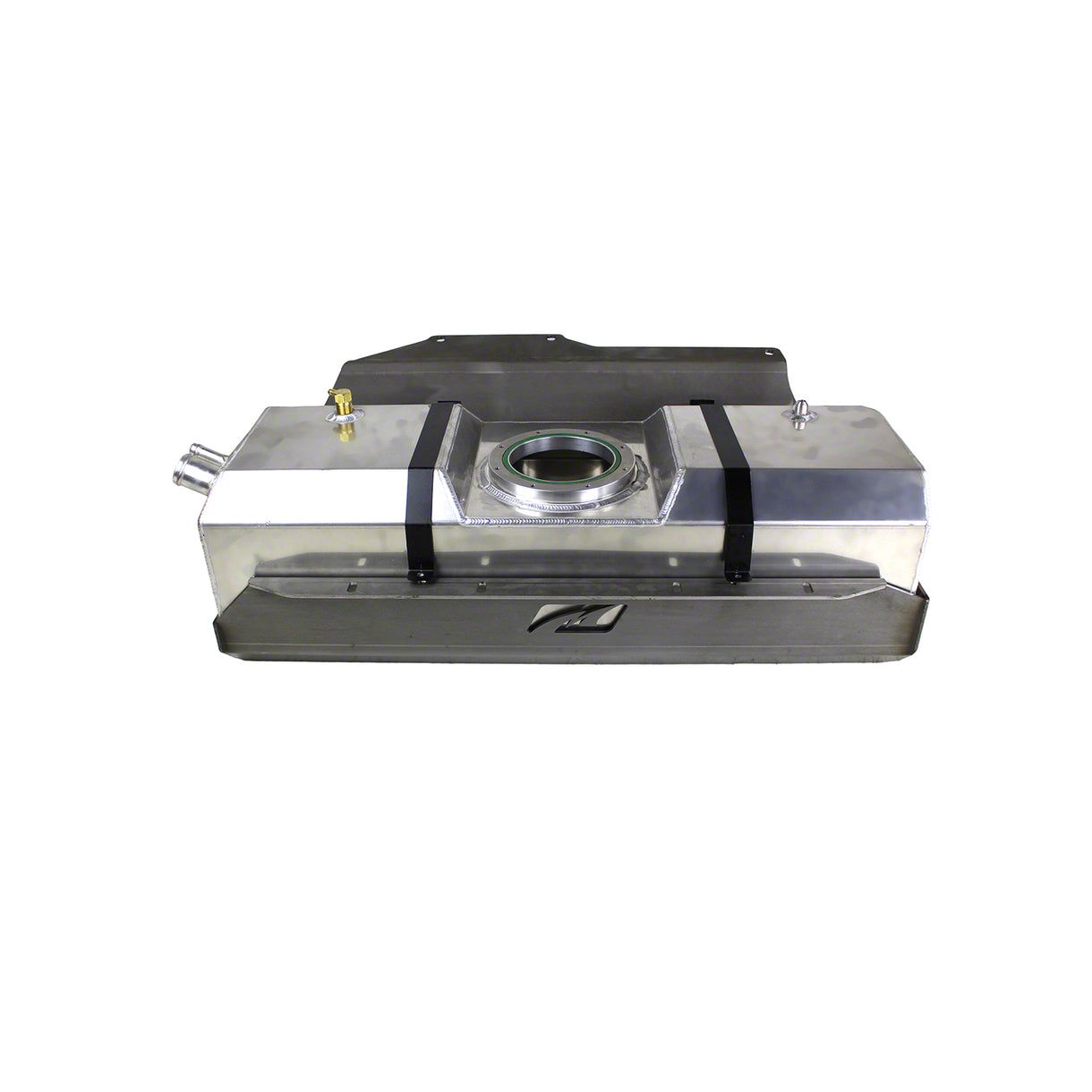

Motobilt Stretch Underbody Fuel Cell with Pigtail Adapter (97-04 Jeep Wrangler TJ w/ Stretched Wheelbase)Find parts that fit my vehicle
Item J258365
Our Price
$1,019.00 set
Military, Medical & First Responders
$50.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 14.5-gallon fuel tank capacity
- Constructed from 1/8” thick aluminum sheet
- Precision CNC laser cut and CNC press brake formed
- TIG welded for superior weld strength and finish
- Fuel fill and vent tubes CNC machined and TIG welded to tank body
- Tubes positioned in factory location to accept factory fuel filler hose and vent tube from 1997-2002 TJ
- Includes roll-over valve and one 8-AN fitting for vent tube
- Heavy-duty 3/16” steel skid plate included
- Steel skid fully MIG welded and mounts to stock TJ frame
- Aluminum fuel tank secured to steel skid with two steel hold-down straps with adjustable fasteners
- Does not require a body lift to install
- Compatible with several rear axles including GM 14 bolt, Ford Sterling 10.25/10.5, Dana 60, Dana 44, and Ford 8.8
- Approximately 50 lbs. in weight
- Pigtail adapter required for TJ models 2004 and earlier to adapt to the newer 2005-2006 fuel pump
- Works with factory exhaust
- Will not work with Motobilt TJ or LJ Back Half Kit
- Fits 1997-2004 Jeep Wrangler TJ with stretched wheelbase
Description
Heavy Duty Fuel Cell Upgrade. The Motobilt Stretch Underbody Fuel Cell with Pigtail Adapter is designed to accommodate stretched wheelbase Jeep Wrangler TJ and LJ models by providing a durable, high-capacity fuel tank solution. This product supports up to 6” wheelbase stretch while securely mounting underneath the Jeep, making it ideal for off-road and rock crawling applications.
Construction and Appearance. Crafted from 1/8” thick aluminum sheet, the fuel cell is CNC laser cut and formed with precision, followed by TIG welding for superior strength and finish. The fuel fill and vent tubes are CNC machined and welded to maintain factory placement. The assembly is protected by a heavy-duty 3/16” steel skid plate, fully MIG welded and designed to mount to the original TJ frame. The tank ships in raw steel and aluminum finish, suitable for rugged off-road use.
Installation. Installation requires no body lift or major modifications like drilling. The fuel cell mounts directly in the factory fuel tank location, ensuring a straightforward replacement without the need for additional wheelbase modifications unless desired.
Warranty. The fuel cell is backed against manufacturer defects, underscoring the product’s reliability and durability.
Application. Specifically designed to fit 97-04 Jeep Wrangler TJ with Stretched Wheelbase.
Motobilt MB5020-MB5057
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Aluminum Fuel Cell
- (1) Steel Skid Plate
- (1) Set Of Hold Down Straps
- (1) Fuel Pump Clamping Ring
- (1) Mounting Hardware Kit
- (1) Pigtail Adapter
