Mammoth 4 Inch Lift Kit w/Shocks (03-06 Jeep Wrangler TJ)

Item J104351
ExtremeTerrain no longer carries the Mammoth 4 Inch Lift Kit w/Shocks (03-06 Jeep Wrangler TJ). Please check out Jeep CJ7 Lift Kits 4-4.75" (1976-1986) for an updated selection.
Verify parts fit and get product recommendations.
Wrangler Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features

    • Increases Ground Clearance - 4" Lift
    • Accommodates Tires up to 35" in Size
    • Twin Tube Gas Pressurized Shocks
    • Linear - Standard Rate Coil Springs
    • Rear Track Bar Bracket Included
    • Direct Bolt-On Replacements
    • Lifetime Limited Warranty
    • Fits 2003-2006 TJ Wranglers

    Description

    4" Suspension Lift. Raise your 2003-2006 TJ Wrangler's suspension for increased ground clearance with a Mammoth 4x4 Lift Kit. By lifting your TJ's suspension by a full 4 inches, with a Mammoth Lift Kit, you will be able to run much larger tires - up to 35 inches in size. Installing a set of oversized tires and a Mammoth 4x4 Lift Kit is the perfect way for TJ owners to conquer all types of treacherous terrains. This Mammoth Lift Kit not only performs excellently, but looks great while doing so.

    Mammoth 4x4 Shocks. Manufactured using a gas pressurized twin-tube design, these non-adjustable Mammoth 4x4 Shocks have a larger diameter piston to provide better dampening and rebound, when compared to your original factory shocks. Mammoth 4x4 Shocks feature an outer steel housing that is completed in durable black coated finish for impressive good looks and to provide corrosion protection against the elements.

    Mammoth 4x4 Coil Springs. The included linear (standard rate) Mammoth 4x4 coil springs are shot peen harden to increase tensile strength for a stronger longer lasting spring. Every Mammoth 4x4 spring is cycled, set and spring rate verified, so you get the expected ride height right out of the box with no settling.

    Bolt-On Installation. Designed to be a direct bolt-on replacement for the factory suspension, the Mammoth 4x4 4-inch Lift Kit includes (4) Shocks and (4) Coil Springs, extended sway bar links and a rear track bar relocation bracket. Please note that minor drilling is required for installation.

    Application. This Mammoth 4x4 4-inch Lift Kit is specifically designed to fit 2003-2006 TJ Jeep Wranglers. A full 4-wheel alignment should be completed after installation.

    Mammoth 4x4

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Installation & What's in the Box

    Installation Info

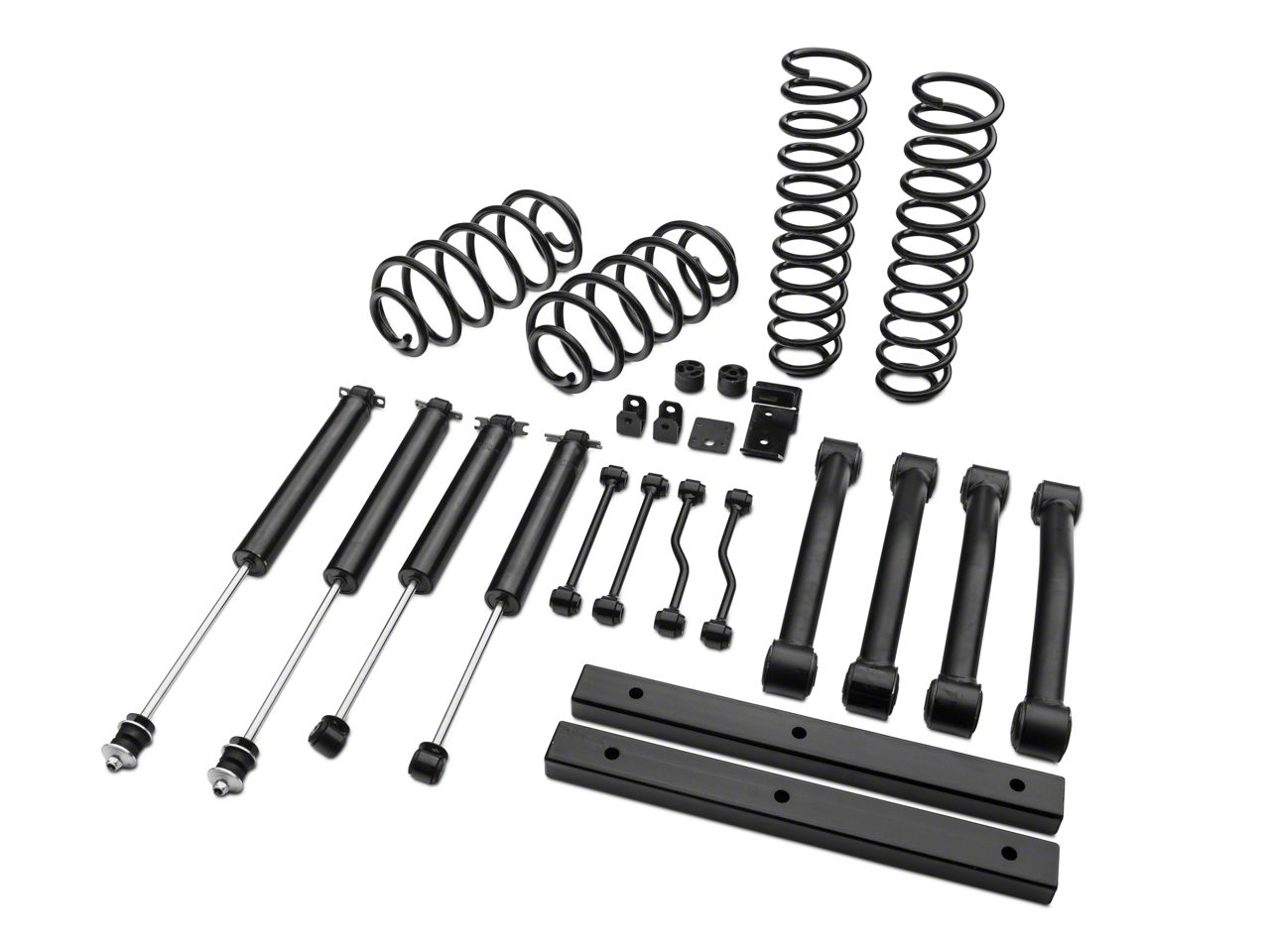

    What's in the Box

    • (2) Front coil springs
    • (2) Rear coil springs
    • (2) Front Shocks
    • (2) Rear Shocks
    • (1) Rear track bar relocation bracket
    • (2) Extended rear sway bar links
    • (2) Extended front sway bar links
    • Brake line relocation kit

    Tech Specs

    Lift Kit Specifications
    Year/Model:2003-2006 TJManufacturer:Mammoth 4x4
    Lift Type:Coil SpringLift Height:4"
    Shocks Included:YesMax Tire Size:35


    Spring Specifications
    Spring Rate:Front: 156.8 lb/in
    Rear: 195.44 lb/in
    Progressive or Standard:Linear/Standard


    Shock Specifications
    Style:Twin TubeAdjustable:No
