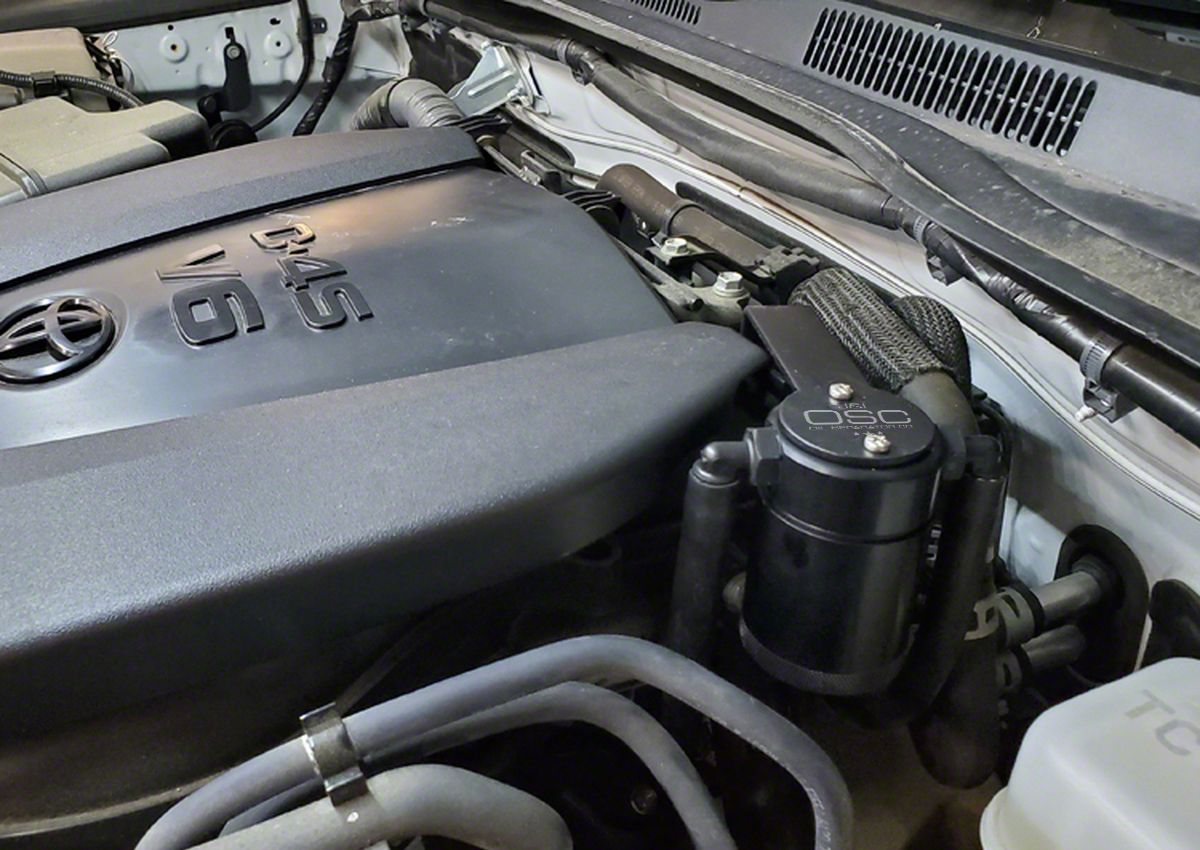

J&L 3.0 Oil Separator; Black Anodized; Driver Side (16-23 3.5L Tacoma)

Item TT7678
Call a Tacoma Enthusiast at 1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Our Price

$159.00 (each)

FREE Shipping Market Price $182.85 You Save 13% ($23.85)

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Video Review & Installation

      Meredith: Hey, guys. So today we're checking out the J&L 3.0 Black Oil Separator for the Driver Side, fitting all 2016 and newer 3.5 liter Toyota Tacomas. And this will definitely be something to check out if you have a stock or modified engine and you wanna reduce the oil sludge from making its way back into your engine and increasing engine protection for better performance and solid longevity.And you may not realize it, but the oily vapors on their way out of your engine can sneak back in through the PCV system, which can create build-up over time and can bog down your engine's performance. Now, again, that is going to happen over time but what this will do is capture the oily air creating combustion, separate the oil from the air, and trap the oil in the catch can before it's routed back into your PCV.Now, that will eliminate all that potential engine sludge. And this specific option by J&L will feature a quality design to do just that. The catch can will have a solid billet aluminum construction with a black anodized finish and on the inside is going to feature a dual filter, optimizing filtration.And the mesh and honeycomb aluminum filter will condense that oil, pushing it down into the catch can eliminating all of that excess sludge. And this will hold up to three ounces of oil, which can easily be emptied out every 3,000 miles or so, just like an average oil change. And J&L made this very simple. All you have to do is unscrew the base, dump the excess oil, and thread it back on for very easy maintenance.The base will also be textured down at the bottom to make sure that it's just that much easier even if it is oily. This will also include a rubber O-ring on the top and heavy-duty hoses for leak prevention. And I would like to call out that this is also not going to be CARB-approved. So if you do live in an emission restrictive state, I would just be aware of that.As far as the price goes, this is going to come in at roughly $175, which is very average for an oil separator. And there are a number of different options in the category. However, this will have the highest capacity catch can while also being specific to your engine.Now, a lot of other options will usually have a universal style fitment which will be great if you're looking for something a little bit bigger than this or you don't mind that extra work. Most other options in the category are going to have a universal style fitment, which will be great if you're looking for something a little bit bigger than this or don't mind that extra work. But if you're looking for a quality option that's specific to your V6, then this is gonna be right up your alley.Now, when it comes to install, I'm gonna give this a two out of three wrenches on the difficulty meter, taking you about an hour to get the job done with some very basic hand tools. And one of our customers here has actually installed this on their Tacoma, and is gonna walk you through that process step by step. That's gonna wrap it up for my review. Let's go ahead and get into the install.Man: You're gonna need a ratchet with a 10-millimeter socket, a Phillips head screwdriver, and a utility knife. Okay, we need to remove this hose that's on the intake side, just this little clamp. You can do this by hand. So you move this down.So it's like that, and then you should be able to just wiggle and pull it down. Now, next, you wanna remove that clamp. Again, it's easily done with your hand. It's bit of a struggle just because of the area. Once you get it far enough, you should be able to wiggle that hose and it comes right off. Now, you will wanna remove this hose just like this.So, this piece is on the lower part of the intake and this connects to the valve cover gasket. Now, with that hose removed, you wanna cut it in the middle of the bend, the 90-degree, and where the insulation is, somewhere in the middle. So, right there. This is where having a sharp Exacto knife comes in handy.Just wanna cut it, you got two pieces like this. And you'll wanna take your shorter hose. You'll wanna add some kind of lubricant. I'm using some oil here. You kind of wanna put it around this barb like this, meaning you'll take one of the hose clamps, and you'll put it over this.You'll wanna use a flathead screwdriver. You'll wanna push that on like so. And then you'll wanna tighten down this hose clamp with your flathead screwdriver. So this piece here attaches to the underneath of the intake. So you'll wanna kind of line this hose up to where it's going straight up and then tighten it down.That one's ready to go. On this longer piece that connects to the valve cover, it's the same thing, a little bit of oil, I wanna put it onto this fitting, just makes it a lot easier. When you take your hose clamp, these ones are a little bit sent down so we've got to back it up a little bit.We're gonna put those on there. We wanna visualize where that hose is gonna need to go. So this connects to the intake like so.So you kind of want this one straight up too as well like that and tighten down the hose clamp. Okay. Okay, so now you wanna take the one that connects to the back of the valve cover. You wanna kind of snake it back there.And take this hose on the other side of these hoses here like that. And then just push that hose back onto the fitting back there, and then reinsert that clamp, and then you got that. Now, you will wanna take the one that goes on the lower part of the intake, and it connects here. And same thing. I just wanna push it up there. And then we'll see it's now attached under there.And then you'll take the clamp, slide it into place. And so now, you'll have these two lines here. So now, the smaller hose that's connected to the intake, you'll wanna mount it on the side that has the O on this side. Take some lube. I'm using oil. It just makes it easier to put it on these fittings.And as you can see, it's on the O side. We just wanna push that in there like so until the hose bottom's out like that. So that's what you got left. Now, for the one that connects to the valve cover side which is your longer hose, same thing, oil on the fitting here, just like this.Then this one connects on the C side. It just slides up there. This one's a little tougher. just trying to get it to where it bottoms out on that fitting. Once these go in, they can get them back off. Okay, now once you get both those hoses attached and seated correctly, you'll wanna take now your bracket, very nice finishing touches that they did here. They also engraved it here and on the bracket. With the two provided Phillips head screws, you just put them here on the top, get one started, just put it down there. You don't wanna snug it down yet. Just wanna get the other one started.Now, we can snug those down like so. Now you will wanna take the bolt that's been provided in the kit. It's a 10-millimeter. And there's an open spot right on the intake. That's where it's going.Just get that guy started. Take your 10-millimeter ratchet. Let's get it all the way down, and snug it down like that. Now, when you wanna check this and empty it, you just undo the can here at the bottom. That very easily comes out, so that way it doesn't spill and you can just take it and empty it out if you need to. To put it back in, it's kind of just reverse of what you just did.Meredith: So that is going to wrap it up for my review and the install of the J&L 3.0 Black Oil Separator for the Driver Side, fitting all 2016 and newer 3.5 liter Toyota Tacomas. For more videos and products just like this, remember to always keep it right here at

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation


      • Oil Separator
      • Driver Size Position
      • Minimizes Oil via Intake Tract and Blow-By
      • Tank Holds Up to 3 Ounces of Fluid
      • Aluminum Honeycomb Filter with Fine Mesh Screen
      • Heavy-Duty Billet Aluminum Construction
      • Corrosion-Resistant Black Anodized Finish
      • Displays the J&L Precision-Cut Logo
      • Includes Plug-and-Play OEM Hoses
      • Comes with a Delete Kit for Factory Sound Tube
      • Not CARB Certified
      • Easy, Bolt-On Installation
      • One-Year Limited Warranty
      • Fits All 2016-2023 3.5L Toyota Tacoma Models


      Cutting-Edge Design. The J&L V3.0 Black Oil Separator; Driver Side is manufactured to minimize your vehicle’s oil via the intake track and blow-by. Guaranteed to cut out those nasty vapors, this product’s tank will hold up to 3 ounces of fluid. In addition, a handy delete kit for factory sound tube is included with this oil separator.

      Built to Perform. Crafted from a heavy-duty billet aluminum construction, this design also features an aluminum honeycomb filter with a fine mesh screen. Featuring a corrosion-resistant black anodized finish, you won’t have to worry about unwanted deterioration.

      Installation. This easy, bolt-on install can be completed in approximately 1 hour. For install conveniences, this product comes with plug-and-play OEM hoses for successful completion. Common garage tools are required.

      Warranty. Any flaw or imperfection found in this product as a result of defective manufacturing will be covered in full with a 1-year limited warranty.

      Application. The J&L V3.0 Black Oil Separator; Driver Side is manufactured to be a perfect fit for all 2016-2023 3.5L Toyota Tacoma models.



      J&L 3104D-B

      CA Residents: WARNING: Cancer and Reproductive Harm -

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) J&L Oil Separator
      • (1) Angled Mounting Bracket
      • (2) Fine Thread Machine Screws
      • (1) Firewall Plug
      • (1) Sound Tube Cap
      • (2) Nuts
      • (1) Bolt

      Customer Reviews (77)

        Questions & Answers

        10 More Questions

        Will It Fit My Tacoma

        • 2.7L I4 - 23
        • 3.5L V6 - 16, 17, 18, 19, 20, 21, 22, 23
