(approx) 1 Hour
Simple installation for anyone.
$176.74 (pair)FREE Shipping
Saved - View your saved items
We're sorry. We couldn't save this product at this time.

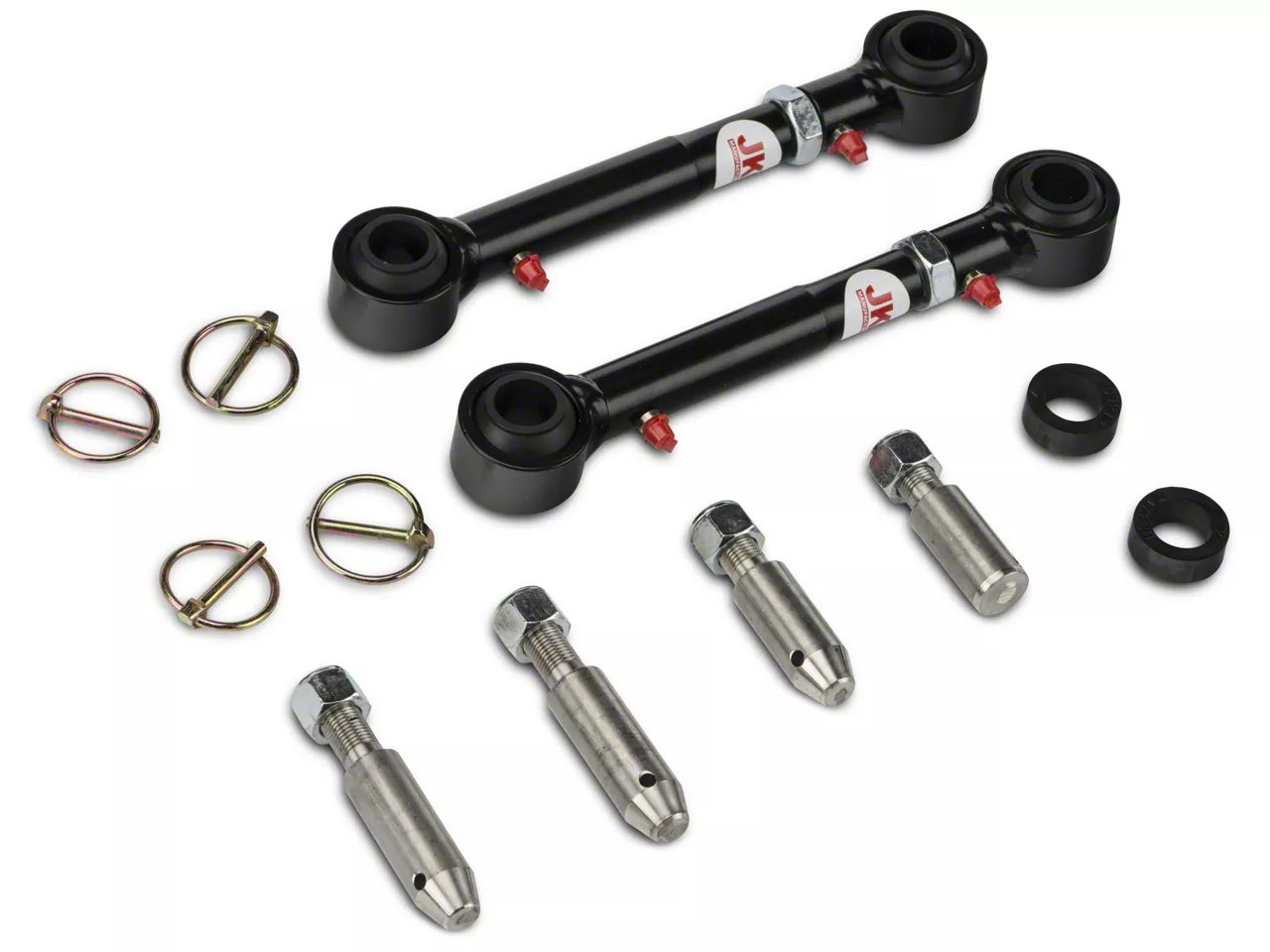

This JKS front swaybar quicker disconnect system is for those of you that have two and a half to six inches of lift on your 2007 to 2018 JK that are looking for an easy to use quick disconnect system that's going to give your suspension the maximum ability off-road. Disconnecting your swaybars is a great way to get maximum articulation, keep more tires on the ground at the same time, get more traction and having a quick disconnect system is going to make that a lot quicker and easier. We're gonna show you how to get this system installed. It's a very simple one out of three wrenches and we'll show you how in just a second.So you can certainly disconnect your factory swaybars if you still have them installed. You can disconnect a set of longer swaybar end links that may have come with your lift kit even if they're not a quick disconnect setup but you need to get some tools involved and it can be a little bit more difficult and time-consuming because of it. Having a system like this, there are going to be a series of pins that hold the swaybar end link between the swaybar and the mount on the axle. You pull the pins, you pull the entire end link out and then strap your swaybar up out of the way and you're good to go off-road a lot quicker. Now there are some systems out there that don't have two pins. They have one pin usually down on the axle side here. You don't disconnect the swaybar end link completely, it stays connected to the swaybar and you swing it up out of the way and you can store it up in pretty much the front of the fender area here where it's not going to get bound up or twisted up in the suspension. Those are just some other options out there. If you don't like this option where you actually have to take the whole end link out, put it inside your vehicle, throw it in the glove box, in center console, in your recovery bag wherever, there are some others where this stays connected to the swaybar, that's up to you.A couple things I do like about this system is that it is adjustable. So ultimately you want your swaybar to be parallel to the ground when your suspension is about halfway through its travel. So depending on how your suspension is set up if you have more down travel than up travel which is pretty normal, you want your swaybar to be at a little bit of an up angle when the Jeep is sitting on the ground under its own weight. The adjustability of this end link allows you to do that because let's face it even if you have two and a half inches of lift that doesn't mean the front of your Jeep is going to be the same height as somebody else who has two and a half inches of lift. If you have a heavy front bumper, a winch, something like that it can change those heights and this being adjustable allows you to dial it in exactly where you want it. The other thing I like about this is it has two grease fittings on it. So if you keep it greased you're going to be able to adjust this and you're going to be able to keep it working for you for a good long time. You don't want these bushings wearing out. That can give you a little bit of chatter and also a little bit of additional body roll. So this is going to help to avoid that.So overall this is going to be a really high-quality system, really well-built piece by JKS. That's what we expect from a company like JKS. Because it is a bit of a premium product you also are going to pay a premium price. These are going to come in at right around $170 and that is for what you're seeing here. So the pins and the swaybar end links. If you also want the straps to keep your swaybar up out of the way that's going to be a little bit of an additional charge. However, you don't need to make that purchase. You can just use something like some zip ties or bungee cords or whatever you want to keep the swaybar up out of the way. I mentioned before that this is gonna be a pretty easy installation for you, one out of three wrenches. Let's show you how to do it.For this installation, we used a couple of sockets, an 18 and 19-millimeter deep well driven by a 3/8 electric and pneumatic impact. We also used an 18 and 19-millimeter wrench and our Philips head screwdriver. So like I said before this is gonna be a very easy one out of three wrenches for the installation. We're gonna start with uninstalling our factory swaybar end link and that process is very, very simple. Now we have our Jeep up on the lift here. That's really just to make it easier for me to get in there and for you to see what we're doing. However, you can very easily do this with the Jeep on the ground with all the tires on. These are very easy bolts to get to. So all we're going to do is remove this lower bolt and this upper nut right here and get the swaybar end link out of the way.So for the top of the end link, we're gonna be removing this nut on this side but there actually isn't a bolt to remove. This is a tie rod end style joint at the top of the factory swaybar end link. So we have a 19-millimeter wrench, we're actually gonna go ahead and hold the stud. They put a little bit of a flat spot on there for us so we can get a wrench on that. Otherwise when you spin this the ball inside that tie rod end joint can just spin and you'll never actually get it loose. If you need to if this isn't working for you there's also an Allen head recess inside the end of the stud so what you can do is put a wrench on the nut, put a Allen key through here and hold onto it, so that's just another way of holding the stud. This way works a little bit better in my opinion so that's what we're gonna do.So once you have that factory end link removed from the Jeep you can go ahead and install your new JKS one and it installs with a couple of quick disconnect pins, one on the top and one on the bottom. So we're gonna slide the top pin into place here, get the nuts started on there, then we're gonna use the small Phillips head screw driver in this hole here and that's how we're gonna keep that from spinning as we tighten down the nut on the other side. Now we can install the pin on the bottom and it's gonna install in the same way. Put it through the axle side mount, get our nut started on there. Slide the screwdriver through the hole and then tighten the nut down.The last step is to install the end link itself with these couple of quick disconnect pins. Now as you can see, this is an adjustable end link so you want to get it adjusted so that the swaybar is right around flat when your suspension is about halfway through its travel. Now because most suspension systems will have a little bit more down travel than up, you can usally set your swaybar just above parallel when the Jeep's sitting on the ground under its own weight. That's gonna be close enough. You don't have to do all the measurements and all the calculations to get this quite exact. But we went ahead and got our adjusted to where we think it should be, we tightened down the jam nut, now we'll get it installed. I'm gonna slide it over the top pin here first and use one of these retention pins to hold it in place, then we'll just slide the other part of the end link over the lower pin here and slide that retention pin into place the same way. That's all there is to it.In order to remove this swaybar end link, we'll pull the pin from the top and from the bottom, slide the end link off of the posts. Then we're going to return the pins back into the posts that way we don't lose them while we're off-road. You want to set the end link itself in the glove box or in the center console and you will need to strap your swaybar up out of the way using some tape, zip ties, or you can purchase a strap specifically built for that purpose from JKS. In order to reinstall the sway bar end link you'll unhook the swaybar however you had it hooked up in the frame area. We'll go ahead and pull both of the retention pins, one from the top and one from the bottom. Slide the end link over the tapered pins again, top and bottom and then we'll install our retention pins to make sure nothing can move while we're driving.So if you are looking for a high-quality adjustable set of quick disconnect swaybar end links for your JK I would recommend this option from JKS and you can find them right here at extremeterrain.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Fitment: 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 1 Hour
Simple installation for anyone.
What's in the Box
10 More Questions
