Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find LED Lights & Light Bars for your Wrangler

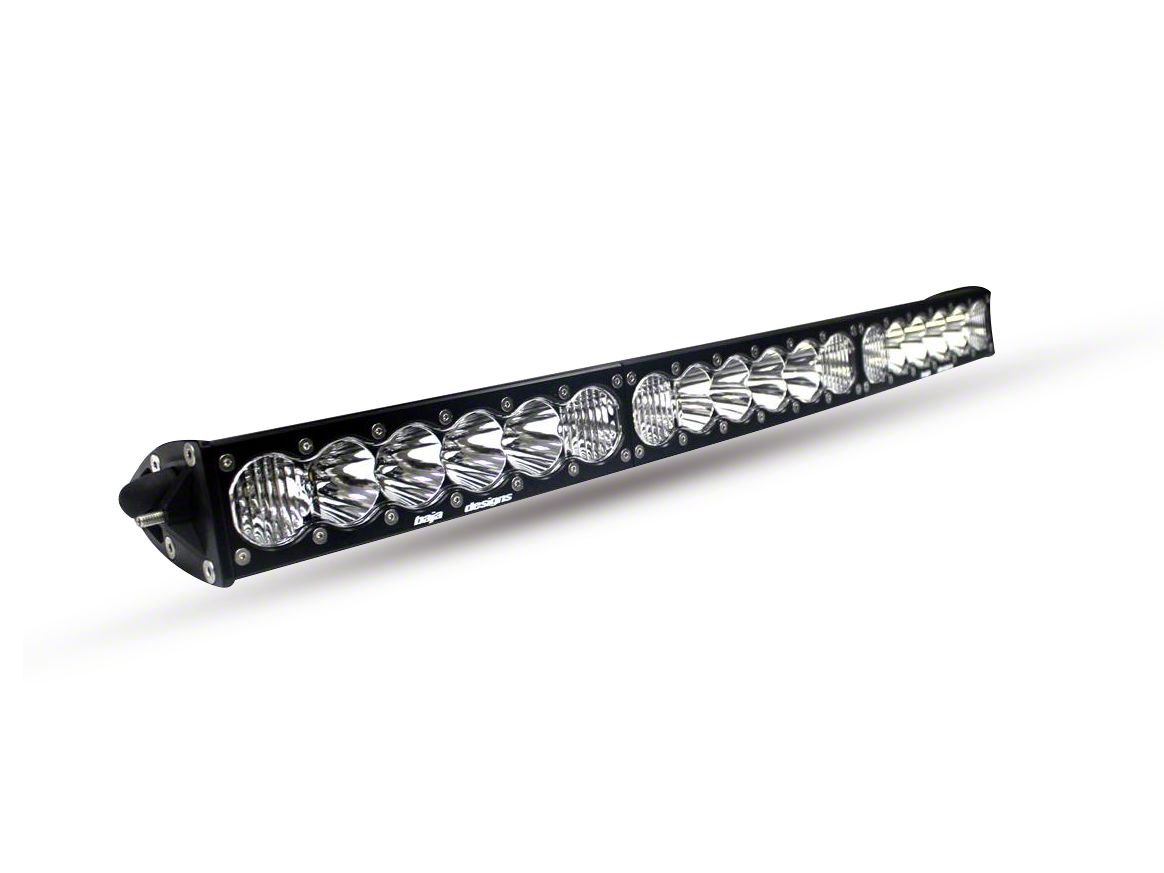

Baja Designs 30-Inch OnX6 Arc LED Light Bar; Driving/Combo Beam (Universal; Some Adaptation May Be Required)
Item J111658
Our Price
$1,338.95 each
Military, Medical & First Responders
$66.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Depth 4.29 Inches _x000D_
- Height 2.69 Inches _x000D_
- Length 30 Inches _x000D_
- Weight 11.45 Pounds _x000D_
- Amperage Rating 21.7 High, 17.1 Low _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Driving/Combo _x000D_
- Bezel Material Billet Machined Aluminum _x000D_
- Brightness 32,070 Lumens High, 25,610 Lumens Low _x000D_
- Description Arc, Driving/Combo, Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes High Beam and Low Beam _x000D_
- Lighting Quantity 18 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Description Mounting Brackets _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type OnX6+ 30 Inch Arc LED Light Bar _x000D_
- Wattage 278 Watts High, 222 Watts Low _x000D_
- Wiring Harness Description Hi-Low Dongle Required _x000D_
- Wiring Harness Included No _x000D_
- Durability Exceeds MIL-STD810G (Mil-Spec Testing) _x000D_
- Impact Resistance IK10 Compliant _x000D_
- Water Resistance IP69K Waterproof up to 9 Feet and Pressure Washable _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Light Bar Width | 30 to 39 Inch |
| Light Bar Shape | Curved |
Description
Premium LED Light Bar. The Baja Designs 30-Inch OnX6 Arc LED Light Bar; Driving/Combo Beam delivers exceptional illumination for off-road and utility vehicles, enhancing visibility and safety during nighttime driving and trail use. Its focused driving/combo beam pattern is designed to provide optimal forward illumination with peripheral coverage, making it a vital upgrade for serious automotive lighting enthusiasts.
_x000D__x000D_Construction and Appearance. Crafted from aircraft grade aluminum with a military-spec hard anodized finish, this LED light bar boasts a rugged, black housing designed for durability and resistance to harsh environments. The optic elements are protected with hardcoated polycarbonate lenses for impact resistance and clarity, while the billet machined aluminum bezel adds a refined, precision-machined aesthetic.
_x000D__x000D_Installation. Installation is straightforward with included stainless steel mounting brackets designed for secure attachment. The process typically requires no drilling, making it accessible for most technicians and enthusiasts.
_x000D__x000D_Warranty. This product features a limited lifetime warranty, ensuring long-term purchase protection and peace of mind.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required depending on vehicle setup. Wiring harness not included and Hi-Low dongle wiring harness is required for proper operation.
Baja Designs 523003
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Light Bar
- Installation Hardware
