Find Shocks & Struts for your Tacoma

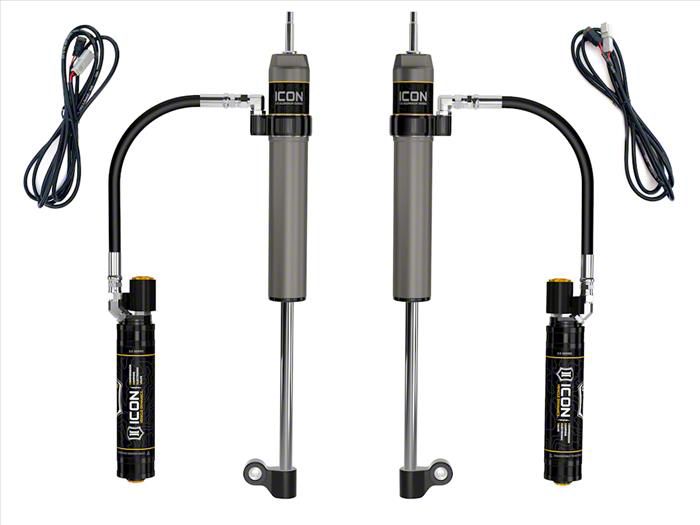

ICON Vehicle Dynamics RXT 2.5 Series Rear Remote Reservoir Shocks with CDEV (05-23 6-Lug Tacoma)Find parts that fit my vehicle

Item TT24197
Product Image
1 Reviews
Our Price

$1,899.95 pair

Military, Medical & First Responders $95.00 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • ICON Vehicle Specific 2.5 Aluminum Series Shocks with CDEV are designed and built to provide outstanding off-road performance and a smooth ride on the street.
      • Shocks are configured specifically for each application in length and damping tune for optimal performance.
      • Unique use of 6061 billet aluminum manifold creates an internal bump zone for additional damping force.
      • Bump zone provides 20% additional damping to prevent harsh bottom outs and control suspension compression at high velocity.
      • RXT rear shock features side-mount eyelet for shorter collapsed length and longer extension while fitting factory mounting location.
      • 100% rebuildable and revalveable shocks.
      • Compression Damping Electronic Valve (CDEV) provides electronically controlled variable oil flow to regulate damping force.
      • CDEV reacts in less than 40ms and makes precise adjustments for varying terrain.
      • CDEV hydraulic circuits are custom tailored per application for optimized dynamic range.
      • ICON Intelligent Control with proprietary mobile app uses G-force sensor and gyroscope data to adjust shock settings.
      • Internal bump zone increases damping by 20% as shock approaches full compression.
      • Hard anodized impact extruded aluminum cylinders for corrosion resistance and consistent finish.
      • Remote reservoir design enhances heat dissipation to reduce shock fade.
      • Premium grade 5WT shock oil for consistent damping across a wide temperature range.
      • Nitrogen charged monotube design with piggyback reservoir.
      • One-piece digressive piston with vehicle-specific valving for excellent performance and ride quality.
      • 7/8" diameter induction hardened chrome plated shock shaft.
      • PTFE lined spherical bearings and application-specific mounting hardware.
      • 6061 aircraft grade aluminum CNC machined components.
      • TECH NOTE: Multi-rate leaf springs required for installation.
      • TECH NOTE: Compatible with 0-2.625" rear lift provided by multi-rate leaf springs.
      • TECH NOTE: Requires installation of IIC kit and CDEV front coilovers.
      • TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models.
      • Fits 2005-2023 6-Lug Toyota Tacoma.

      Description

      Advanced Suspension Technology. The ICON Vehicle Dynamics RXT 2.5 Series Rear Remote Reservoir Shocks with CDEV deliver exceptional off-road performance while maintaining a comfortable ride on the street. These shocks utilize an electronically controlled compression damping valve that adapts rapidly to terrain changes for optimal suspension control and enhanced vehicle stability. This system combines precise tuning and real-time adjustments to ensure a smooth, controlled driving experience regardless of conditions.

      Construction and Appearance. Crafted from 6061 aircraft-grade aluminum with hard anodized, impact-extruded cylinders, these shocks are built for durability and corrosion resistance. The monotube nitrogen-charged design includes a piggyback remote reservoir with a billet aluminum manifold for improved heat dissipation and consistent damping. Precision CNC machining and a premium finish contribute to both the shock's strength and aesthetic appeal.

      Installation. Installation requires compatible multi-rate leaf springs and is moderate in difficulty. The shocks mount directly to factory locations with no drilling needed, but proper matching of components is necessary for optimal performance.

      Warranty. A comprehensive warranty period ensures product reliability and support.

      Application. Designed specifically for 2005-2023 6-Lug Toyota Tacoma models, excluding 2005-2015 2WD 5-Lug variants due to incompatibility with suspension setup and mounting requirements.

      ICON Vehicle Dynamics 57826EP

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (2) Reservoir Shocks

      5.0

      Customer Reviews (1)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Tacoma

      • 2.7L I4 - 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15
      • 4.0L V6 - 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15
