How to Install Green Filter Drop-In Replacement Air Filter (07-18 3.6L or 3.8L Jeep Wrangler JK) on your Jeep Wrangler
Shop Parts in this Guide
1. Locate the air filter box under the hood (Figure A).
Figure A
2. Unclip the furthest back clip on the front side of the box (Figure B).
Figure B
3. Unclip the two clips on the left side of the box (Figure C).
Figure C
4. Unclip the clip on the rear side of the box.
5. Loosen the clamp on the air filter box using a flathead screwdriver (Figure D).
Figure D
6. If having trouble with enough room to get to air filter, remove the two front bolts of the air filter box arm using a 10mm socket wrench (Figure E).
Figure E
7. Remove the air filter (Figure F).
Figure F

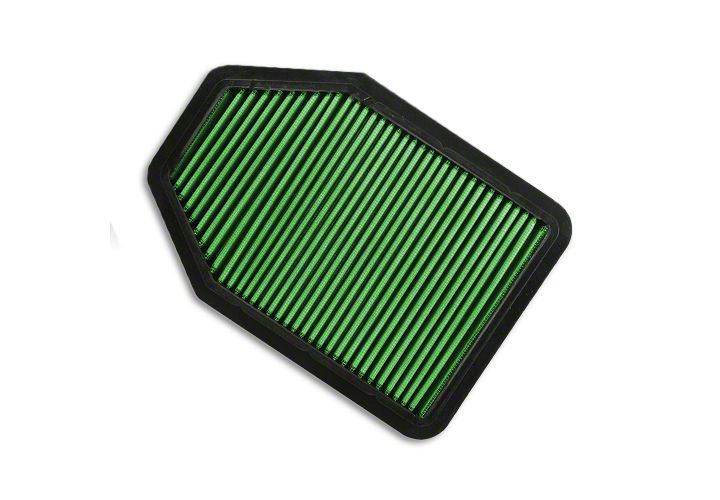

8. Replace with the Green Air Filter (Figure G).
Figure G
9. Return the two 10mm arm bolts if removed, retighten the clamp using a flathead screwdriver and return the four clips around the air filter box top.
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/10/2018
