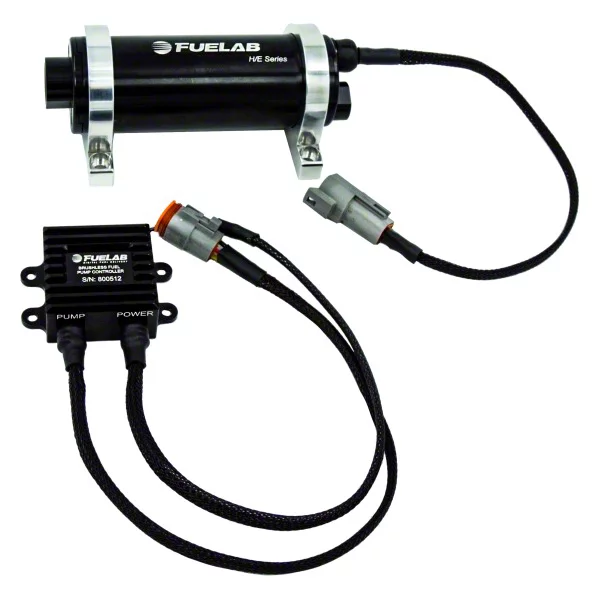

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)
Item TT74235
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In Line Fuel Pump, Rated Up To 1500HP, Street/Strip, Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 625 LPH At 45PSI, 125PSI Max Operating Pressure _x000D_
- 13.5V Operating Voltage _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 1500HP Power Support At Continuous Speed _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode (Low-Sulfur Diesel, No Problem) _x000D_
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact, Lightweight Design, Less Than 3 Lbs Overall Weight _x000D_
- Overall Length 7.13 Inches, Diameter 2.0 Inches _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625, Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH delivers exceptional fuel flow and pressure capable of supporting up to 1500 horsepower. Designed for street and strip applications, it ensures reliable fuel delivery with superior priming and vapor lock resistance. This pump is ideal for performance enthusiasts needing consistent, high-demand fuel supply.
_x000D__x000D_Construction and Appearance. Crafted from billet aluminum with a MIL-A-8625 Type II anodized finish, this pump combines durability with a sleek, compact design. Weighing less than 3 pounds, it features a robust twin screw rotor mechanism and fluorosilicone seals compatible with gasoline, diesel, methanol, and ethanol fuels.
_x000D__x000D_Installation. Installation is straightforward, requiring no major modifications. The pump includes billet aluminum mounting brackets and accepts standard -8AN fittings for easy integration into existing fuel systems.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty.
_x000D__x000D_Application. Fits universal; some adaptation may be required.
Fuelab 47414
