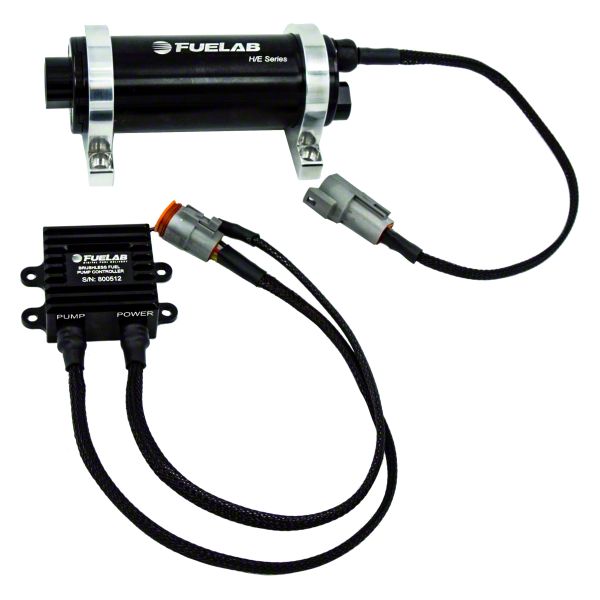

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)

Item TT74234
Product Image
1 Reviews of Fuelab
Our Price

$1,311.00

Military, Medical & First Responders $65.55 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • High Efficiency EFI In-Line Fuel Pump Rated Up To 1250Hp for Street and Strip Applications, Featuring Twin Screw DC Brushless Driven Mechanism
      • Limited Lifetime Warranty
      • 550 Lph @ 45Psi, 125Psi Max Operating Pressure, 13.5V Rated Up To 1250Hp
      • Compatible With Gasoline, Diesel, Methanol, and Ethanol Fuels
      • Twin Screw Rotor Pumping Mechanism
      • Higher Efficiency Resulting in Lower Current Draw and Reduced Noise
      • Superior Priming Capabilities
      • Greater Resistance to Cavitation and Vapor Lock
      • Lightweight, Super-Efficient DC Brushless Motor Minimizes Current Draw
      • Powerful High Flux Density Neodymium Rare Earth Magnets
      • No Motor Brushes to Wear Out or Corrode; Suitable for Low-Sulfur Diesel
      • Wet Motor Design Without Dynamic Shaft Seals That Can Wear Out
      • Compatible with 12 to 16 Volt Vehicle Electrical Systems
      • Model 72004 Pump Controller Included for Full Speed or PWM Input Speed Control
      • Continuous Duty Motor Speed
      • Compact, Lightweight Design Weighing Less Than 3 lbs; Overall Length 7.13", Diameter 2.0"
      • Billet Aluminum Construction with MIL-A-8625 Type II Anodized Finish
      • Includes Two Billet Aluminum Mounting Brackets
      • Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
      • Accepts Standard or Port Style -8AN Fittings
      • Fits Universal; Some Adaptation May Be Required

      Description

      High Performance EFI Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump (-8AN; 550 LPH) is designed to deliver up to 1250 horsepower for street or strip applications. It efficiently provides a fuel flow of 550 liters per hour at 45 PSI, ideal for high-demand engine setups requiring reliable and consistent fuel delivery.

      Construction and Appearance. This pump features billet aluminum construction with a MIL-A-8625 Type II anodized finish for enhanced durability and corrosion resistance. Its compact, lightweight design weighs less than 3 lbs and includes two billet aluminum mounting brackets. The pump uses long-life fluorosilicone static seals compatible with multiple fuel types.

      Installation. Installation is straightforward, typically requiring no drilling, using the included mounting brackets for secure fitting. Its compact size and standard -8AN port fittings ensure compatibility with most EFI systems, simplifying integration with existing fuel lines.

      Warranty. This fuel pump is backed by a limited lifetime warranty, ensuring long-term reliability and customer confidence. Application. Fits universal; some adaptation may be required to accommodate specific vehicle setups.

      Fuelab 47413
