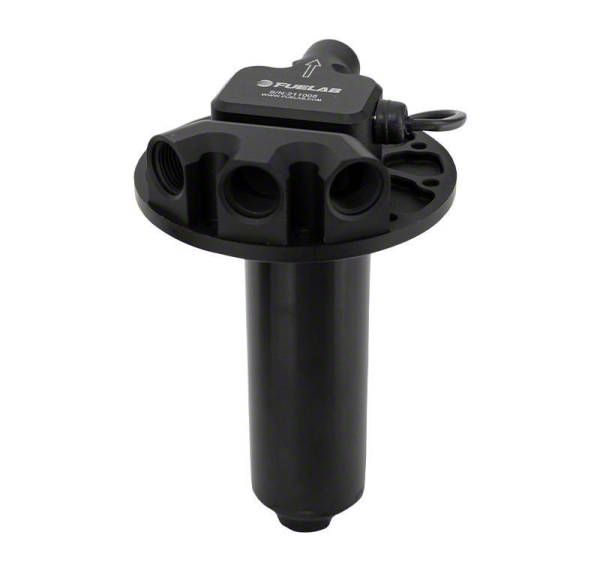

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1250 HP; 550 LPH (Universal; Some Adaptation May Be Required)

Item TT74296
Product Image
1 Reviews of Fuelab
Our Price

$1,364.00

Military, Medical & First Responders $68.20 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • 550 LPH @ 45 PSI, 125 PSI Max Operating Pressure
        • _x000D_
      • 13.5v Rated Up To 1250+ HP
        • _x000D_
      • Compatible With Gasoline, Diesel, Methanol, And Ethanol Fuels
        • _x000D_
      • Twin Screw Rotor Pumping Mechanism
        • _x000D_
      • High Efficiency For Reduced Current Draw And Noise
        • _x000D_
      • Superior Priming Capabilities
        • _x000D_
      • Greater Resistance To Cavitation (Vapor Lock)
        • _x000D_
      • Compatible With 12 To 16 Volt Vehicle Electrical Systems
        • _x000D_
      • Variable Duty Motor Speed
        • _x000D_
      • Lightweight, Super-Efficient DC Brushless Motor
        • _x000D_
      • High Flux Density Neodymium Rare Earth Magnets
        • _x000D_
      • No Motor Brushes To Wear Out Or Corrode
        • _x000D_
      • Wet Motor Design With No Dynamic Shaft Seals
        • _x000D_
      • Compact, Lightweight Design; Less Than 2.5 Lbs., Length 8”, Diameter 2”
        • _x000D_
      • Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
        • _x000D_
      • Flange Mounted SAE 10-Bolt Pattern For Easy Integration
        • _x000D_
      • Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
        • _x000D_
      • Accepts Standard Or Port Style -8AN Fittings
        • _x000D_
      • Compatible With PWM Outputs From 100Hz To 5000Hz
        • _x000D_
      • Universal Fit; Some Adaptation May Be Required
        • _x000D_

      Description

      HIGH-PERFORMANCE FUEL PUMP. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump, rated to support over 1250 horsepower, delivers up to 550 liters per hour at 45 PSI. Engineered for high-horsepower automotive fuel systems, this pump provides reliable priming, efficient current draw, and reduced noise through its advanced design.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Crafted from billet aluminum with a durable anodized finish per MIL-A-8625 Type II standards, this compact and lightweight unit measures 8 inches long and 2 inches in diameter. Its twin screw rotor pumping mechanism and fluorosilicone static seals ensure long-lasting performance and multi-fuel compatibility.

      _x000D__x000D_

      INSTALLATION. Featuring a flange mount with an SAE 10-bolt pattern, installation is simple and requires minimal modification. This design facilitates integration into fabricated reservoirs or fuel cells and accommodates a variety of setups efficiently.

      _x000D__x000D_

      WARRANTY. The pump comes with a limited lifetime warranty, assuring durability and customer support.

      _x000D__x000D_

      APPLICATION. Suitable for universal applications; some adaptation may be necessary.

      Fuelab 93903
