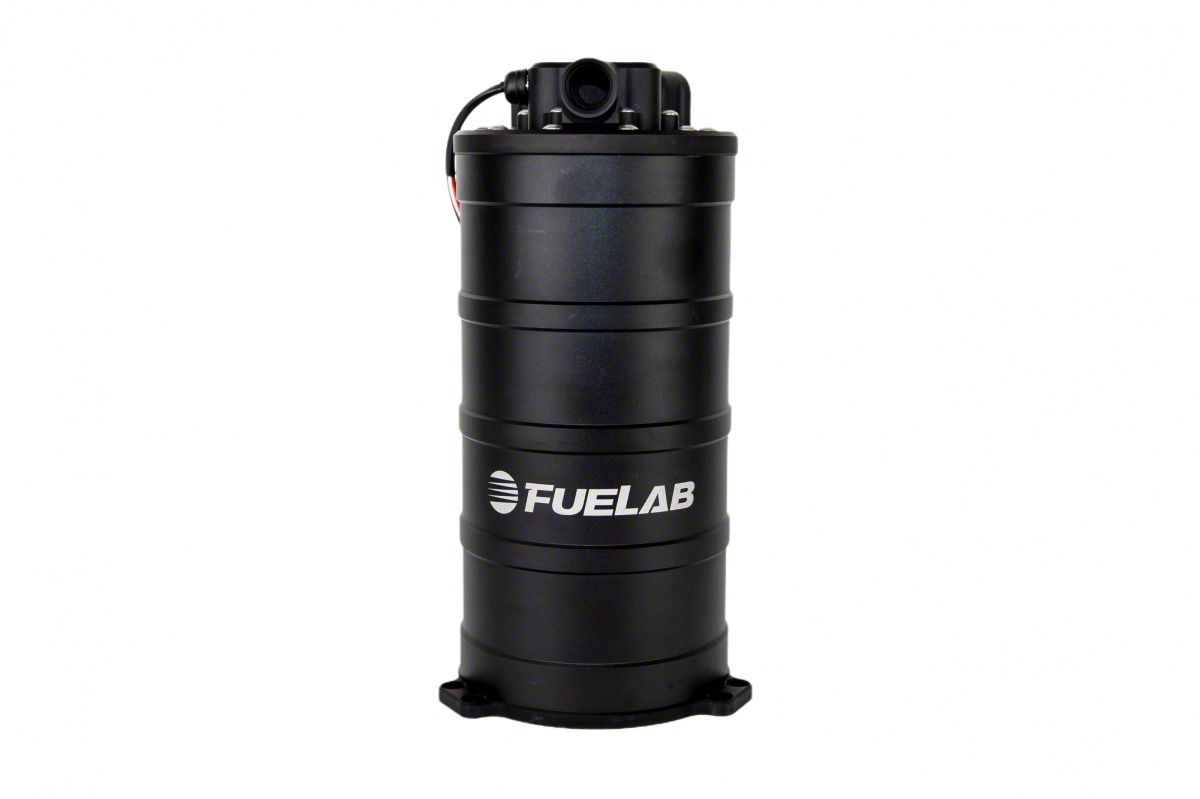

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)
Item TT74258
Our Price
$1,679.00
Military, Medical & First Responders
$83.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- H/E Series 290mm Tall Fuel Surge Tank System with 850 HP SAE Plate Mount Brushless Twin Screw Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 2.7L Fuel Surge Tank System with Speed Controllable, Twin Screw DC Brushless Fuel Pump, 400lph _x000D_
- Allows for High Fuel Flow Output with Minimal Modifications to the OE Fuel Tank and Module _x000D_
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel _x000D_
- 290mm Tall _x000D_
- FST Rated Volume: 2.7 L _x000D_
- Single Twin Screw DC Brushless Fuel Pump Included _x000D_
- Rated to Flow 400lph at 45psi, 125psi Max _x000D_
- Integrated Controller with PWM Speed Control _x000D_
- Billet Aluminum and O-Ring Construction Using -8AN Fuel Ports _x000D_
- Compatible with Pump Gasoline, Racing Gasoline, and E85 _x000D_
- Return Line Required; Returns Excess Fuel Back to the Vehicle Fuel Tank _x000D_
- Optional FST Upgrade Accessory Kits Sold Separately _x000D_
- Backed by a Limited Lifetime Warranty _x000D_
- Pulse Width Modulation (PWM) Compatible with Most Aftermarket ECUs Supporting PWM Output Frequency _x000D_
- Compatible from 100Hz to 5000Hz _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, rated for up to 850 HP, stands 290mm tall and is engineered to deliver consistent high-volume fuel flow for performance engines. This system minimizes fuel sloshing, ensuring a steady fuel supply during extreme driving conditions and helping maintain optimal fuel pressure to prevent lean running in high-demand scenarios.
_x000D__x000D_CONSTRUCTION AND DURABILITY. Constructed from billet aluminum with precision O-ring seals and using -8AN fuel ports, this robust surge tank integrates a twin screw DC brushless fuel pump rated for 400 liters per hour at 45 psi. The system includes an integrated PWM speed controller for smooth and controllable operation. It is compatible with pump gas, racing gasoline, and E85 for versatile use.
_x000D__x000D_INSTALLATION. Installation requires moderate mechanical skill and typically involves little to no modification to the existing fuel tank or module. The system is designed to connect with existing fuel return lines, simplifying setup without the need for complex alterations.
_x000D__x000D_WARRANTY. This fuel surge tank system is covered by a limited lifetime warranty, providing long-term protection and peace of mind for high-performance applications.
_x000D__x000D_APPLICATION. Designed to fit universally with some adaptation necessary to accommodate various vehicle fuel system configurations.
Fuelab 61712
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Tech Specs
