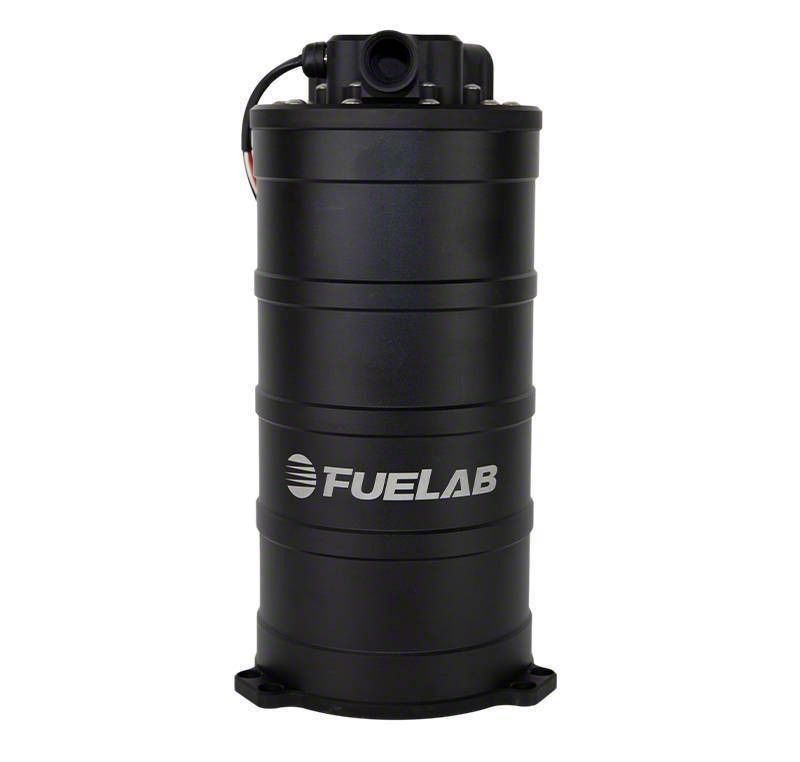

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item TT74259
Product Image
1 Reviews of Fuelab
Our Price

$1,784.00

Military, Medical & First Responders $89.20 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System with 1500 HP Brushless Twin Screw Pump and Speed Control
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Provides High Fuel Flow Output with Minimal Modifications to the OE Fuel Tank and Module
        • _x000D_
      • Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • Rated Volume: 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Flows up to 625 lph at 45 psi; Maximum Pressure 125 psi
        • _x000D_
      • Integrated Controller with PWM Speed Control Compatible with 100Hz to 5000Hz
        • _x000D_
      • Billet Aluminum Construction with O-Ring Seals and -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump Gasoline, Racing Gasoline, and E85
        • _x000D_
      • Return Line Required to Return Excess Fuel to Vehicle Fuel Tank
        • _x000D_
      • Optional Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Compatible with Most Aftermarket ECUs Featuring PWM Output Frequency from 100Hz to 5000Hz
        • _x000D_
      • Universal Fitment; Some Adaptation May Be Required
        • _x000D_

      Description

      Fuel Surge Tank System. The Fuelab H/E Series Fuel Surge Tank System with a Brushless Twin Screw Pump capable of 1500 HP and standing 290mm tall is engineered to deliver high fuel flow output while minimizing the need for modifications to the original equipment fuel tank and module. It effectively prevents fuel sloshing by maintaining a constant volume of readily available fuel, ensuring consistent delivery during demanding driving conditions.

      _x000D_

      Construction and Appearance. Crafted from billet aluminum with precision O-ring sealing, this surge tank includes -8AN fuel ports for secure and reliable connections. The compact 290mm height design is durable and suitable for use with pump gasoline, racing fuels, and E85. The professional finish offers both robust performance and an appealing look for performance vehicles.

      _x000D_

      Installation. Installation is straightforward, typically requiring no drilling or extensive modifications. The integrated controller simplifies wiring and enables easy integration with compatible aftermarket ECUs.

      _x000D_

      Warranty. Backed by a limited lifetime warranty, this fuel surge tank system offers long-term support and peace of mind.

      _x000D_

      Application. Designed to fit universal applications, though some adaptation may be necessary depending on the specific vehicle setup.
