Installation Time
(approx) 2 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Tacoma Sales Tech
1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Fabtech 6-Inch Performance Suspension Lift Kit with Dirt Logic Reservoir Coil-Overs and Reservoir Shocks (16-23 Tacoma)
Item TT2150
$0.00
Our Price
$5,161.85 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $6,038.99 You Save 15% ($877.14) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Performance Lift System
- Provides Up to 6-Inch Lift
- Helps to Improve Ground Clearance
- Includes ¼-Inch Thick Steel Skid Plate
- With Front Dirt Logic 2.50 Resi Coil-Overs
- Features Rear Dirt Logic 2.25 Resi Shocks
- With Heavy-Duty High Arched Crossmembers
- Includes Ductile Iron Steering Knuckles
- With Rear Block, U-Bolt Kit, and Add-A-Leaf Kit
- Professional Installation Recommended
- Includes Limited Lifetime Warranty
- Fits All 2016-2023 Toyota Tacoma Models
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Better Off-Road Capabilities. Especially designed to lift your Toyota Tacoma by up to 6 inches, this Fabtech 6-Inch Performance Lift System with Dirt Logic Reservoir Coil-Overs and Reservoir Shocks is the suspension upgrade you need. The lift offers improved ground clearance and accommodates larger tires. This way, your Tacoma would be able to handle extreme off-road terrains, while maintaining smooth and comfortable ride.
Robust Configuration. This performance lift system includes shocks and coil-overs that are developed for exceptional performance, especially in extreme off-road conditions. The kit includes the Dirt Logic 2.50 Coil-Overs, which are designed to provide an incredible dampening capacity to support aggressive off-road driving. Meanwhile, the Dirt Logic 2.25 shocks are built to replace factory shocks with a more robust and larger configuration. These are pre-tuned to account larger tires and provide great all-around damping.
Top-Notch Quality. When it comes to quality, there’s no doubt that Fabtech is an exemplary brand. As such, you can expect that this lift system is comprised of precision-machined components that are all manufactured from high-quality materials. In fact, this lift system includes ductile iron steering knuckles and spindles so the structure can bend without breaking. The skid plates and crossmembers are built using ¼-inch thick metal for guaranteed strength and protection against bumps and off-road hazards.
Professional Installation. Fabtech recommends that you get a professional to install this lift system for you. Although the components of this performance kit are designed for a direct-fit upgrade, the nature and complexities of the suspension make it hard for people without mechanical knowledge to install it correctly. Realignment is also recommended after the installation.
Limited Lifetime Warranty Coverage. This performance lift system is covered by a limited lifetime warranty from Fabtech. The warranty, however, shall be limited to the coverage of defects in materials and workmanship. It will not cover finish, alterations, modifications, or installation contrary to manufacturer’s instructions.
Application. This Fabtech 6-inch Performance Lift System with Dirt Logic Reservoir Coil-Overs and Reservoir Shocks is designed to fit any 2016-2023 Toyota Tacoma models.
Fitment:
- 2016 Toyota Tacoma
- 2017 Toyota Tacoma
- 2018 Toyota Tacoma
- 2019 Toyota Tacoma
- 2020 Toyota Tacoma
- 2021 Toyota Tacoma
- 2022 Toyota Tacoma
- 2023 Toyota Tacoma
Fabtech K7049DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

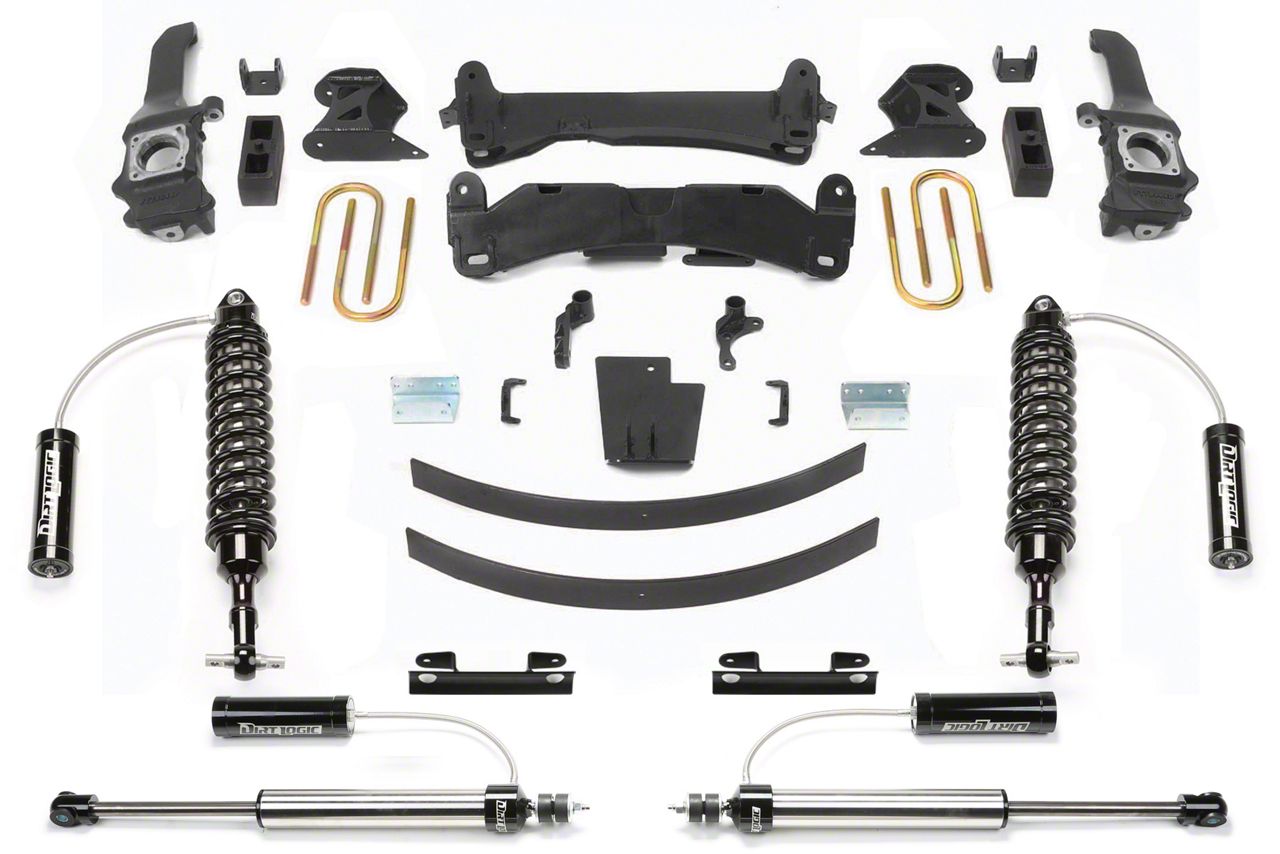

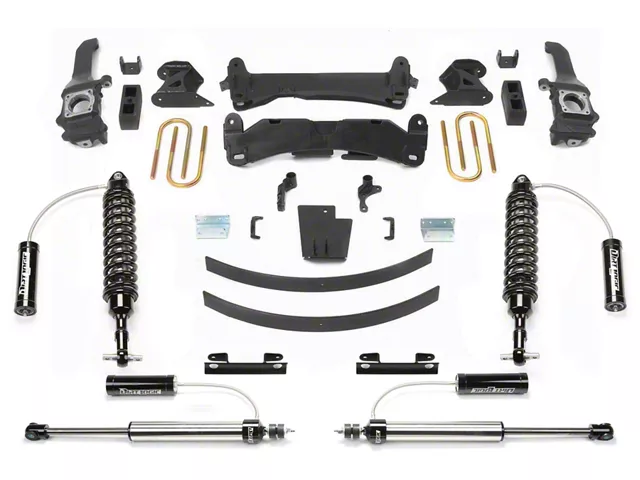

What's in the Box
- (2) Tie Rod Ends
- (2) Impact Tube Brackets
- (2) Impact Struts
- (2) Sway Bar Drops (Passenger and Driver)
- (2) Steering Knuckles (Passenger and Driver)
- (2) Rear Shock Extensions
- (2) Coil Spacers
- (4) U-Bolts
- (2) Add-A-Leafs
- (2) Crossmembers (Front and Rear)
- (2) Differential Mounts (Passenger and Driver)
- (2) Bump Stop Drops (Passenger and Driver)
- (1) Skid Plate
- (2) Carrier Bearing Drops
- (2) Crossmember Weld in Plate
- (2) Lift Blocks
- (1) Front Dirt Logic Coil-Overs Without Resi
- (1) Brake Line Hardware Subassembly Kit
- (1) Bushing Hardware Subassembly Kit
- Installation Hardware
- Installation Manual
