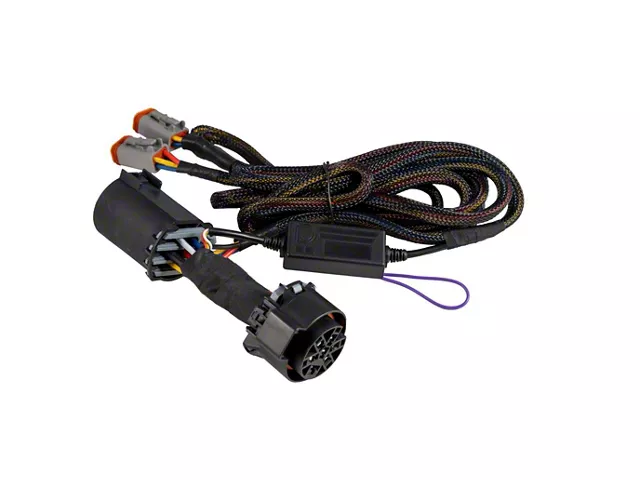

Diode Dynamics Stage Series C1R 7-pin Dual-Output Trailer Wiring Harness
Item FB20421
Our Price
$79.95 each
Military, Medical & First Responders
$4.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Powers Diode Dynamics C1R LED Pods
- High Capacity 10AWG Wiring
- Connects Directly To Trailer Hitch Wiring For Simple, Everyday Operation Of LED Pods
- Dual Deutsch DT Output Connectors
- Operating Voltage Range: 9V To 16V
- Wire Size: 10AWG
- Operating Temperature Range: -40°C To 85°C (-40°F To 185°F)
- Deutsch DT Input Connector
- Unit Weight: 0.68 Pounds
- Full Length Of Harness: 99.5 Inches
| Brand | Diode Dynamics |
| Towing Type | Wiring and Wiring Harnesses |
Description
Innovative Wiring Solution. The Diode Dynamics Stage Series C1R 7-pin Dual-Output Trailer Wiring Harness is designed to seamlessly power C1R LED pods by connecting directly to existing trailer hitch wiring. It enables convenient everyday operation of LED pods by integrating running, brake, and reverse light functions into one harness. This design enhances vehicle lighting functionality while maintaining simplicity and reliability.
Construction and Appearance. Crafted with high-capacity 10AWG wiring, this harness features durable materials engineered to withstand harsh operating temperatures from -40°C to 85°C. It utilizes Deutsch DT connectors for secure and reliable connections, ensuring long-lasting performance and ease of use. The harness is professionally assembled in the United States, reflecting high quality and attention to detail.
Installation. Installation is straightforward and designed to take between 10 to 20 minutes. No special tools or drilling are required, making the process accessible for both professional installers and DIY enthusiasts.
Warranty. This wiring harness comes with a 3-year replacement limited warranty, providing peace of mind through reliable coverage against defects.
Application. Fits vehicles equipped with a round 7-pin trailer connector that disconnects from the rear bumper. It works best with Diode Dynamics C1R and C2R LED pods for full lighting functionality including running, brake, reverse, and SafetyStrobe features.
Diode Dynamics DD4136
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Trailer Wiring Harness
- Mounting Hardware
- Instruction Manual
