Installation Time
(approx) 5 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a Wrangler Sales Tech
1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Clayton Off Road 5.50-Inch Pro Series 3-Link Long Arm Suspension Lift Kit with Rear 5-Inch Stretch (97-06 Jeep Wrangler TJ)
Item J176708
$0.00
Our Price
$4,229.00 (kit)
FREE Shipping Market Price $4,863.99 You Save 13% ($634.99) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Long Arm Suspension Lift Kit With 5.50-Inch Lift Height
- With 5-Inch Rear Stretch to Help Overcome Large Obstacles
- Enhances Stability, Handling, and Articulation
- Adjustable Control Arms and Track Bar Ensure Smooth Driving
- Improves Street and Off-Road Traction
- Includes Shock Conversion Kit, Coil Springs, and Coil Retainers
- Accommodates a Maximum Tire Size of 35 Inches
- Drilling and Welding Required for Installation
- Requires Custom Exhaust, SYE Kit, and CV-Style Driveshaft
- Needs a New Gas Tank, Longer Rear Driveshaft, and Hardline Extensions
- Made in the USA
- Limited Lifetime Manufacturer’s Warranty
- Fits All 1997-2006 Jeep Wrangler TJ Model
| Brand | Clayton Off Road |
| Lift Height | 5.50 Inch |
| Lift Kit Type | Long Arm Lift |
| Lift Kit Includes Shocks | Shocks Not Included |
Description
Unparalleled Street and Off-Road Performance. If you are looking to boost your Jeep Wrangler’s performance on the street and on rugged terrain, the Clayton Off-Road 5.5-Inch Long Arm Suspension Lift Kit with Rear 5-Inch Stretch is the product you’re looking for. You can conquer just about any off-road obstacle with this suspension lift kit, be it steep inclines or big rocks, thanks to the 5-inch rear stretch. Meanwhile, the 5.5-inch lift height provides a smoother drive even as the adjustable track bar enhances stability.
Conquer Obstacles, Increase Comfort. Not only will you have a smoother driving experience, but you will also have an easier time maneuvering up and over obstacles. You also don’t have to worry about wobbles, roll-overs, and other similar issues because this suspension lift kit is designed for enhanced stability and handling. And with its heavy-duty construction, you can rest assured that you will get the same level of performance no matter how abusive or harsh the driving conditions may be.
Enhanced Articulation and Traction. This Clayton Off-Road suspension kit has a four-link axle truss. This particular component is responsible for articulation, which is your vehicle’s capability to maintain traction and stability especially when on rough terrain. This makes it valuable for off-roaders who often take their Jeep Wranglers on harsher, more rugged trails.
Requires Drilling and Welding for Proper Installation. This suspension kit requires sufficient mechanical knowledge and drilling and welding equipment for proper installation. The entire kit can be fitted onto your Jeep Wrangler in about 3 to 5 hours.
Come With a Limited Lifetime Warranty. All Clayton Off-Road products, including this suspension lift kit, is covered by a lifetime workmanship and materials warranty. However, some conditions must be fulfilled before the warranty is granted. Please contact the manufacturer for more information.
Application. This Clayton Off-Road 5.5-Inch Long Arm Suspension Lift Kit with Rear 5-Inch Stretch can be installed on any 1997-2006 Jeep Wrangler TJ Model.
Application Note. This suspension kit is designed to accommodate tires of up to 35 inches diameter. For proper installation, your Jeep Wrangler needs a new gas tank, custom exhaust, hardline extensions, a longer rear driveshaft, a CV-style front driveshaft, and an SYE kit.
Fitment:
- 1997 Jeep Wrangler
- 1998 Jeep Wrangler
- 1999 Jeep Wrangler
- 2000 Jeep Wrangler
- 2001 Jeep Wrangler
- 2002 Jeep Wrangler
- 2003 Jeep Wrangler
- 2004 Jeep Wrangler
- 2005 Jeep Wrangler
- 2006 Jeep Wrangler
Clayton Off Road COR-3605110
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

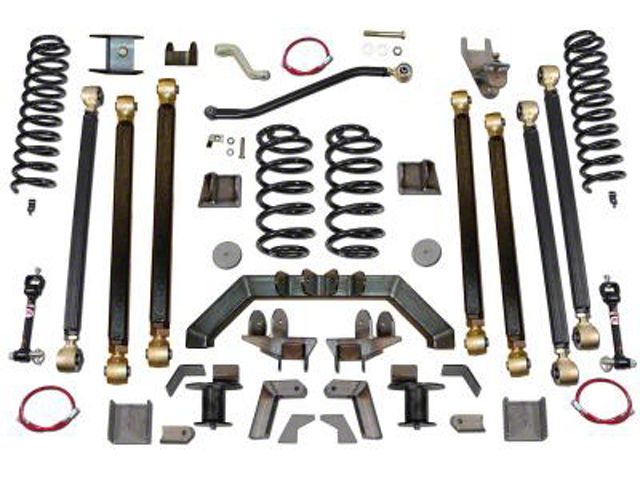

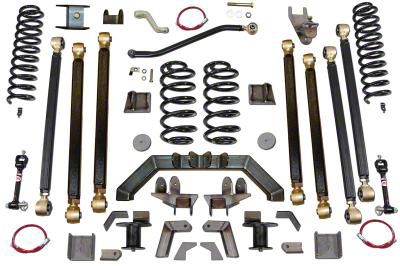

What's in the Box
- (4) Long Front Control Arms
- (4) Stretch Long Rear Control Arms
- (1) 4-Link Axle Truss
- (2) Front Frame Brackets
- (2) Rear Frame Brackets
- (1) 3-Link Frame Mount
- (1) 3-Link Axle Mount
- (2) Front Coil Springs
- (2) Rear Coil Springs
- (1) Adjustable Front Track Bar
- (2) Front Spring Retainers
- (2) Front Brake Lines
- (1) Rear Brake Line
- (1) Rear Coil Spring Retainer Kit
- (1) Drop Pitman Arm
- (1) Track Bar Drop Bracket
- (2) Quicker Disconnects
- (1) Rear Shock Conversion Kit
- (2) Stretch Rear Upper Spring Post
- (1) Rear Frame Notch Kit
- Installation Hardware
