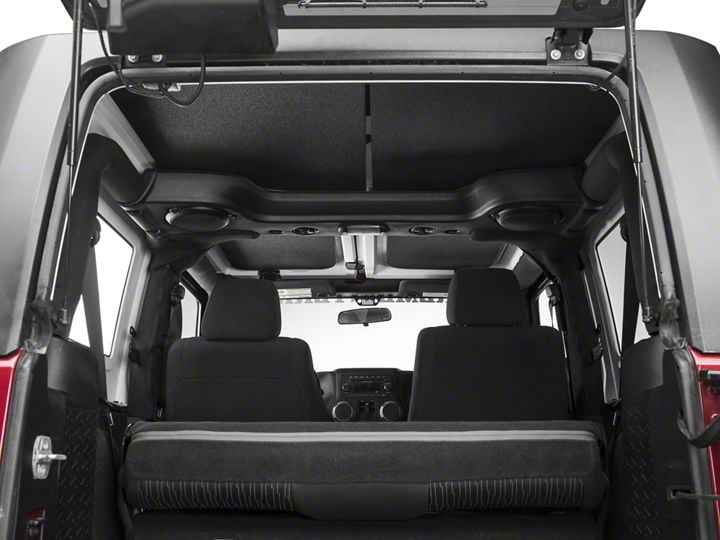

How to Install Boom Mat Sound Deadening Headliner - Black (11-17 Wrangler JK 2 Door) on your Jeep Wrangler

Installation Time

1 hours

Tools Required
  • Box Cutter/Knife
  • Isopropyl Alcohol
  • Paper Towels/Cloth
  • Towels/Blankets
Extreme Terrain
Shop Parts in this Guide

Installation Instructions:

1. Carefully open the package using a box cutter or knife (Figure A) and ensure all headliner and filler strips are included and undamaged.


2. Place the hardtop flat on the ground with blankets or towels underneath to keep from scratching (Figure B).


3. Clean the inside with isopropyl alcohol and cloth or paper towels (Figure C).


4. Peel back the liner on the underside of the filler strip (Figure D).


5. Place the filler strip inside the molded rib (Figure E).


6. Place the remaining filler strips inside the molded ribs, ensuring the lengths adhere to their placement inside the hard top (Figure F).


7. Place headliners in each side (with adhesive liner removed), starting at the rear of the hard top and carefully lining up to the front (Figure G). Note: Two people are recommended for this part of the process.


8. Pat the headliners down gently to ensure adhesive affixes along the entire hard top.

9. Follow Step 2-8 for both front top panels, as well.


Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 10/08/2017
