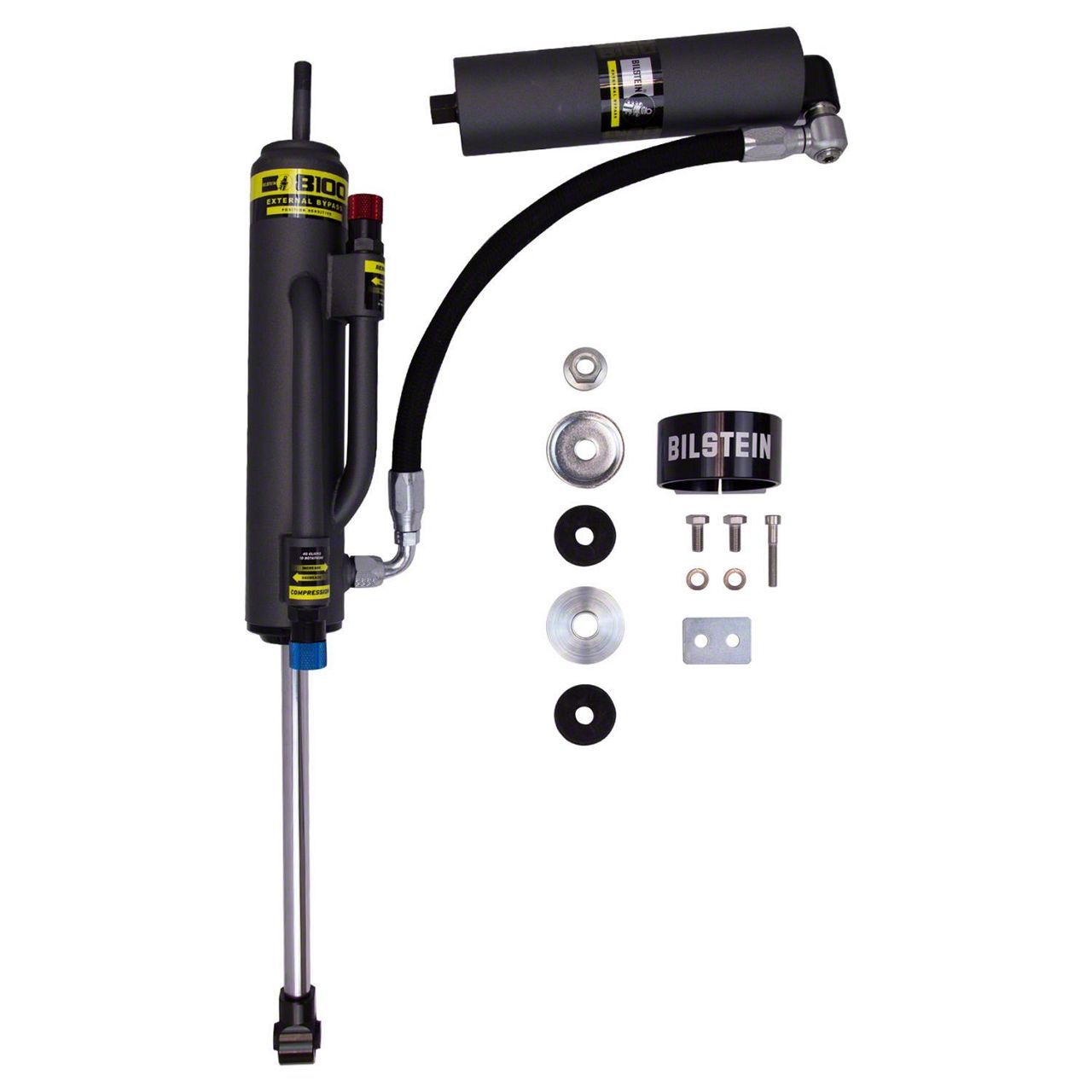

Bilstein B8 8100 Bypass Series Rear Shock for 0 to 1.50-Inch Lift; Driver Side (05-23 Tacoma)Find parts that fit my vehicle

Item TT28910
Coupon Added
Our Price

$1,285.90 each

Coupon
Apply 5% Discount
One coupon per order | Details
Military, Medical & First Responders $64.30 Available in XT Cash Rewards.
Confirm Eligibility

Item Options

    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Suspension Shock Absorber
      • Series B8 8100 Bypass
      • Weight 19.40 Lbs
      • Collapsed Length 14.25 Inches
      • Extended Length 23.94 Inches
      • Lower Mount Type Eye 12Mm
      • Upper Mount Type Stem
      • Internal Design Monotube
      • Finish Evo Grey
      • Reservoir Yes
      • Body Design Bypass Body Non-Coilover
      • Body Diameter 2.65 Inches
      • Piston Diameter 60Mm
      • Boot Included No
      • Spring Seat Included No
      • Shaft Diameter 18Mm
      • Adjustable Damping Double Adjustable Compression And Rebound With Click Adjuster Knobs
      • Country Of Origin Us
      • Quantity Per Vehicle 1
      • Warranty Limited 2-Year Warranty
      • Fits 05-23 Tacoma

      Description

      Advanced Suspension Solution. The Bilstein B8 8100 Bypass Series Rear Shock; Driver Side is designed to enhance ride quality and handling dynamics for light trucks and SUVs. It provides precise control over suspension movement with its double adjustable compression and rebound damping system, allowing users to tailor suspension performance and comfort.

      Construction and Appearance. Featuring a durable monotube internal design with a robust 18mm shaft and 60mm piston diameter, all finished in a corrosion-resistant EVO Grey coating. The shock includes a remote reservoir mounted with a bolt-on aluminum anodized chassis mount to ensure reliable heat dissipation and consistent damping performance.

      Installation. Installation is straightforward as the component is a direct fit designed to mount easily using the eye 12mm lower and stem upper mounts, facilitating a smooth upgrade without modifications.

      Warranty. This product carries a limited 2-year warranty providing assurance on build quality and reliability.

      Application. Engineered specifically to fit the 2005 through 2023 Toyota Tacoma, ensuring compatibility and optimized performance for this vehicle model.

      Bilstein 25-320442

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Rear Driver Side Shock
      • Installation Hardware
