Installation Time
(approx) 3 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
BDS 4-Inch Front / 3-Inch Rear Suspension Lift Kit with FOX 2.0 Performance Shocks (16-23 4WD Tacoma, Excluding TRD Pro)Find parts that fit my vehicle
Item TT21764
Our Price
$2,218.60 kit
Military, Medical & First Responders
$110.93 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 4-Inch Suspension Lift In The Front Using Cross-Member Design
- 3-Inch Suspension Lift In The Rear Using Heavy Duty Cast Steel Lift Blocks
- Complete Kit Includes FOX 2.0 IFP Performance Series Gas Shocks For Improved Ride Quality And Offroad Performance
- High Clearance ¼-Inch Thick Laser Cut Steel Crossmembers Maximize Ground Clearance
- Heavy Duty High-Arched Steel Crossmembers With Multipiece Differential Relocation Brackets For Improved CV Angles
- CNC Machined Ductile Iron Steering Knuckles Maintain Steering Geometry And ESC System Compatibility
- Robust Skid Plate System Provides Extensive Offroad Protection With Rigid Bolt-Together Subframe
- Included Sway Bar Drops, Bump Stop Extensions, Brake Line Brackets, And Lower Control Arm Cams Ensure Complete Suspension Geometry Correction
- Hardware And Components Included For Comprehensive Installation
- Designed To Accommodate Up To 33-Inch Tires With Appropriate Wheel Specifications
- Minor Welding And Frame Bracket Modification Required
- Does Not Fit TRD Pro Models
- Cannot Use Stock Wheels Or 17-Inch Wheels With This Kit
- System Is Compatible With 2WD PreRunner Models
- Fits 16-23 4WD Tacoma Excluding TRD Pro
| Brand | BDS |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Brand of Shocks | Fox |
| Shock Style | Non-Reservoir |
Description
Performance Suspension Lift. The BDS 4-Inch Front / 3-Inch Rear Suspension Lift Kit with FOX 2.0 Performance Shocks enhances the stance, offroad capability, and handling of the Toyota Tacoma 4WD models from 2016 through 2023. It provides improved ground clearance and suspension geometry for better on and offroad performance, allowing installation of larger tires up to 33 inches.
Construction and Appearance. This suspension lift kit features heavy duty ¼-inch thick laser cut steel crossmembers for maximum ground clearance and strength. CNC machined ductile iron steering knuckles and high-arched steel crossmembers contribute to robust durability and precise steering geometry. The FOX 2.0 shocks include a 2-inch impact extruded aluminum body with a clear anodized finish, delivering long-lasting corrosion resistance and performance-oriented valving.
Installation. Installation is moderately difficult and takes an estimated 12 hours to complete. The process requires minor welding and frame bracket modifications. Comprehensive hardware and components are included to ensure proper suspension geometry correction.
Warranty. This suspension lift kit includes a Factory Protection Plus drivetrain warranty for added peace of mind.
Application. Fits 16-23 4WD Tacoma excluding TRD Pro, with compatibility also extending to 2WD PreRunner models. It does not fit TRD Pro models and cannot be used with stock or 17-inch wheels.
BDS BDS822FS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

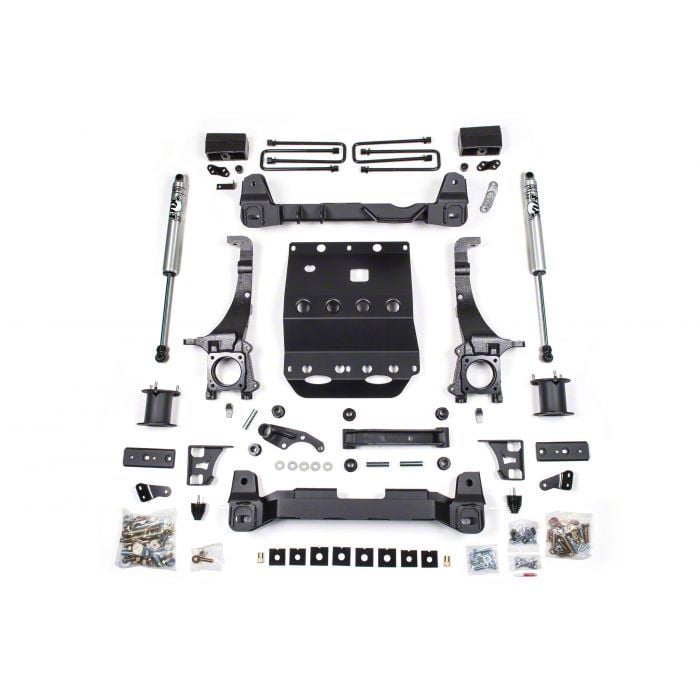

Installation & What's in the Box
Installation Info
What's in the Box
- (1) Coil-Overs Kit with Replacement Spindles
- (1) Rear Lift Block Kit
- (2) Fox 2.0 Shocks
4.8
Customer Reviews (8)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Tacoma
- 2.7L I4 - 16, 17, 18, 19, 20, 21, 22, 23
- 3.5L V6 - 16, 17, 18, 19, 20, 21, 22, 23
