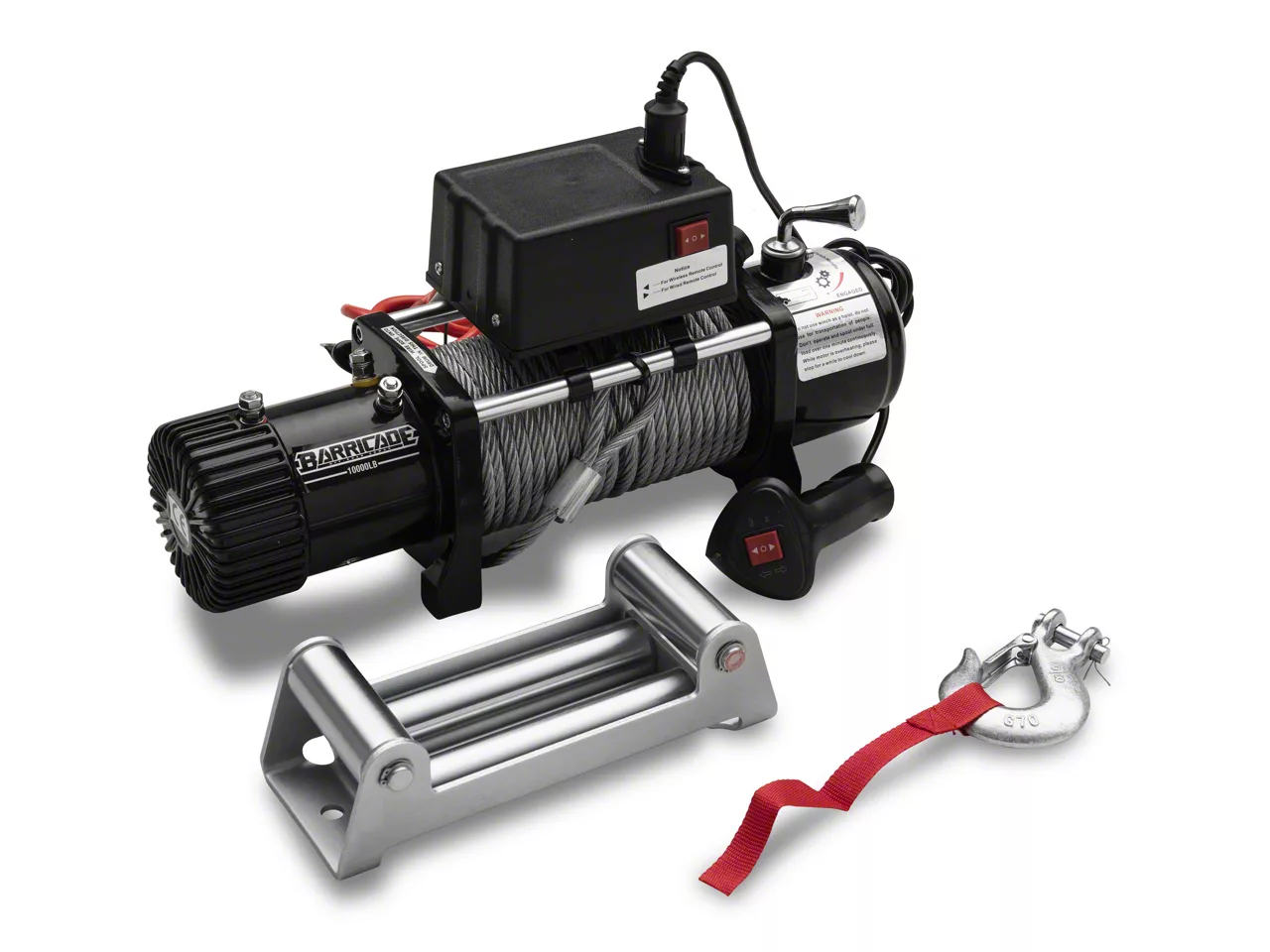

Barricade 10,000 lb. Winch with Wireless Control (Universal; Some Adaptation May Be Required)
Item U3147
$359.97
On Sale
-27% $359.97 kit Was $494.99
Military, Medical & First Responders
$36.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 10,000 lb. Single-Line Pulling Rating
- 5.5 HP 12-Volt Series Wound Electric Motor
- Three Stage Planetary Gear with 195.8:1 Gear Ratio
- 94 Foot, 2-1/64 Inch Steel Braided Cable
- Wired Remote Switch with 12 Foot Lead
- Wireless Remote Control Included
- Durable Black Powder Coat Finish
- Hook, Roller Fairlead, and Power Lead are Included
- Overall Dimensions: 21.1 × 6.3 × 8.6 Inches
- Mounting Bolt Pattern: 254mm X 114.3mm
- Weight: 79.85 Pounds
- Universal Application for all Vehicles
| Brand | Barricade |
| Winch Capacity | 10000 lbs |
| Winch Rope Type | Steel Cable |
| Winch Remote Type | Wireless |
Description
Be Prepared For a Recovery Situation. It doesn't matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your Wrangler with a reliable recovery system like Barricade Off-Road's 10,000 lb Winch. This Barricade Winch will help you to get out of the messiest situations.
Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 10,000 lb Winch features a 4-way roller fairlead that helps reduce wear and tear on the cable while keeping it from binding. This Barricade Winch includes both a wired remote control with a 12 foot lead and a wireless remote control allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 10,000lb Winch with Wireless Remote is designed for use on all Jeep CJ and Wrangler models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 10,000 lb Winch features a 4-way roller fairlead that helps reduce wear and tear on the cable while keeping it from binding. This Barricade Winch includes both a wired remote control with a 12 foot lead and a wireless remote control allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 10,000lb Winch with Wireless Remote is designed for use on all Jeep CJ and Wrangler models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 16.5 ft./min
- 2000 lbs. - 13.68 ft./min
- 4000 lbs. - 11.55 ft./min
- 6000 lbs. - 8.9 ft./min
- 9500 lbs. - 6.43 ft./min
Technical Note. To prevent damage to the cable from the elements a winch cover is highly recommended when not in use.
Barricade U3147
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Hexagon screw
- (1) Spring washer M5
- (1) Clutch handle
- (1) Nut cap
- (1) Cup gasket
- (1) Spring washer Φ20
- (2) O-ring
- (1) Gear box housing
- (1) Shaft sleeve
- (1) Sun gear
- (1) 3rd Planetary gear assy
- (1) Dual inner gear
- (1) 2nd Planetary gear assy
- (1) 1st Planetary gear assy
- (1) Sealing washer
- (4) Hexagon screw M8x25
- (4) Spring washer Φ8
- (1) Gear box bracket
- (10) Spring washer Φ4
- (10) Hexagon screw M4x20
- (2) Bearing bush
- (2) Sealing washer
- (1) Transmission shaft
- (1) Drum assembly
- (1) Brake assembly
- (2) Tie bar
- (1) Motor assembly
- (4) Cross Recess Head Screw M4.2X12
- (2) Mounting bracket assembly for control box
- (1) Control box assembly
- (1) Fairlead
- (1) 3/8” Hook
- (1) Wired remote control
- (1) Battery negative (-) cord 1.8M
- (1) Wireless remote control (Optional)
- (1) 0.75mm2 brown switch control wire
- (1) 0.75mm2 red switch control wire
- (1) 0.75mm2 yellow switch control wire
- (1) 0.75mm2 yellow remote control wire
- (1) 0.75mm2 white remote control wire
- (1) 0.75mm2 red remote control battery “+”
- (1) 0.75mm2 black remote control battery “-”
- (1) Green antenna
- (1) 0.4m short Black Cable with Yellow Terminal Sleeve
- (1) 1.8m long red battery cable “+”
- (1) 0.4m black motor cable with black sleeve
- (1) Black Cable with Black Sleeve (0.75mm x 0.45m; earth)
- (1) 0.4m Short Red Cable with Red Terminal Sleeve
- (1) Receiver for remote
- (1) U Type Strap-Aluminum
- (1) Solenoid 12V OR Solenoid 24V
- (1) Short red motor cable (~400mm) to motor red terminal
- (1) Short yellow motor cable (~400mm) to motor yellow terminal
- (1) Short black motor cable (~400mm) to motor black terminal
- (1) Short black battery/earth wire (~450mm) to battery negative
- (1) Long red battery cable 1.8m to battery positive
- (1) Long black battery cable 1.8m to battery negative
- (1) Remote control hand switch (wired) and optional wireless receiver & antenna
- (3) 3/8" UNC x 1-1/4" stainless steel bolts and spring washers for securing winch
