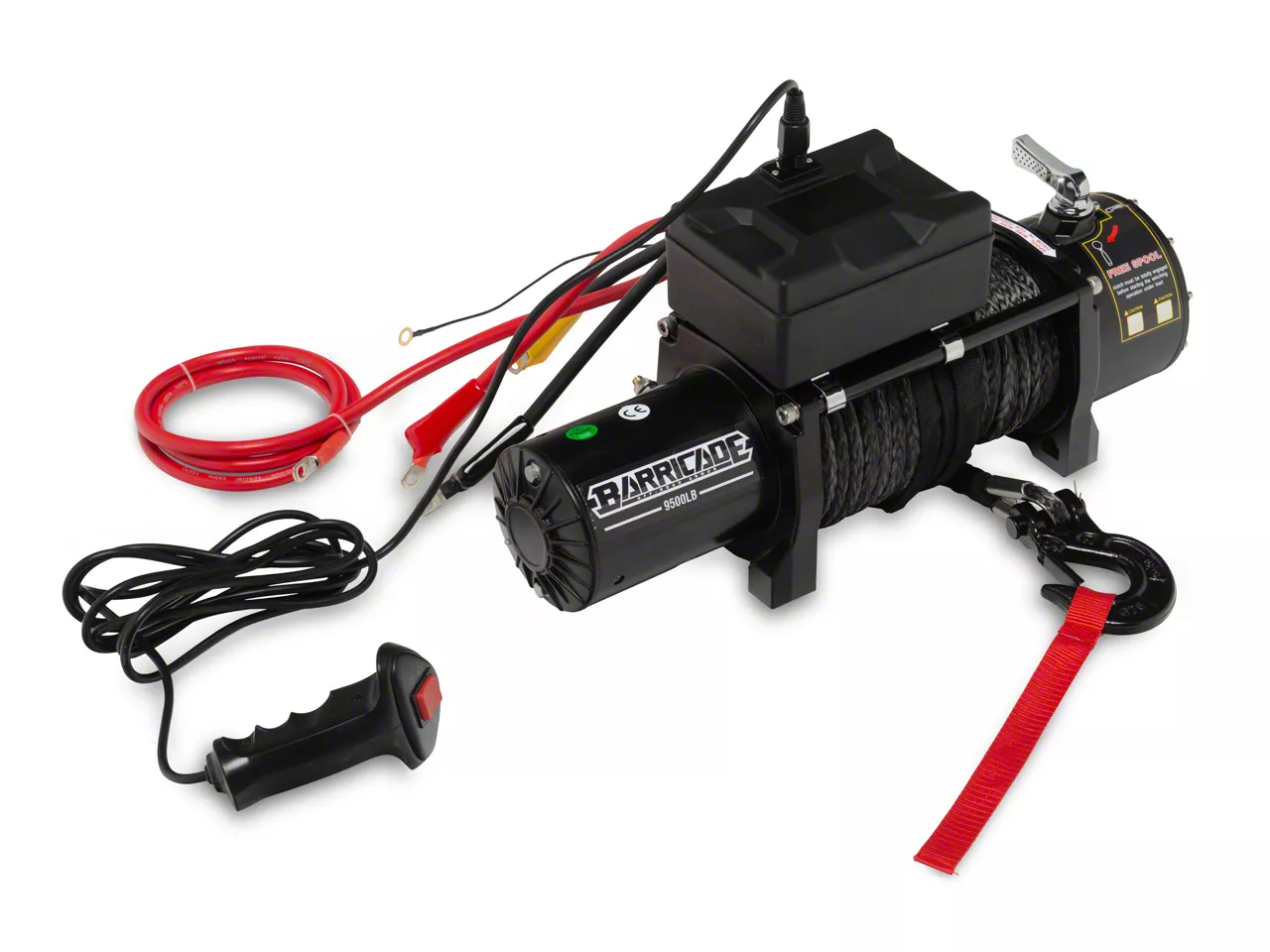

Barricade 9,500 lb. Winch with Black Synthetic Rope (Universal; Some Adaptation May Be Required)

Item JG35443
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features & Specs

    • 9,500 lb. Single-Line Pulling Rating
    • 5.5 HP 12-Volt Series Wound Electric Motor
    • Three Stage Planetary Gear with 218:1 Gear Ratio
    • 91 Foot Black Synthetic Rope Included
    • Wired Remote Switch with 12 Foot Lead
    • Durable Black Powder Coat Finish
    • Hawse Fairlead and Power Lead are Included
    • Overall Dimensions: 21.3 × 6.1 × 7.7 Inches
    • Mounting Bolt Pattern: 254mm X 114.3mm
    • Weight: 79 Pounds
    • Universal Application for all Vehicles

    Description

    Be Prepared For a Recovery Situation. It doesn't matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your rig with a reliable recovery system like Barricade Off-Road's 9,500 lb Winch that includes a Synthetic Rope. This Barricade Winch will help you to get out of the messiest situations.

    Heavy Duty 9,500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 218:1 gear ratio, this Barricade Winch provides 9,500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

    Additional Features. This Barricade Off-Road 9,500 lb Winch features a hawse fairlead that helps reduce wear and tear on the 91 foot black synthetic rope while keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.

    Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.3 × 6.1 × 7.7 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

    Application. This Barricade Off-Road 9,500lb Winch with Black Synthetic Rope features a universal design and will fit most makes and models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

    Line Pull Speeds
    • 0 lbs. - 25.6 ft./min
    • 2000 lbs. - 16 ft./min
    • 4000 lbs. - 11.9 ft./min
    • 6000 lbs. - 9.79 ft./min
    • 8000 lbs. - 8.2 ft./min.
    • 9500 lbs. - 7.2 ft./min

    Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, a winch cover is required when not in use.


    Barricade J210823

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

    Installation Info

    Installation Time

    (approx) 30 Minutes

    Difficulty Level:

    Simple installation for anyone.

    Installation Guides

    What's in the Box

    • 9,500lb winch
    • 91 foot Black Synthetic Rope
    • Hawse Fairlead
    • Remote Control Lead
    • Solenoid
    • Wiring Harness
    • Rope Hook
    • Red Line Flag
    • Hardware

    Warranty

    Barricade offers our valued customers the following Limited Warranty on all Barricade product purchased after September 1st, 2026. What is Covered Subject to the terms, exclusions and limitations herein, and with respect only to products first sold in the United States, Barricade warrants that its products shall be free of manufacturing defects for five (5) years and finish defects, including rust & corrosion, for three (3) years from the date of initial retail purchase when the Barricade product is installed and used on purchaser’s vehicle according to supplied product installation instructions and/or warnings. This Limited Warranty is made only with respect to the initial purchaser and is not transferrable. Barricade reserves the right to require proof of purchase as a condition of this Limited Warranty and to make future revisions to this product or its Limited Warranty without obligation to provide notice of same to purchaser or to conform existing product to future revisions. Any change to this warranty made after purchase may be applied retroactively at the sole discretion of Barricade.
