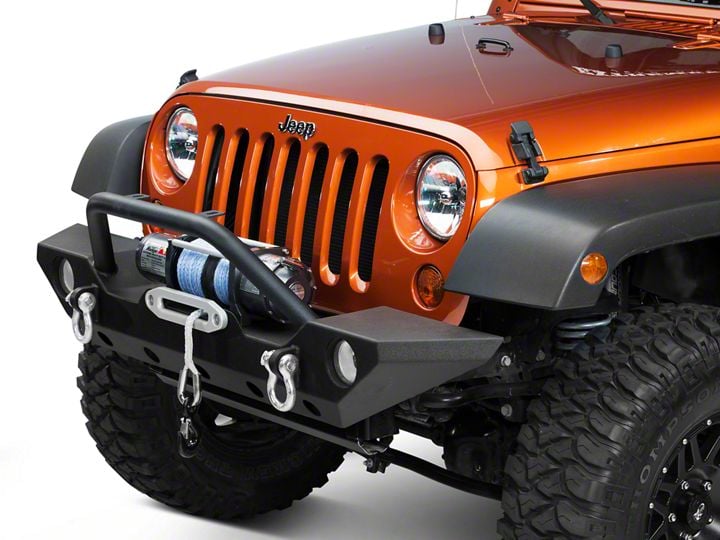

How to Install a Barricade Trail Force HD Front Bumper on your 2007-2017 Jeep Wrangler JK

Installation Time

2 hours

Tools Required
  • Flathead Screwdriver
  • Phillips Screwdriver
  • 15mm-19mm Wrench
  • 15mm-19mm Sockets
Extreme Terrain
Shop Parts in this Guide


STEP 1

Remove the 6 pins holding the splash guard onto the vehicle.


STEP 2

Next, unplug the factory fog lights and loosen the (8) 19mm nuts holding the front bumper to the support beam of the vehicle.


STEP 3

Remove the 2 push pins holding the top cover onto the vehicle


STEP 4

To remove the fog lights, loosen the 4 phillips screws on each light.


STEP 5

Reinstall the fog lights onto the new bumper by using the supplied bolt and screws to secure it into the housings.


STEP 6

Slide the bumper in place. Using the supplied washers and nuts, secure the bumper to the frame.


STEP 7

Route the fog light wiring above the frame rail and plug it back into the fog light housing.
