Find for your Tacoma
ARB Skid Plates (05-23 Tacoma)Find parts that fit my vehicle
Item TT5846
Our Price
$1,022.00 set of 4
Military, Medical & First Responders
$51.10 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Provides Reliable Underbody Protection
- Offers 4-Panel Protection
- Made of a 3 mm Laser Cut Sheet Steel
- Zinc-Plated and Comes in a Silver Powder-Coat Finish
- With Removable Mounting Bolts
- Direct Bolt-On Installation
- Supported by a 2-Year Warranty
- Engineered to Fit 2005-2023 Toyota Tacoma Models
Description

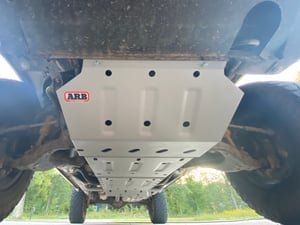

Underbody Protection. For a reliable underbody protection, make sure to install these ARB Skid Plates to your Tacoma. These skid plates offer a full, 4-panel protection, which covers your vehicle’s power steering, engine oil pan, transmission, and transfer case. So even if you’re up for a rowdy off-road ride, your truck’s underbody will remain intact and protected.
Durable Construction. For a long-lasting performance, these ARB Skid Plates are made of a 3 mm laser cut sheet steel. This is then pressed and folded to form a more durable panel. The panels are then zinc-plated and powder-coated with a silver finish to protect the material from rust and other corrosive elements.
Direct Bolt-On Installation. These skid plates offer a direct bolt-on installation. Using the supplied hardware, you can readily install these skid plates to your Tacoma’s chassis. Installation time can take you up to an hour or less if you know exactly where each panel should go.
Supported by a 2-Year Warranty. As a guarantee, ARB is providing this product with a 2-year warranty. To learn about the full warranty coverage, please visit the official ARB website.
Application. The ARB Skid Plates are engineered to fit 2005-2023 Toyota Tacoma models.
ARB 5423010
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Front Panel Weldment (Part No. 6523131)
- (2) Hex Bolt M8 x 1.25 x 25mm (Part No. 6151022)
- (2) Hex Bolt M8 x 1.25 x 35mm (Part No. 6151083)
- (4) M8 Spring Washer (Part No. 4581046)
- (4) M8 Flat Washer (Part No. 4581044)
- (1) 2nd Panel Weldment (Differential Panel) (Part No. 6523132)
- (3) Hex Bolt M8 x 1.25 x 25mm (Part No. 6151022)
- (2) Hex Bolt M8 x 1.25 x 35mm (Part No. 6151083)
- (5) M8 Spring Washer (Part No. 4581046)
- (5) M8 Flat Washer (Part No. 4581044)
- (1) 3rd Panel Weldment (Transmission Panel) (Part No. 6523133)
- (1) Crossmember Bracket (Part No. 3750015)
- (3) Hex Bolt M8 x 1.25 x 25mm (Part No. 6151022)
- (2) Hex Bolt M10 x 1.25 x 30mm (Part No. 6151040)
- (3) M8 Spring Washer (Part No. 4581046)
- (3) M8 Flat Washer (Part No. 4581044)
- (2) M10 Spring Washer (Part No. 4581048)
- (6) M10 Flat Washer (Part No. 4581040)
- (2) Hex Flange Nut M10 x 1.25 (Part No. 6151478)
- (1) 4th Panel Weldment (Transfer Case Panel) (Part No. 6523134)
- (7) Hex Bolt M8 x 1.25 x 25mm (Part No. 6151022)
- (7) M8 Spring Washer (Part No. 4581046)
- (7) M8 Flat Washer (Part No. 4581044)
- (4) Hex Flange Nut M8 x 1.25 (Part No. 6151132)
