How to Install Airaid Replacement Filter - Oiled on your Wrangler

Disconnect The Negative Battery Terminal!

1. Remove the engine cover and set it aside.

2. A.) Disconnect the air temp sensor in the factory intake. B.) Remove the two 6 mm bolts holding the intake tube to the fan Shroud. C.) Loosen the Clamps on both sides of the factory intake tube. D.) Unclip the coolant line from the intake tube and remove it from the vehicle.

3. Disconnect the crankcase breather line in the top of the airbox. Remove the entire airbox as an assembly by un-seating it from the mounting grommets in the inner fend-er and lifting upward.

4. Drill out the rivet heads on the factory airbox and re-move the air scoop. Remove any remaining rivet pieces from the air box and discard them.

5. Set the factory air scoop on a workbench and mark all four corners at the three inch mark using a scratch awl. Using a straight edge and the awl, scribe a line connecting all four corners.

6. Firmly place the air scoop into a bench vice and cut along the line created in step 3 using a hack saw or equivalent.

7. Re insert the modified air scoop into the air box and secure it using the # 8 Screws, Washers, and Nuts.

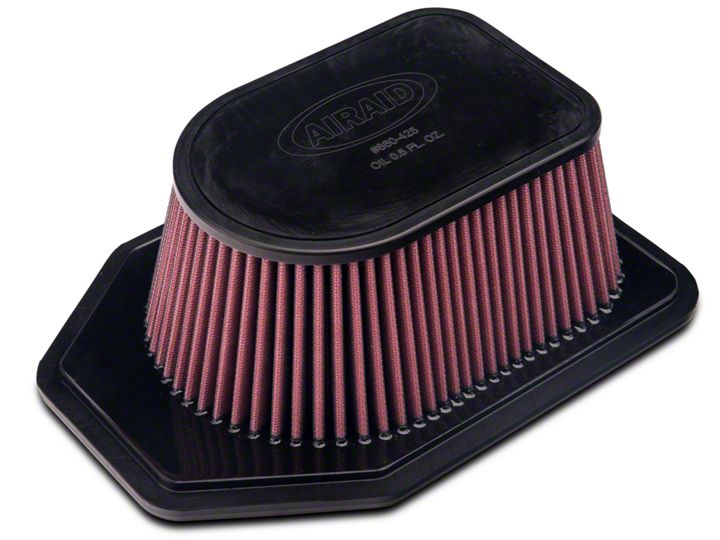

8. Install the Airaid Premium filter into the airbox and re assemble the intake system in the reverse order in which they were removed.
