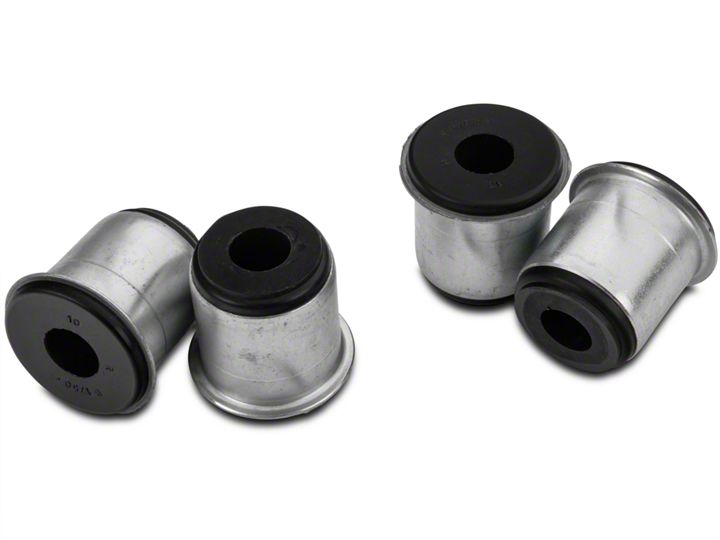

How to Install Whiteline Front Lower Control Arm Bushing Kit on your Wrangler
NOTE: PRESS TOOLS AND HYDRAULIC PRESS ARE REQUIRED TO FIT THESE BUSHINGS
1. Remove trailing arm from vehicle
2. Remove OE rubber bushings from trailing arm. A hydraulic press will be necessary for this operation. It is necessary to support between the bushing mounting flanges when pressing bushing out as shown in FIG.1, 2 and 3.
3. Once bushing mounting flanges are supported, place steel ring under arm (big enough to clear steel shell flange) and press on smaller diameter of bushing steel shell until bushing is removed from the arm.
INSTALLING REPLACEMENT BUSHINGS
1. Place bushing into arm. Support
bushing mounting flanges as per
FIG.4, 5 and 6.
2. Press new bushing into arm only
pressing on steel shell flange.
Ensure bushing steel flange is
flush with arm as per FIG.7.
3. Using grease supplied grease
internal bore of bushing and flanges
that contact steel clevis.
4. Push supplied steel crushtube into
bore of bushing and re-fit arm to
vehicle using manufacturers torque
settings.
N.B: It is recommended that a licenced workshop or tradesperson carry out the above procedure and that workshop manual and relevant safety procedures are followed in addition to the above.
