Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Viair Quarter Duty OnBoard Air System; 120 PSI (Universal; Some Adaptation May Be Required)
Item TT50490
Our Price
$301.95 kit
Military, Medical & First Responders
$15.10 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Quarter Duty Cycle Onboard Air System Suitable For Numerous Pneumatic Uses
- Maximum Working Pressure Of 120 PSI
- Not Designed For Inflating Automotive Tires
- Compatible With Air Horns And Other Pneumatic Accessories
- 25 Percent Duty Cycle At 100 PSI Allowing About 10 Minutes Continuous Operation
- Requires 30 Minutes Cool Down Between Use
- Supplies 2.03 CFM At 0 PSI
- 12-Volt Permanent Magnetic Motor
- Maximum Amp Draw Of 18 Amps
- Ingress Protection Rating Of IP54
- Operating Temperature Range From Minus 40 To Plus 158 Degrees Fahrenheit
- Includes 2.0 Gallon Air Tank
- 275C Oil-Less Compressor With Thermal Overload Protector
- Equipped With Pressure Switch, 40-Amp Relay, 145 PSI Safety Valve, Drain Cock, And Compression Fittings
- Comes With 20 Feet Of 16 Gauge Wire With Inline Fuse Holder
- Includes Accessory Airline And Electrical Connections
- Use Thread Sealant For Installation; Thread Tape Not Recommended;
- Recommended Torque: 10-11 Ft. Lbs. For 1/8 Inch, 16-18 Ft. Lbs. For 1/4 And 3/8 Inch
- Fits Universal; Some Adaptation May Be Required
Description
Compact Air Supply. The Viair Quarter Duty OnBoard Air System, rated for 120 PSI, provides reliable compressed air for various pneumatic needs, excluding automotive tire inflation. Ideal for air horns and small inflation tasks, this onboard system ensures efficient operation with a 25% duty cycle allowing about 10 minutes of continuous use followed by a cooling period.
Construction and Appearance. Featuring a durable 2.0-gallon air tank paired with a 275C oil-less compressor equipped with a thermal overload protector, the system is built to last. The components are finished with quality materials optimized for temperature resilience and protection against environmental elements, including an IP54 ingress protection rating.
Installation. Installation requires some mechanical knowledge and uses the included fittings and wiring harness with inline fuse holder for straightforward connection. Thread sealant should be used during installation instead of thread tape. Recommended torque values are 10-11 ft. lbs. for 1/8 inch and 16-18 ft. lbs. for 1/4 and 3/8 inch fittings.
Warranty. This product is supported by a warranty ensuring manufacturing quality and performance.
Application. Fits Universal; Some Adaptation May Be Required.
Viair 10002
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

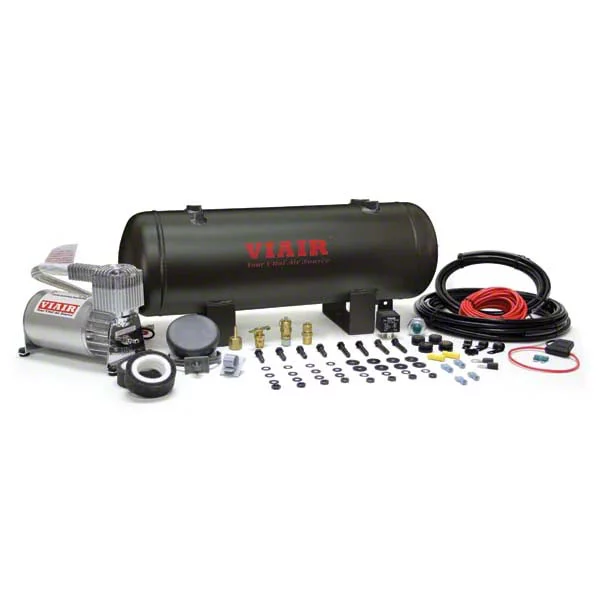

What's in the Box
- (1) 2.0 Gallon VIAIR Air Tank
- (1) 275C VIAIR Compressors
- (1) 0.25 in. NPT 145 PSI Safety Valve
- Pressure Switch (90 PSI on, 120 PSI off)
- (1) 40-amp Relays
- 20 ft. 16-Gauge Wire with Inline Fuse Holder
- (1) 0.25 in. Drain Cock
- (1) 0.25 in. Compression Fitting
- Accessory Airline
- Electrical Connections
- Instruction Manual
