Find Compressors & Onboard Air for your Wrangler

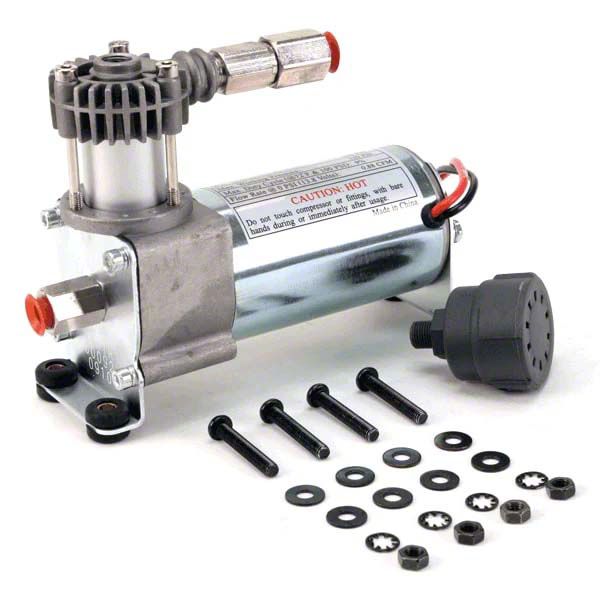

Viair 92C Air Compressor; 120 PSI / 1.03 CFM (Universal; Some Adaptation May Be Required)

Item J215365
Product Image
9 Reviews of Viair
Our Price

$115.95

Military, Medical & First Responders $5.80 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Light Duty Air Compressor For Smaller Pneumatic Requirements
      • Designed To Fill No Larger Than A 1 Gallon Tank
      • Features Removable Air Filter
      • Includes Check Valve
      • Comes With Mounting Hardware
      • ISO 9001 Quality Standard
      • Compatible With 12V & 24V Systems
      • Oil-less & Direct-Drive Design
      • Unmatched Testing Aiming For 0% Failure Rate
      • Cfm: 1.03 @ 0 Psi
      • 12-Volt Permanent Magnetic Motor
      • Duty Cycle: 9% @ 100 Psi
      • Max Working Pressure Of 120 Psi
      • Max Air Tank Size 1.0 Gallon
      • Max Amp Draw 10-Amps
      • Ingress Protection Rating Ip54
      • Max Ambient Temperature +158°F
      • Min Ambient Temperature -40°F
      • Dimensions: 7.6 L X 2.0 W X 4.6 H Inches
      • Net Weight 2.45 Pounds
      • In Rush Current 27.6 Amps At 0 Psi
      • Sound Level 62.1 Db At 0 Psi
      • Includes Vibration Isolators
      • Direct Mount Air Filter Assembly Included
      • Installation Instructions Included
      • Use Thread Sealant For Proper Installation; Thread Tape Not Recommended
      • Recommended Torque For 1/8": 10 ~ 11 Ft. Lbs.
      • Recommended Torque For 1/4" And 3/8": 16 ~ 18 Ft. Lbs.
      • Fits Universal; Some Adaptation May Be Required

      Description

      High-Performance Compressor. The Viair 92C Air Compressor; 120 PSI / 1.03 CFM is designed for light duty pneumatic applications requiring air pressure up to 120 PSI. It efficiently fills tanks up to 1 gallon in capacity, making it ideal for small air systems and various portable tools. This compact, reliable compressor delivers consistent performance for on-demand air supply.

      Construction and Appearance. The compressor features a durable oil-less, direct-drive permanent magnetic motor built to withstand harsh operating conditions. It carries an ingress protection rating of IP54, ensuring resistance to dust and water spray. Finished in a clean, industrial texture, it includes vibration isolators to reduce noise and wear.

      Installation. Installation is straightforward with included mounting hardware and a direct mount air filter assembly. Minor adaptations may be required, but no specialized tools or drilling are generally necessary for typical setups.

      Application. Fits universal; some adaptation may be required depending on your specific pneumatic system or installation environment.

      Viair 00092
