Find Light Switches, Wiring & Accessories for your Tacoma

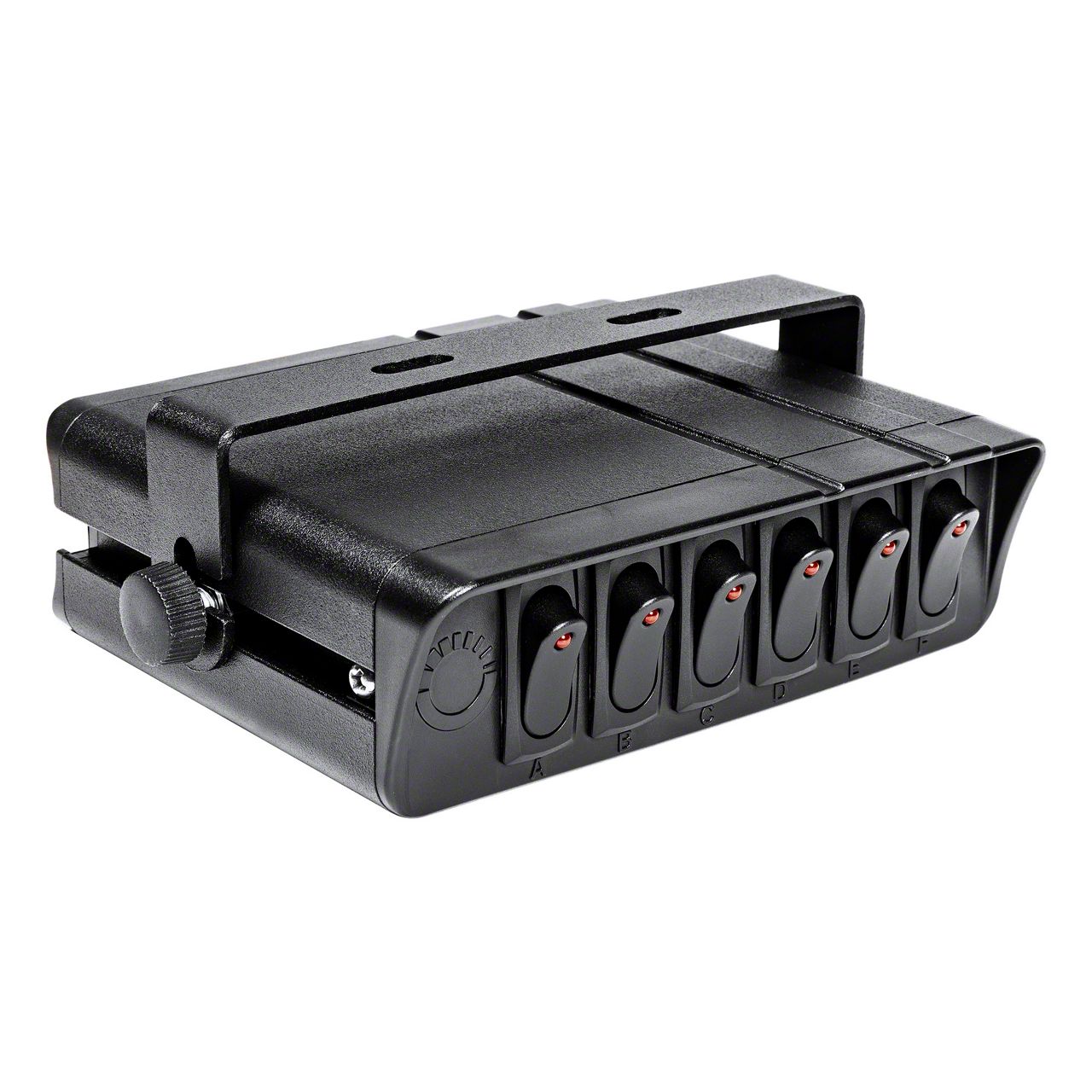

True Mods 6-Way SPST Switch Box; 40 Amp (Universal; Some Adaptation May Be Required)

Item TT73897
Product Image
Our Price

$47.99

Military, Medical & First Responders $2.40 Available in XT Cash Rewards.
Confirm Eligibility
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Max 15A Per Switch
      • _x000D_
      • Total Box Max 40A (2 x 20A Circuits)
      • _x000D_
      • Thick Gauge Color-Coded Wires
      • _x000D_
      • Durable Aluminum Housing
      • _x000D_
      • Low Profile Mounting Bracket
      • _x000D_
      • 1 Year Warranty
      • _x000D_
      • IP50 Rating
      • _x000D_
      • Red Light Color
      • _x000D_
      • Connector Type Pigtail
      • _x000D_
      • Bracket Mount
      • _x000D_
      • Mounting Hardware Fasteners Included
      • _x000D_
      • Operating Temperature -20°C To +85°C
      • _x000D_
      • Waterproof Yes*
      • _x000D_
      • Length 5.38 Inches
      • _x000D_
      • Width 6.50 Inches
      • _x000D_
      • Height 1.63 Inches
      • _x000D_
      • Terminal Material Tinned Copper
      • _x000D_
      • Number Of Prongs 6
      • _x000D_
      • Throw Type Single
      • _x000D_
      • Terminal Type Wire Leads
      • _x000D_
      • Actuator Type Rocker
      • _x000D_
      • Actuator Material Nylon
      • _x000D_
      • Has Indicator Light Yes
      • _x000D_
      • Max Switching DC Voltage 12V DC
      • _x000D_
      • Dielectric Strength AC 1500V 1 Minute
      • _x000D_
      • Max Switching DC Amperage 40
      • _x000D_
      • Contact Resistance Less Than 50 Mohm
      • _x000D_
      • Insulation Resistance Greater Than 100 Mohm At 500V DC
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      Superior Switch Control. The True Mods 6-Way SPST Switch Box; 40 Amp is designed to provide reliable control for various aftermarket electrical accessories in vehicles. It allows the user to manage multiple 12V DC circuits efficiently with individual switches rated up to 15 amps each, supporting a total maximum of 40 amps. This switch box is ideal for operating diff lock compressors, lighting setups, or warning systems with ease and precision.

      _x000D__x000D_

      Construction and Appearance. Constructed with a durable aluminum housing, this switch box features thick gauge, color-coded wires for simple and error-free installation. The low profile mounting bracket adds to the sleek appearance while ensuring stability and easy mounting. The backlit switches with red indicators provide high visibility and a professional look.

      _x000D__x000D_

      Installation. Installation is straightforward thanks to the user-friendly design featuring one ground wire and one power wire per circuit. No advanced tools or drilling expertise are necessary, making the setup accessible to both professionals and enthusiasts.

      _x000D__x000D_

      Warranty. This switch box comes with a 1-year warranty, reflecting confidence in its durability and performance.

      _x000D__x000D_

      Application. Fits universal with some adaptation required, suitable for a wide range of vehicle configurations and aftermarket projects.

      True Mods ACCEPSSWH0082

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs

      Questions & Answers

      No questions about this product yet. Ask the First Question
