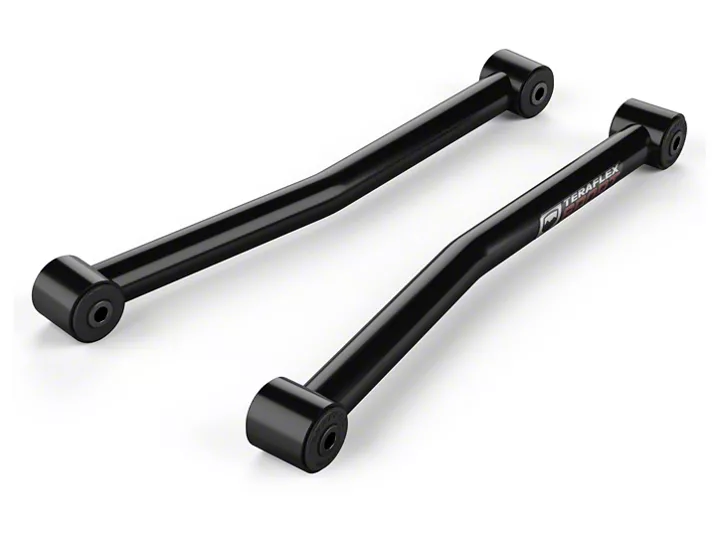

How to Install Teraflex Sport Fixed Front Lower FlexArms for 2.5-3 in. Lift (07-18 Jeep Wrangler JK) on your Jeep Wrangler

Installation Time

60 minutes

Tools Required
  • Box Cutter/Knife
  • Jack
  • Crescent Wrench
  • 21mm Socket Wrench
  • Torque Wrench
Extreme Terrain
Shop Parts in this Guide

Installation Instructions:

1. Raise the front end of the vehicle and remove the front tires.

2. Loosen the top part of the lower control arm on the driver's side using a 21mm socket wrench (Figure A).


Figure A

3. Loosen the lower part of the lower control arm on the driver's side using a 21mm socket wrench (Figure B).


Figure B

4. Remove both bolts and set the lower control arm to the side (Figure C).


Figure C

5. Set the TeraFlex front lower control arm into place and tighten slightly (Figure D).


Figure D

6. Place the bolt through the other end of the front lower control arm (Figure E).


Figure E

7. Tighten bolts further (but not fully torqued) (Figure F).


Figure F

8. Repeat Steps 2-7 on the passenger's side.

9. Return the front tires and lower the jack.

10. Torque each of the bolts to 125 ft. lbs.


Before

After

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 11/11/2018
