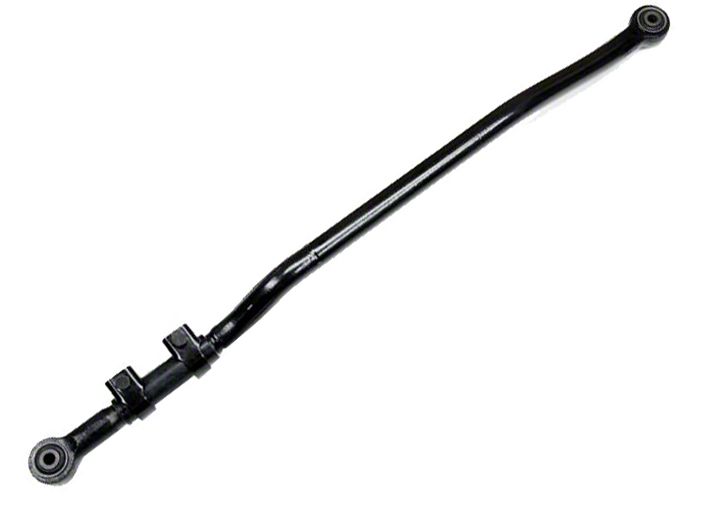

How to Install Teraflex JK Rear Forged Adjustable Trackbar Kit, 0-6 in. Lift on your Wrangler
Shop Parts in this Guide
Important Notes:
Prior to beginning this or any installation read these instructions to familiarize yourself with the required steps and evaluate if you are experienced and capable to personally perform these modifications. A factory service manual should be used in conjunction with these installation instructions.
Refer to the parts list to ensure that all necessary components and hardware has been included. If any parts are missing please contact your local TeraFlex dealer for assistance.
REMOVAL
1. This procedure can be performed with the vehicle on the ground. Make sure it is parked on a level surface with the parking brake set.
2. Remove the track bar from the axle bracket with an 21mm, the nut is a flag nut.
Remove the track bar from the frame bracket with an 21mm wrench and socket.
INSTALLATION
Using the original hardware, install the track bar into the frame bracket. Tighten finger tight. The adjustment collar is near the axle end.
Install the track bar into the axle bracket. Tighten finger tight. With the vehicle on the ground, torque both bolts to 125 ft-lbs.
To center the axle under the Jeep, use a 15mm to loosen the adjustment sleeve clamps and turn the sleeve. When adjust-ment is finalized, torque clamp bolts to 45 ft-lbs.
