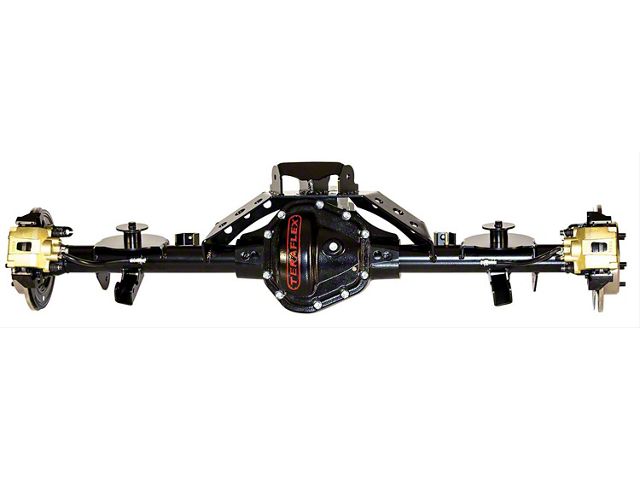

Teraflex CRD60 HD Rear Axle with Semi-Float, Truss, ARB Locker and Super 60 4.30 Gears for 3 to 6-Inch Lift (97-06 Jeep Wrangler TJ)Find parts that fit my vehicle
Item J174398
Our Price
$5,548.99
Military, Medical & First Responders
$277.45 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A
Features & Specs
- Factory-Style Semi-Float Design
- 3.25" O.D. x 0.375" Wall DOM Axle Tube For Superior Strength Vs. Weight
- 63.5" WMS-WMS And 5x5.5" Wheel Bolt Pattern
- Includes Ford & Rear Disc Brake Conversion Kit
- Fixed Spindle Mount Hub Assembly
- High-Pinion Rear Axle Housing Design
- Includes 1350 Series Pinion Yoke
- 35-Spline Inner And Outer Axle Shafts
- Heavy-Duty Bearing Caps Increase Rigidity And Reduce Ring And Pinion Distortion
- Constant Radius Design Provides Maximum Ground Clearance Regardless Of Pinion Angle
- Built-In Skimmer Cuts Ring Gear Oil Halo And Forces It Into The Pinion Bearings
- Outer Pinion Bearing Pocket Features Renewable Oil Reservoir That Sends Cool Oil To The Pinion Bearing
- Oversized Outer Pinion Bearing Handles Increased Torque And High-Load Conditions
- High-Capacity Housing Holds Maximum Amount Of Oil
- Asymmetric Housing Design For Extra-Long Tube Side Strength
- Pre-Installed Inner Axle Seals
- Ductile Cast Iron Housing With Increased Rib Gussets
- Heavy-Duty Ductile Iron Differential Cover With Increased Cover Mounting Area
- Integrated Lower Control Arm Skid Plates
- High-Flow Oil Passages
- Reinforced Rear Track Bar Mount With Multiple Mounting Locations
- UV Protected Triple-Stage Powder Coat For Corrosion Resistance
- 1/4"-Thick CNC Laser Cut Axle Brackets For Extreme Strength
- Pre-Installed Upper Control Arm Bushings
- Proper Pinion Angle For Lifted TJ Applications
- 3-6" Lift Features A Raised Pinion Angle And Raised Track Bar Bracket
- Pre-Tapped Hole On Spring Perch For Bump Stop Extensions
- Pre-Drilled Holes For Limit Straps And Lower Spring Retainers
- Retains All TJ ESP, ABS, And Speedometer Sensor Capability
- 100% Engineered, Designed, And Built In The USA With New Components
- Fits 97-06 Jeep Wrangler TJ
| Brand | Teraflex |
| Type | Dana 60 |
| Placement | Rear |
Description
Heavy-Duty Axle Assembly. The Teraflex CRD60 HD Rear Axle with Semi-Float, Truss, ARB Locker and Super 60 4.30 Gears for 3 to 6-Inch Lift is a complete axle solution designed to replace damaged or stock axles in Jeep Wrangler TJ models. It offers enhanced strength and durability for off-road applications, providing better torque handling and improved ground clearance that is vital for lifted vehicles.
Construction and Appearance. This axle assembly features a ductile cast iron housing reinforced with rib gussets and a heavy-duty ductile iron differential cover. The axle tubes are made of 3.25" O.D. x 0.375" wall DOM steel for optimal strength-to-weight ratio. The components have a UV protected triple-stage powder coat finish that offers superior corrosion resistance and a sleek appearance.
Installation. Installation requires mechanical proficiency and is moderately challenging, typically taking about six hours. No drilling is required as the assembly is designed for direct bolt-on compatibility, but certified mechanic installation is recommended for best results.
Warranty. This product comes with a one-year unlimited mileage warranty.
Application. Specifically engineered to fit the 97-06 Jeep Wrangler TJ models without modification or exclusion.
