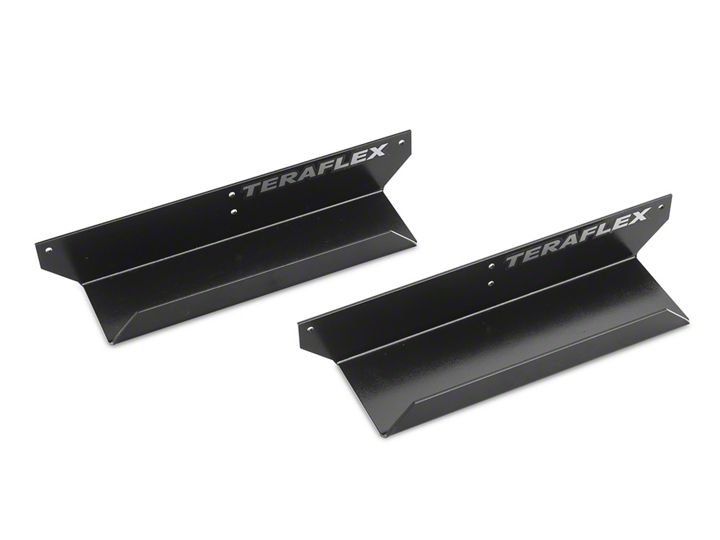

How to Install Teraflex Full Hard Door Hanger (07-18 Jeep Wrangler JK; 2018 Jeep Wrangler JL) on your Jeep Wrangler
Installation Time
60 minutes
Tools Required
- Box Cutter/Knife
- Drill
- Drill Bit
- Level
- Stud Finder
- Pen/Pencil
- Philips Head Screwdriver
Shop Parts in this Guide
1. Using a stud finder, locate a suitable location to mount the door hangers (Figure A).
Figure A
2. Utilize a level to ensure the door hanger will mount correctly (Figure B).
Figure B
3. Using a pen or pencil, mark the location to drill pilot holes for the door hanger (Figure C).
Figure C
4. Drill the pilot holes (Figure D).
Figure D
5. Mark the second pilot hole placement that is level with the first (Figure E).
Figure E
6. Align the door hanger with the pilot holes (Figure F).
Figure F
7. Using a Philips head screwdriver, screw in the wood screws (not supplied) to connect the door hanger to the wall (Figure G).
Figure G
8. Repeat Steps 1-6 for the other door hanger.
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/08/2018
