Teraflex Front Tera60 Unit Bearing Axle Housing with 4.56 Gears and ARB Locker (97-06 Jeep Wrangler TJ)
Item J117423
$0.00
Our Price
$9,959.99 (each)
FREE Shipping + $199.00 Oversized Item Fee Market Price $11,453.99 You Save 13% ($1,494.00) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Front Tera60 Unit Bearing Axle With 4.56 Gears
- Works With 0-6 Inch Lift
- Ductile Cast Iron Housing With Increased Rib Gussets
- Pre-Installed Axle Seals
- High-Flow Oil Passages
- Pre-Tapped Holes For Bump Stop Extensions
- 3.25 Inch O.D. x 0.375-Inch Wall Axle Tube For Superior Strength
- 4.56 Spicer Ring And Pinion
- ARB Air Locker
- Smooth Profile Surfaces For Gliding Over Obstacles
- Big Brake Kit With 13.3 Inch Rotors
- Direct Bolt-On
- Premium UV Protected Coating
- Superior Corrosion Resistance
- Designed And Built In The USA
- Moderately Difficult Installation
- 1-Year Unlimited Mileage Warranty
- Lifetime Structural Warranty
- Fits 1997-2006 Jeep Wrangler TJ Models
| Brand | Teraflex |
| Type | Dana 60 |
| Placement | Front |
Description

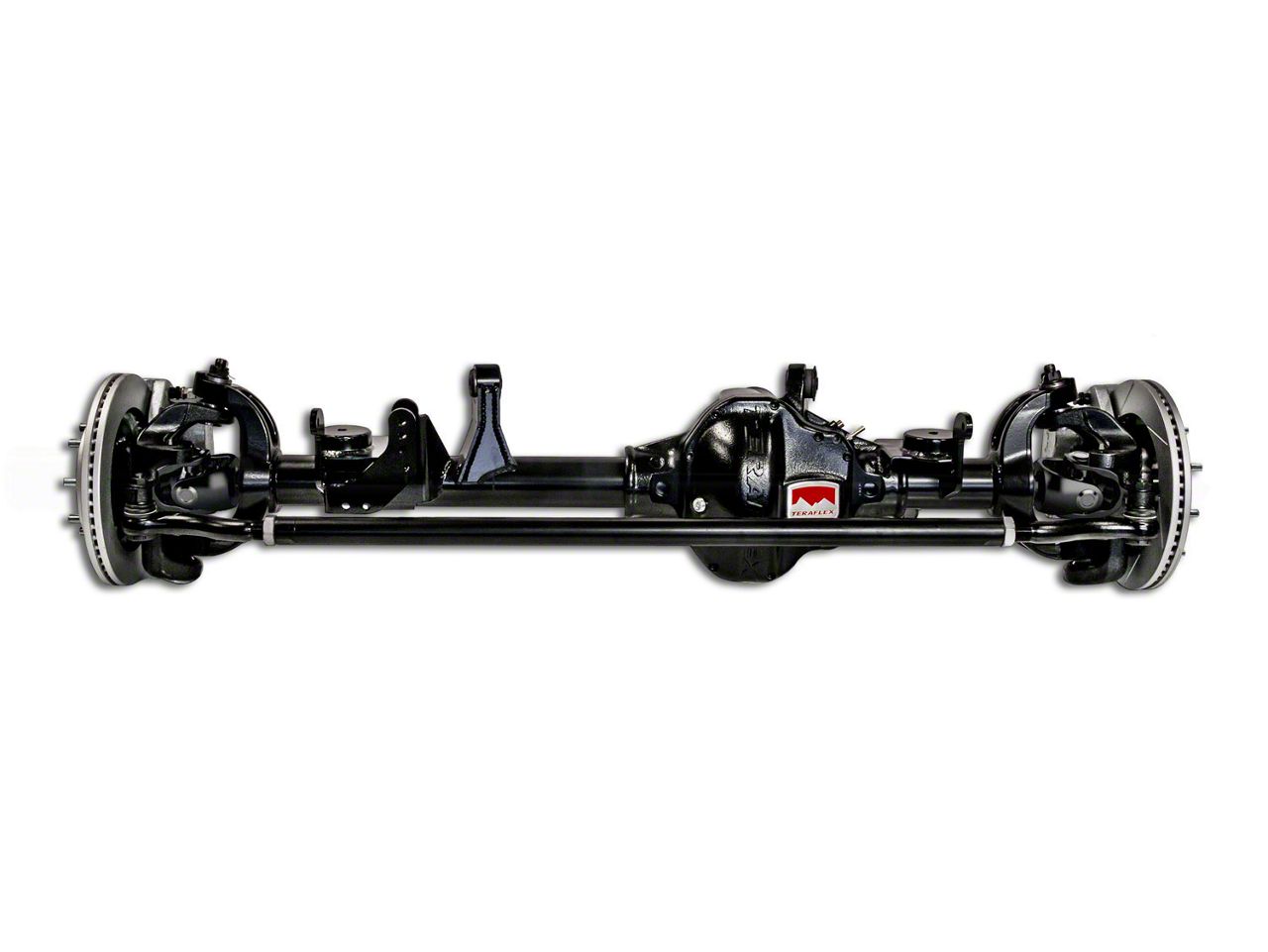

The Most Durable Dana 60 Front Axle For A TJ Jeep. The Front Teraflex Tera60 Unit Bearing Axle with 4.56 Gears is the ultimate addition for your off-road ready Jeep Wrangler TJ. This front axle is ideal for extreme off-road Jeeps of varying in height from 0-6 inches of lift.
Heavy-Duty Construction. The heavy-duty Tera60 axle housing is created from ductile cast iron with increased rib gussets for added strength and durability. Equipped with pre-installed inner seals and high flow oil passages, this housing is built to outlive and outperform any OEM unit. This axle housing also comes pre-tapped for bump stop extensions. This off-road performance upgrade is intentionally equipped with 3.25 inch O.D. x 0.375-inch wall axle tubes for superior strength and longevity.
Traction, Gearing And Off-Road Features. Providing traction to the front wheels is an ARB air locker locking in a 4.56 Spicer ring and pinion gear set. The front axle is built with a smooth radius bottom design allowing it to glide over obstacles. Stopping your Jeep is a big 13.30-inch rotor attached to each end of this Dana 60 unit.
Axle Protection. The direct bolt-on axle is covered with a UV-protected, triple-stage powder coat to keep your TJ protected from corrosion. Teraflex’s bolt-on axle housing is engineered, designed and built in the USA.
Moderately Difficult Installation. Installation of this front axle replacement will take roughly 5 hours. The heavy-duty replacement is a direct fit and should install as OEM. Tools required for the job should not be more than simple hand tools.
One-Year Unlimited Mileage Warranty & Lifetime Structural Warranty. This Teraflex axle comes with a 1-year unlimited mileage warranty and a lifetime structural warranty. For more information on the warranty please contact the manufacture.
Application. The Teraflex Front Tera60 Unit Bearing Axle with 4.56 Gears fits all 1997-2006 Jeep Wrangler TJ models.
Fitment:
- 1997 Jeep Wrangler
- 1998 Jeep Wrangler
- 1999 Jeep Wrangler
- 2000 Jeep Wrangler
- 2001 Jeep Wrangler
- 2002 Jeep Wrangler
- 2003 Jeep Wrangler
- 2004 Jeep Wrangler
- 2005 Jeep Wrangler
- 2006 Jeep Wrangler
Teraflex 3817456
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Axle
4.8
Reviews of Teraflex Drivetrain Products (414)
Reviews of Teraflex Drivetrain products have an average rating of 4.8 out of 5
Questions & Answers
10 More Questions
Will It Fit My Wrangler
- TJ Rubicon 2 Door - 03, 04, 05, 06
- TJ Rubicon Unlimited 2 Door - 05, 06
- TJ Wrangler 2 Door - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06
- TJ Wrangler Unlimited 2 Door - 04, 05, 06
