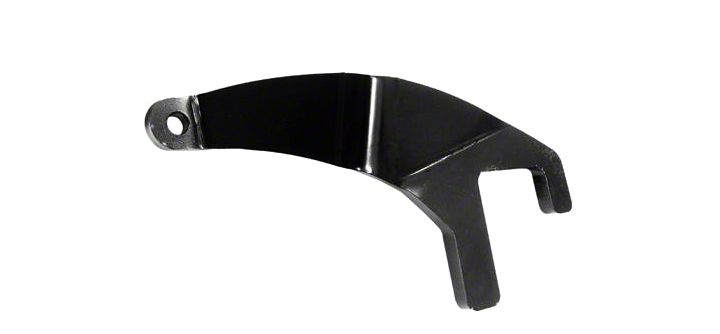

How to Install Teraflex Dana 30 Swaybar Mount-Left Side on your Wrangler

Installation Time

2 hours

Extreme Terrain
Shop Parts in this Guide

NOTE: Professional welding requried.
This is NOT an all-inclusive kit.

These sway bar mounts are designed to be used with TJ Wrangler suspensions using a high steering system (elevated drag link), and/or 4 inches of lift. The sway bar mounts will allow the sway bars to be moved up and out of the way from any steering components. This kit will require modification of the sway bar links. Tera Manufacturing has available short sway bar links (Part #QD132-4) for this purpose.

FRONT SWAY BAR MODIFICATIONS

The sway bar mounts on the axle will have to be relocated to clear the height increase of a high steer drag link. TeraFlex has developed a left (part #SBM-L) and right (part #SBM-R) sway bar bracket that can accomplish this modification. When the sway bar bracket is relocated a shorter sway bar link (part #QD132-4) must be used. Note: the shorter sway bar link is not included in this kit and must be purchased separately.

To install the new sway bar mount:

1. Cut off the stock sway bar mounts at the point where it attaches to the spring pad bracket.


2. Grind the area smooth to avoid cutting yourself on the sharp edge, and paint to prevent rusting.

3. Clean all grease and rust off the knuckle to facilitate proper welding of components.

4. Place the new sway bar mount on the inner knuckle so that it is vertical (see last photo), and tack weld it in place. Double check to make sure that the mount is in the right location and then final weld.



5. Secure the sway bar link to the sway bar mount.

6. Repeat items 1-4 for other side.

7. After 500 miles check all bolts and re-torque if necessary.
