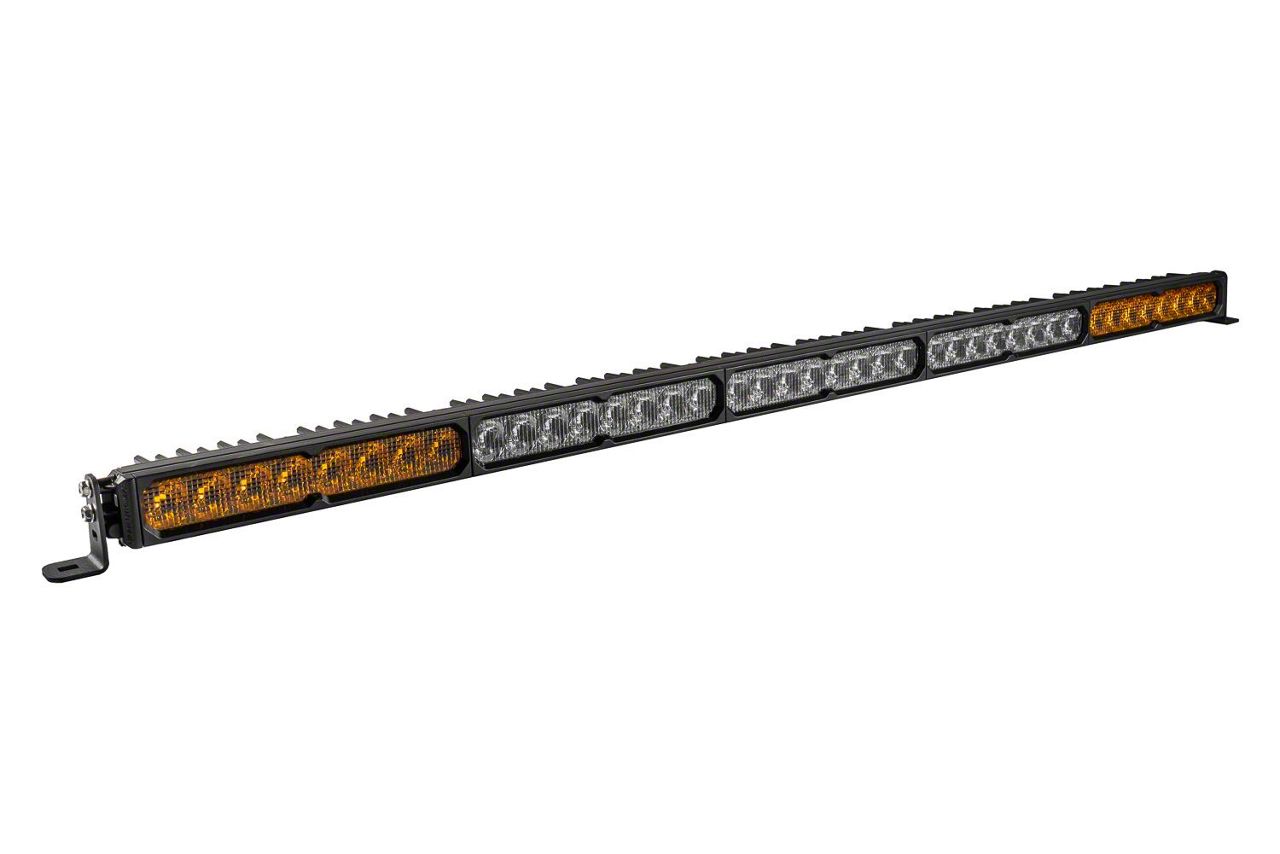

Diode Dynamics SS50 Sport Single Row LED Light Bar with SmartSelect Backlight; Dual-Color Combo (Universal; Some Adaptation May Be Required)
Item TT81397
Our Price
$1,099.95
Military, Medical & First Responders
$55.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR optics for maximum efficiency and output _x000D_
- Dual-function main beam with SmartSelect technology—no extra switches required _x000D_
- Modern welcome sequence with selectable backlight colors including amber and multicolor options _x000D_
- Available in Sport and Pro power levels _x000D_
- Durable aluminum housing with ASTM-standard powdercoat finish _x000D_
- Built for extreme conditions with IP69K waterproof rating _x000D_
- Limited lifetime warranty _x000D_
- Made in USA with global materials _x000D_
- Raw Lumens: Sport - 18,440 lm, Pro - 62,720 lm _x000D_
- Color Temperature (CCT): 3000K, 6000K _x000D_
- Beam Angles: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Power Consumption: Sport - 212 Watts, Pro - 295 Watts _x000D_
- Operating Voltage Range: 9-30 Volts _x000D_
- Current Draw at 12.8V: Sport - 16.56 Amps, Pro - 23.05 Amps _x000D_
- Polarity specific _x000D_
- Operating Temperature Range: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitters: Osram Ostar Projection Compact, Lumileds automotive grade LEDs _x000D_
- Electrical Connector: Deutsch DT-P input _x000D_
- Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets _x000D_
- Cooling Method: Passive using heatsink _x000D_
- Ingress Protection Rating: IP69K waterproof, high pressure _x000D_
- Product Dimensions: 2.01 inches (H) x 51.63 inches (L) x 2.46 inches (D) _x000D_
- Fits universal; some adaptation may be required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 50 Inch and Up |
Description
Innovative Dual-Color Lighting. The Diode Dynamics SS50 Sport Single Row LED Light Bar with SmartSelect Backlight and Dual-Color Combo delivers powerful, versatile illumination designed for off-road and professional use. This advanced light bar provides precise control with SmartSelect technology, allowing selectable inner and outer segment activation to optimize visibility across diverse terrains and driving conditions.
_x000D_Construction and Appearance. Constructed from durable aluminum with an ASTM-standard powdercoat finish, the light bar features a rugged design built to endure harsh environments. Polycarbonate lenses and stainless steel brackets enhance durability, while the fully encapsulated housing provides an IP69K-rated waterproof protection against high-pressure water and extreme conditions.
_x000D_Installation. Installation typically requires 30 to 60 minutes and uses a universal bracket set, with no specialized tools or vehicle modifications generally necessary. Basic hand tools are sufficient for mounting, and the design avoids the need for drilling in most standard applications.
_x000D_Warranty. This product is backed by a limited lifetime warranty, ensuring long-term reliability and peace of mind.
_x000D_Application. Designed for universal fitment, this light bar may require some adaptation to accommodate specific vehicle configurations or mounting locations.
