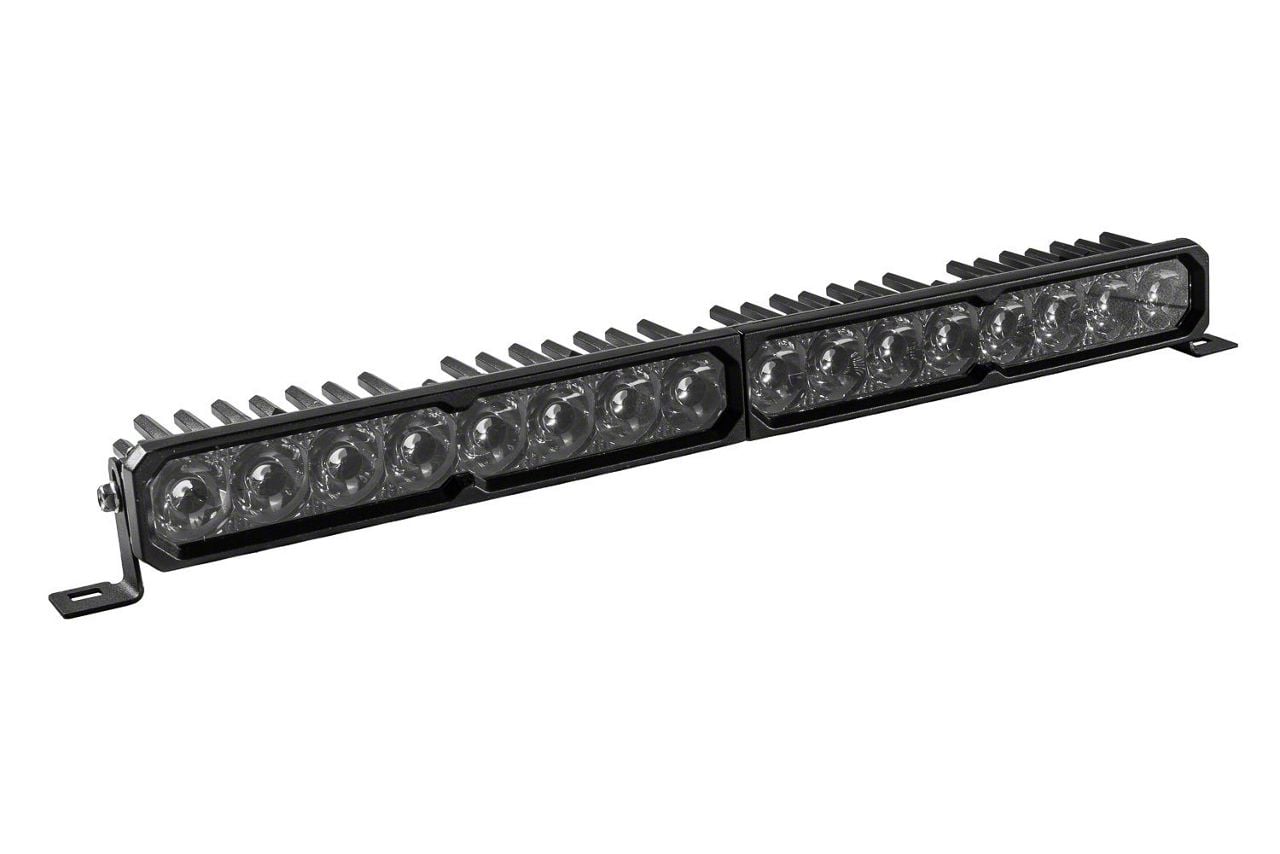

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; White Spot (Universal; Some Adaptation May Be Required)

Item TT81324
Product Image
Our Price

$399.95

Military, Medical & First Responders $20.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics for Maximum Efficiency and Output.
        • _x000D_
      • Upgraded Beam Patterns Engineered for Real-World Performance.
        • _x000D_
      • Modern Welcome Sequence and Selectable Backlight with SmartSelect Technology.
        • _x000D_
      • Available in Sport, Pro, and Max Power Levels.
        • _x000D_
      • Durable Aluminum Housing with ASTM-Standard Powdercoat Finish.
        • _x000D_
      • Built for Extreme Conditions with IP69K Waterproof Rating.
        • _x000D_
      • Limited Lifetime Warranty.
        • _x000D_
      • Made in USA with Global Materials.
        • _x000D_
      • Peak Beam Intensity up to 386,000 Candela.
        • _x000D_
      • Illuminance up to 3,860 Lux at 10m.
        • _x000D_
      • Raw Output up to 25,088 Lumens.
        • _x000D_
      • LED Emitters: Osram Ostar Projection Compact and Lumileds Automotive Grade LEDs.
        • _x000D_
      • Operating Voltage: 9-30 V.
        • _x000D_
      • Current Ranges from 5.98 to 8.20 Amps at 12.8 V.
        • _x000D_
      • Polarity Specific.
        • _x000D_
      • Operating Temperature from -40°C to 85°C (-40°F to 185°F).
        • _x000D_
      • Connector: Deutsch DT Input.
        • _x000D_
      • Cooling: Passive Heatsink.
        • _x000D_
      • Product Dimensions: 2.01 x 20.24 x 2.37 Inches.
        • _x000D_
      • Includes One LED Light Bar, Wire Pigtail, and Universal Bracket Set.
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required.
        • _x000D_

      Description

      Advanced LED Lightbar. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight and White Spot is engineered to deliver high-intensity, focused white light with superior beam patterns tailored for various driving conditions. Ideal for off-road and auxiliary lighting needs, this light bar enhances visibility with precision optics and a powerful LED array, improving safety and performance in low-light scenarios.

      _x000D__x000D_

      Construction and Appearance. Crafted from durable aluminum with an ASTM-standard powdercoat finish, this light bar features a sleek, rugged design resistant to harsh environments and weather. It incorporates Osram Ostar Projection Compact LEDs and Lumileds Automotive Grade LEDs behind a polycarbonate lens, paired with a copper and aluminum heatsink for efficient thermal management and long-lasting performance.

      _x000D__x000D_

      Installation. Installation typically requires basic tools with minimal effort and no drilling in most applications. Its universal mounting system ensures compatibility with a wide range of vehicles for straightforward setup.

      _x000D__x000D_

      Warranty. This product comes with a limited lifetime warranty, providing long-term assurance against defects and ensuring customer satisfaction.

      _x000D__x000D_

      Application. Designed for universal fitment; some adaptation may be necessary depending on vehicle specifics or mounting preferences.

      Diode Dynamics DD8225
