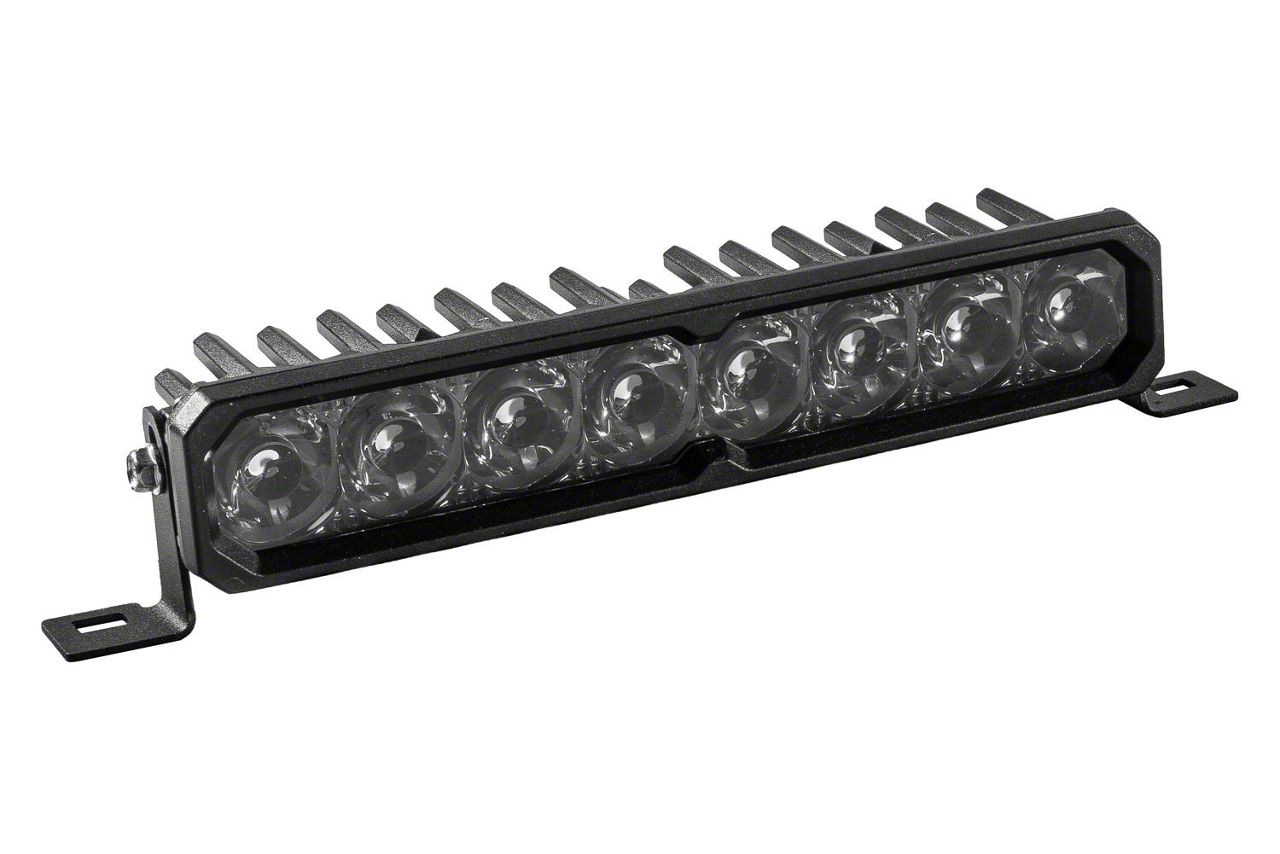

Diode Dynamics SS10 Sport Single Row LED Light Bar with SmartSelect Backlight; White Spot (Universal; Some Adaptation May Be Required)
Item TT81289
Our Price
$299.95
Military, Medical & First Responders
$15.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics for Maximum Efficiency and Output _x000D_
- Upgraded Beam Patterns Engineered for Real-World Performance _x000D_
- Modern Welcome Sequence and Selectable Backlight with SmartSelect Technology _x000D_
- Available in Sport, Pro, and Max Power Levels _x000D_
- Durable Aluminum Housing with ASTM-Standard Powdercoat Finish _x000D_
- Built for Extreme Conditions with IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty Included _x000D_
- Made in USA Using Globally Sourced Materials _x000D_
- Multiple Beam Patterns Available: Combo/Driving, SAE Driving, Flood, Spot _x000D_
- Sport Model Offers Best Value, Pro Model Boosts Power, Max Model Provides Extreme Intensity _x000D_
- Fully Illuminated Backlight with 8-Color Selectable Option on SmartSelect Models _x000D_
- Snap-On Lens Covers Available for Protection and Customization _x000D_
- Compatible with CrossLink Mounting Solution for Curved Setups _x000D_
- Thermally Optimized with Copper Circuit Boards and Heatsinks for Maximum Output _x000D_
- Operating Voltage Range from 9 to 30 Volts _x000D_
- Connector: Deutsch DT Input _x000D_
- Passive Cooling System with Heatsink _x000D_
- Operating Temperature from -40°C to 85°C (-40°F to 185°F) _x000D_
- Dimensions: 2.01 x 10.24 x 2.37 Inches _x000D_
- Raw Output Lumens Range from 3,688 to 15,840 Depending on Power Level _x000D_
- Beam Angles from 8 x 8 to 100 x 80 Degrees Depending on Optic _x000D_
- Current Draw Ranges from 3.13 to 4.77 Amps at 12.8 Volts _x000D_
- Product Weight Approximately 2.35 Pounds _x000D_
- Includes One LED Light Bar, Wire Pigtail, and Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 10 to 19 Inch |
Description
High-Performance LED Lightbar. The Diode Dynamics SS10 Sport Single Row LED Light Bar with SmartSelect Backlight; White Spot is engineered to provide superior lighting performance for automotive enthusiasts and professionals. It delivers precise, intense light output with advanced TIR optics, making it ideal for night driving, off-road adventures, and demanding lighting applications.
_x000D__x000D_Construction and Appearance. Constructed from durable aluminum with an ASTM-standard powdercoat finish, this light bar features a robust housing designed to withstand extreme environments. It incorporates patented TIR optics, a polycarbonate lens, and stainless steel brackets, all assembled to exacting quality standards. The fully encapsulated design ensures an IP69K waterproof rating for exceptional durability.
_x000D__x000D_Installation. Installation is straightforward and can typically be completed within 30 to 60 minutes using basic tools, with no drilling usually required. The light bar includes a universal bracket set to provide flexible mounting options suitable for a wide range of vehicles.
_x000D__x000D_Warranty. This product comes with a limited lifetime warranty, offering long-term peace of mind against defects and performance issues.
_x000D__x000D_Application. Designed for universal fitment, with some adaptation possibly required depending on the specific vehicle and mounting location.
