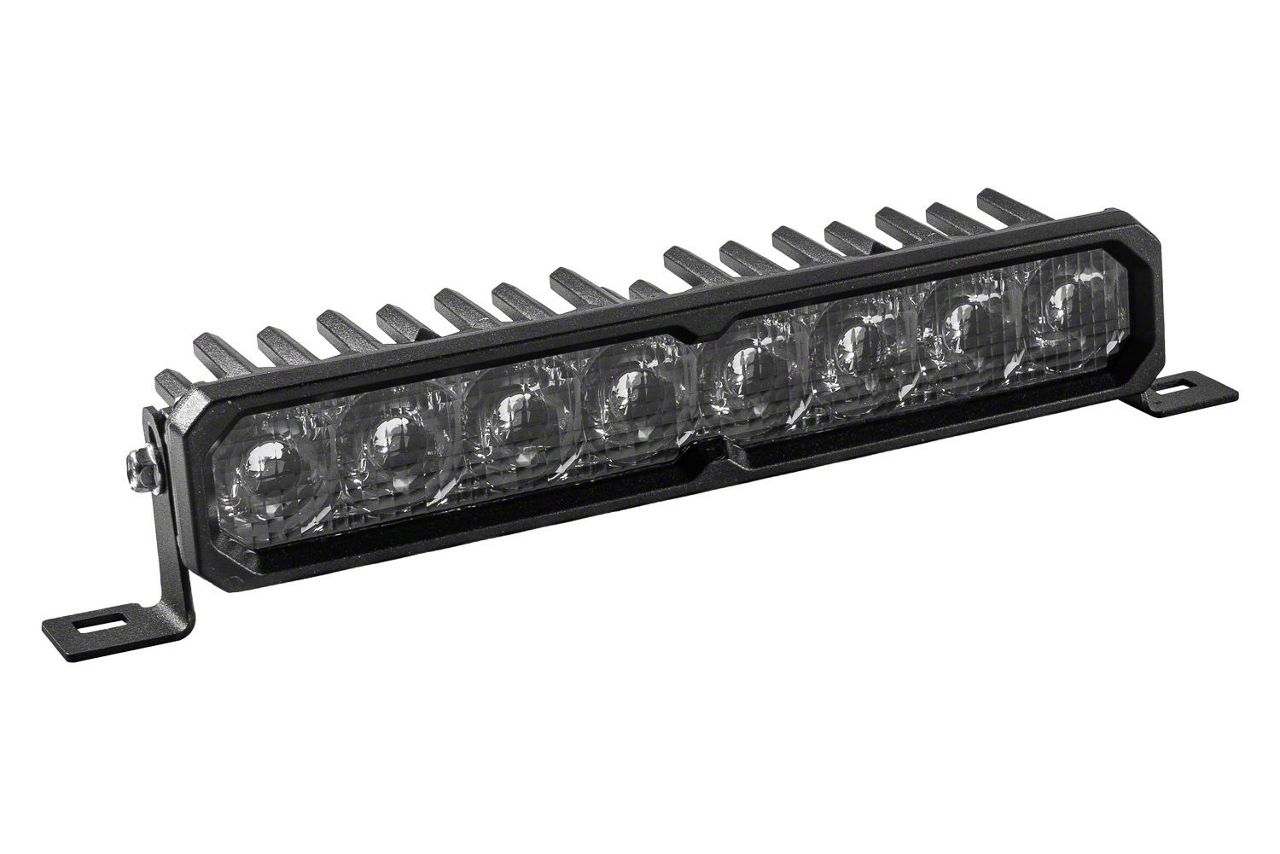

Diode Dynamics SS10 Sport Single Row LED Light Bar with Amber Backlight; White Driving (Universal; Some Adaptation May Be Required)
Item TT81279
Our Price
$249.95
Military, Medical & First Responders
$12.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology _x000D_
- Available In Sport, Pro, And Max Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA Using Global Materials _x000D_
- Beam Angles Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Operating Voltage Range From 9-30V _x000D_
- Current Draw: Sport 3.13A, Pro 4.00A, Max 4.77A At 12.8V _x000D_
- Operating Temperature From -40°C To 85°C (-40°F To 185°F) _x000D_
- Osram Boost HX, Osram Ostar Projection Compact, And Lumileds Automotive Grade LEDs _x000D_
- Deutsch DT Input Connectors _x000D_
- Copper And Aluminum Printed Circuit Boards For Enhanced Thermal Management _x000D_
- Polycarbonate Lens And Aluminum Heatsink With Stainless Steel Brackets _x000D_
- Passive Cooling Via Heatsink Design _x000D_
- Dimensions: 2.01 Inches Height x 10.24 Inches Width x 2.37 Inches Depth _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 10 to 19 Inch |
Description
High-Performance Illumination. The Diode Dynamics SS10 Sport Single Row LED Light Bar with Amber Backlight; White Driving is engineered to deliver superior lighting with maximum efficiency. It features patented TIR optics that direct light precisely where needed, making it ideal for various automotive lighting applications requiring excellent visibility and clarity.
_x000D__x000D_Construction and Appearance. Crafted from durable aluminum with an ASTM-standard powdercoat finish, this light bar provides long-lasting resistance to harsh environments. The polycarbonate lens ensures clear, distortion-free light transmission, while stainless steel brackets contribute to mounting durability and structural integrity under stress.
_x000D__x000D_Installation. Installation is straightforward and can be completed with basic tools within 30 to 60 minutes. The universal mounting brackets allow for surface mounting without vehicle-specific drilling, although some adaptation may be necessary depending on the application.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, guaranteeing quality and reliability through extended use.
_x000D__x000D_Application. Designed to fit universally; certain vehicles or mounting configurations may require minor adaptation for optimal fitment.
Diode Dynamics DD8180
