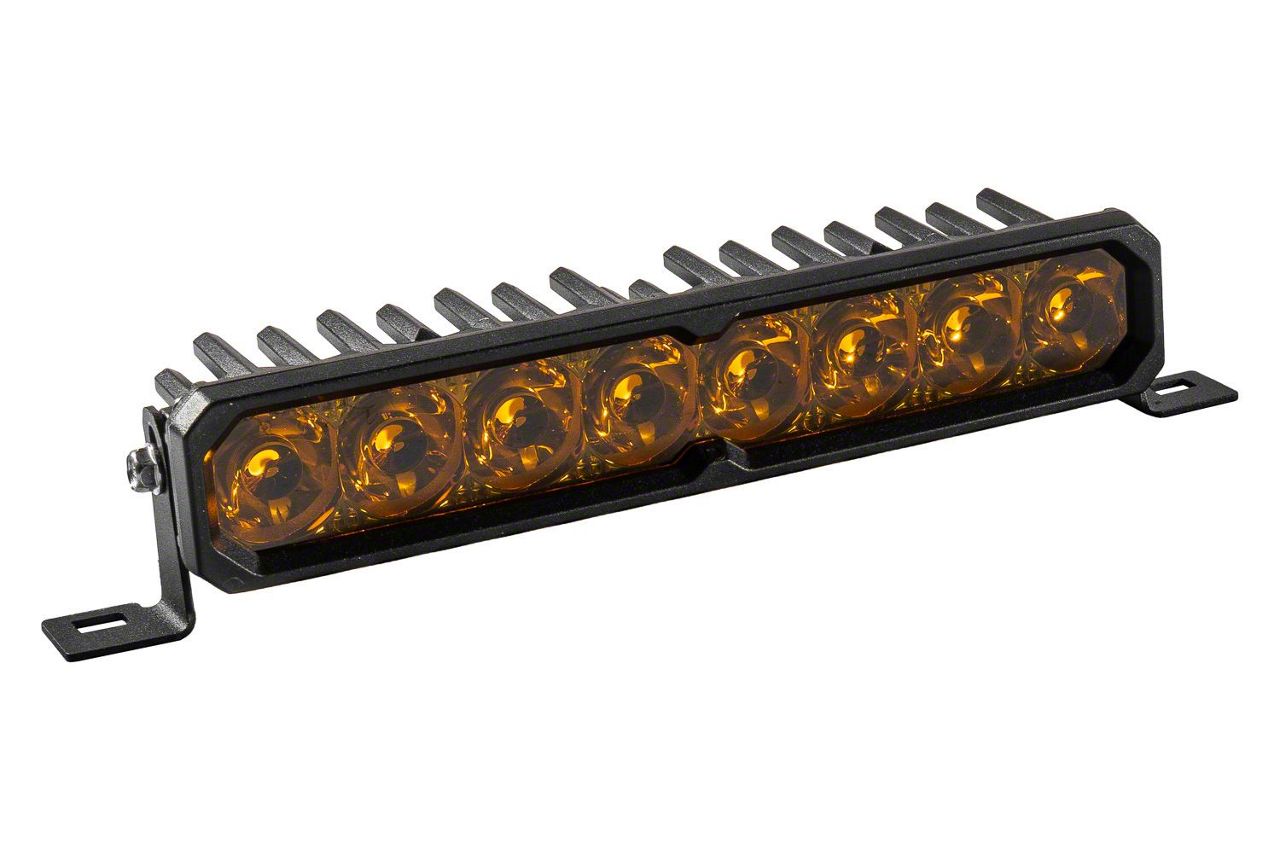

Diode Dynamics SS10 Pro Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item TT81302
Our Price
$349.95
Military, Medical & First Responders
$17.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport, Pro, And Max Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty Included _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Ranges From 62,000 Cd To 205,500 Cd Depending On Model _x000D_
- Illuminance Ranges From 20 Lux To 2,050 Lux At 10 Meters _x000D_
- Raw Output Between 3,688 Lumens And 15,840 Lumens _x000D_
- Available Beam Angles Include Combo/Driving 60x30°, SAE Driving 20x12°, Flood 100x80°, Spot 8x8° _x000D_
- Operating Voltage Between 9-30V With Current Draw From 3.13A To 4.77A At 12.8V _x000D_
- LED Emitters Include Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade _x000D_
- Constructed With Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Heatsink Cooling System _x000D_
- Deutsch DT Input Connector _x000D_
- Operating Temperature Range From -40C To 85C (-40F To 185F) _x000D_
- Product Dimensions Are Approximately 2.01 X 10.24 X 2.37 Inches _x000D_
- Universal Fitment; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 10 to 19 Inch |
Description
Advanced Lighting Solution. The Diode Dynamics SS10 Pro Single Row LED Light Bar with Amber Backlight and Yellow Spot beam is designed to deliver superior illumination for off-road and auxiliary lighting applications. This light bar enhances visibility with a focused amber-yellow beam pattern, ideal for adverse conditions such as fog, rain, and snow. Its advanced optics and high output ensure reliability and optimized trail or road visibility.
_x000D__x000D_Construction and Appearance. Crafted with durable aluminum housing coated in an ASTM-standard powdercoat finish, the light bar features a rugged polycarbonate lens and stainless steel brackets for enhanced longevity. It incorporates patented Total Internal Reflection (TIR) optics engineered for maximum light efficiency and has a fully encapsulated design with an IP69K waterproof rating, ensuring protection against harsh environmental conditions.
_x000D__x000D_Installation. Installation typically requires basic tools and takes approximately 30 to 60 minutes. The light bar mounts with included universal brackets, and no drilling is usually necessary, making installation straightforward for both professional installers and DIY enthusiasts.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty to provide assurance of quality and long-term performance.
_x000D__x000D_Application. Designed for universal fitment with some adaptation potentially required, this light bar can be tailored to a wide variety of vehicles and setups for versatile use.
Diode Dynamics DD8203
