Find Engine Components for your Tacoma

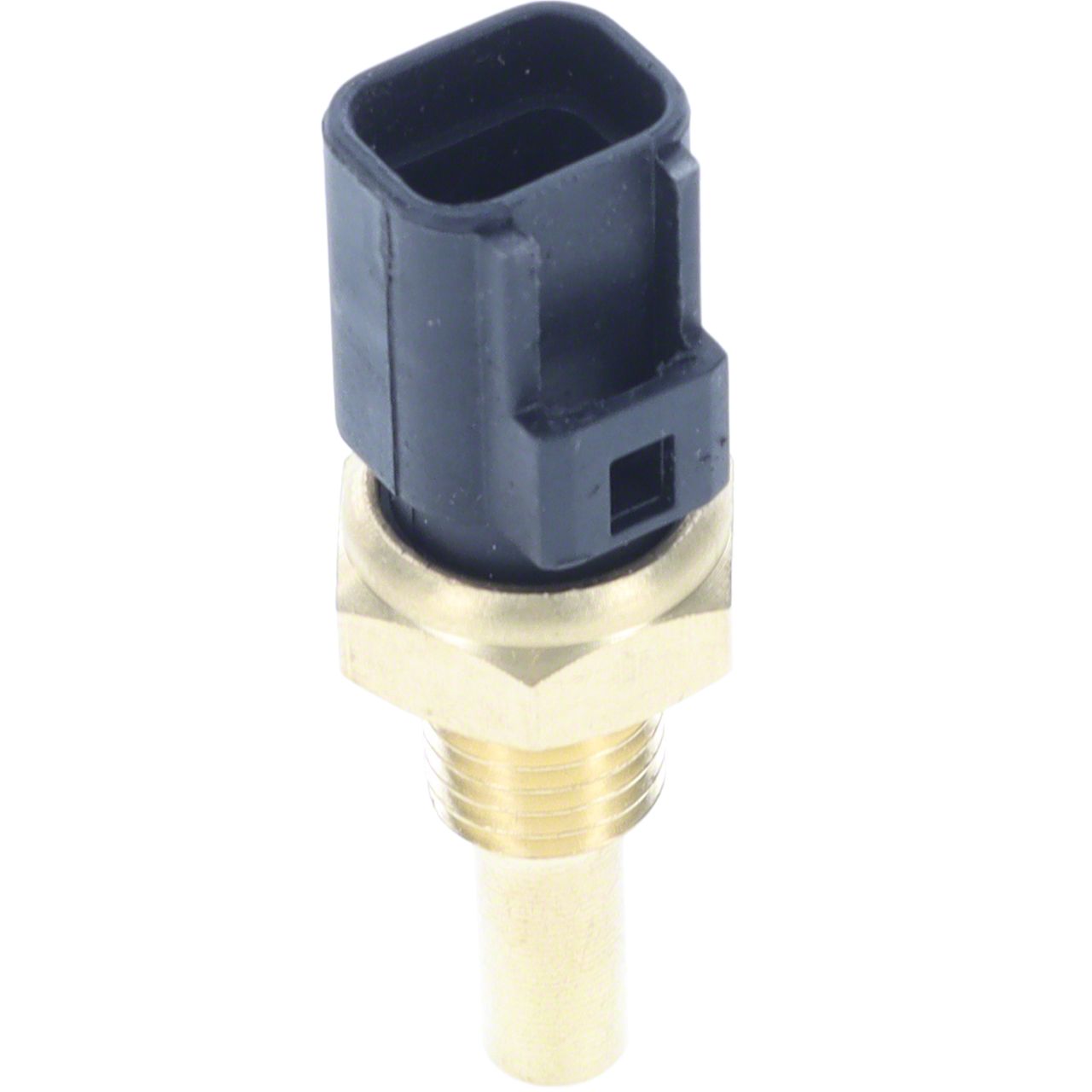

Engine Coolant Temperature Sensor (05-15 4.0L Tacoma)Find parts that fit my vehicle
Item TT65829
Our Price
$13.99
Military, Medical & First Responders
$0.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- 100% Factory Resistance Calibrated To Ensure Precision Tolerances, Resulting In Extremely Accurate Temperature For Optimal Performance _x000D_
- Thread Sealant And/Or O-Ring Pre-Installed On Applicable Sensors To Ensure Leak Free Performance _x000D_
- Brass Sensor Housing Precision Machined To Meet Or Exceed OE Thermal Conductivity _x000D_
- OE Precision Matched Thermistor Position For Correct Output Parameters _x000D_
- Extensive Product Testing Includes Salt Spray, High/Low Temperature Impact, Thermal Vibration, Durability, Static Electricity, And Micro Tension, Among Other Tests, To Ensure All Sensors Meet Or Exceed OEM Specifications _x000D_
- Height 2.38 In (60.45 Mm) _x000D_
- Overall Width 0.75 In (19.05 Mm) _x000D_
- Connector Quantity 1 _x000D_
- Terminal Quantity 2 _x000D_
- Terminal Type Blade _x000D_
- Resistance 2.014 Ohms _x000D_
- Grade Type Standard Replacement _x000D_
- Mounting Hole Quantity 0 _x000D_
- Wire Quantity 0 _x000D_
- Connector Shape Square _x000D_
- Material Metal, Plastic _x000D_
- Sensor Casing Length 0.75 In (19.05 Mm) _x000D_
- Connector Width 0.75 In (19.05 Mm) _x000D_
- Sensor Casing Maximum Diameter 0.63 In (16.00 Mm) _x000D_
- Terminal Gender Male _x000D_
- Thread Type Fine _x000D_
- Mounting Type Threaded _x000D_
- Threaded End Diameter 0.29 In (7.44 Mm) _x000D_
- Connector Gender Female _x000D_
- Gasket Or Seal Included No _x000D_
- Thread Sealer Included No _x000D_
- Mounting Bracket Included No _x000D_
- Thread Size 1/4" - 20 In _x000D_
- Connector Length 0.75 In (19.05 Mm) _x000D_
- Wiring Harness Included No _x000D_
- Fits 05-15 4.0L Tacoma _x000D_
Description
Temperature Sensor Accuracy. The Engine Coolant Temperature Sensor monitors the temperature of the engine coolant to provide essential data for engine management systems, ensuring engine performance optimization by communicating accurate temperature readings that prevent overheating and maintain efficient fuel usage.
_x000D__x000D_Construction and Appearance. This sensor features a brass housing that is precision machined to meet or exceed OE thermal conductivity standards, combined with a plastic square connector housing. It is factory resistance-calibrated and includes pre-installed thread sealant or O-ring where applicable, ensuring durability and leak-free operation.
_x000D__x000D_Installation. The sensor is installed by threading it into the engine block or coolant passage with no drilling required. It is designed as a direct replacement with matched thermistor position and terminal specifications to ensure seamless integration without modifications.
_x000D__x000D_Application. This sensor fits the 05-15 4.0L Tacoma without exclusions or modifications required for this specific fitment.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
5.0
Reviews of similar Engine Products (1)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Tacoma
- 4.0L V6 - 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15
