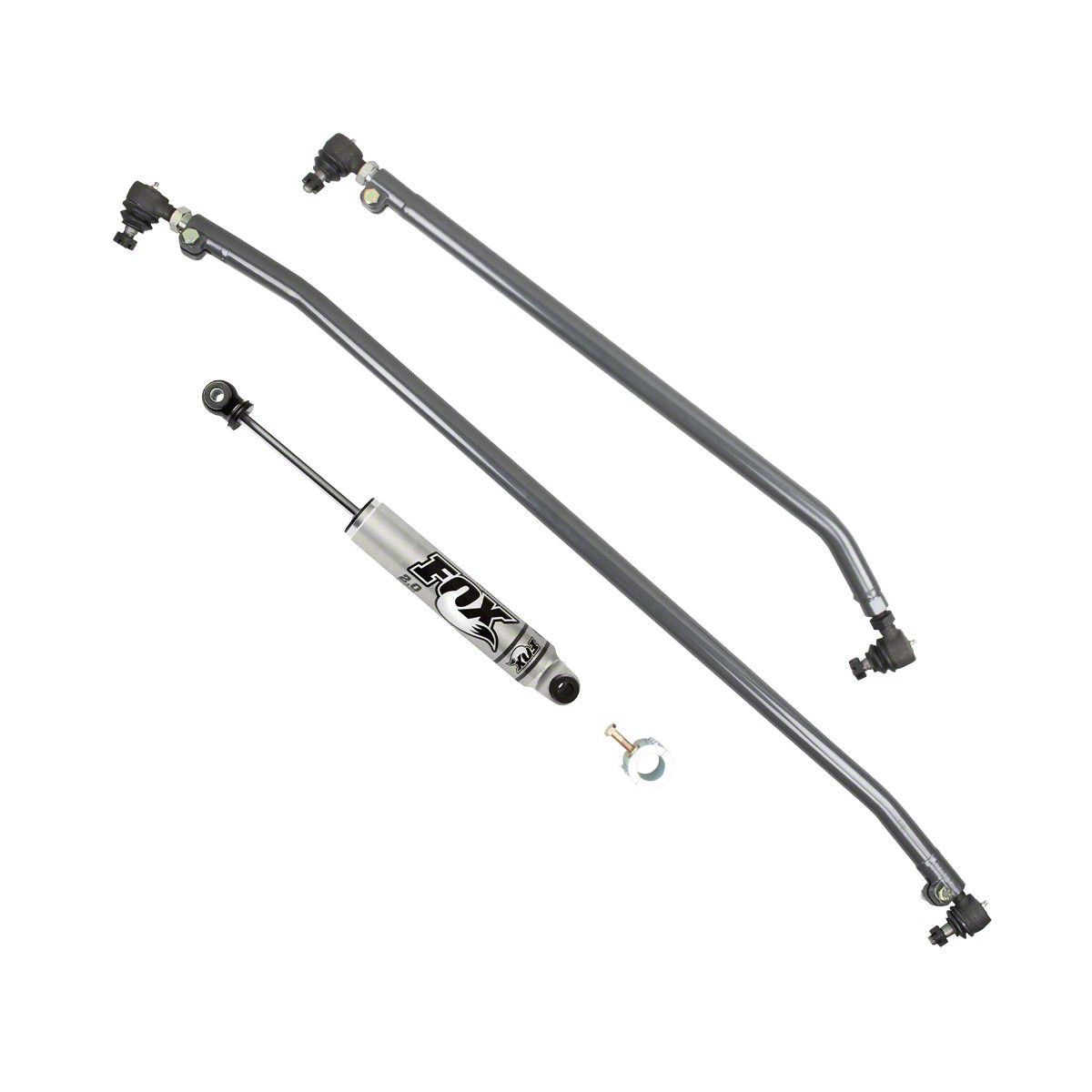

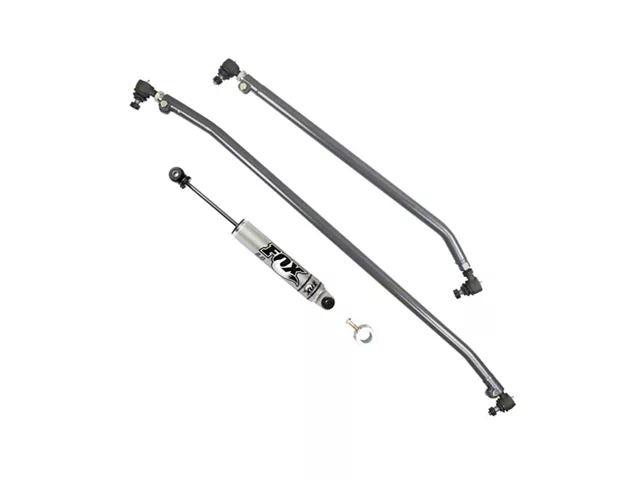

Synergy Manufacturing Heavy Duty Steering Kit with FOX IFP Stabilizer (07-18 Jeep Wrangler JK)Find parts that fit my vehicle
Item J245408
$0.00
6 Reviews
Our Price
$1,225.00
Military & First Responders
Earn $61.25 in XT Cash Rewards. Get Verified
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Description, Reviews, Q&A, Specs & Installation
Description
Description
Jeep JK Wrangler Heavy Duty Steering Kit. Direct bolt-in replacement for the stock components for an immediate upgrade in steering feel, stiffness, and strength. Single Plane Tie Rod End eliminates unwanted Drag Link and Tie Rod Flop. You will not find a better steering kit on the market!.
Benefits:
Drag Link fits all JK Wranglers, including those with aftermarket JK axle housings.
Larger tubing size than previous design improves drag link strength and steering feel. Offers a more direct connection to the road/trail compared to stock; no more bent drag links and constantly having to re-center your steering wheel.
Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance. Synergy High Performance Grease recommended (4119).
Single plane tie rod ends are used on both the drag link and tie rod to eliminate unwanted movement. Drastically simplifies installation and only allows necessary degree of movement.
Drag Link Flip Adapter is NOW INCLUDED for those who will be converting to high steer. No longer need to purchase this part separately.
Features:
Drag Link bolts right into the factory mounts or can be relocated to the top of the steering knuckle for a high steer setup using included flip adapter (See Notes for high steer requirements)
No factory drag link components need to be reused
Includes Synergy HD Metal on Metal Tie Rod Ends with a Single Plane version at the pitman arm side to completely eliminate Drag Link Flop
Drag Link made from 1.5 inch x .250 wall DOM tubing
Tie Rod made from 1.5 inch x .188 wall 4130 Chromoly and Heat Treated for maximum strength - over 200 percent stronger than stock tie rod
Tie Rod is bent similar to factory bar to clear sway bar mounts
Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve allows adjustment of drag link and tie rod length without removing it from the vehicle
100 percent bolt-on components assures an easy, trouble free installation with the use of basic hand tools
Synergy Tie Rod and Drag Link both use the same tie rod end thread pitch, so one spare tie rod end (4131-L) can be used in any location in the steering.
Includes:
8025-00
(1) 8000-01- Drag Link
(1) 8002-15- Tie Rod
8025-10
(1) 8000-01 - Drag Link
(1) 8002-15 - Tie Rod
(1) 4050-50 - Stabilizer Clamp
(1) 8806-01 - Stabilizer Mount Stud
8025-11
(1) 8000-01 - Drag Link
(1) 8002-15 - Tie Rod
(1) 4050-50 - Stabilizer Clamp
(1) 8806-01 - Stabilizer Mount Stud
(1) 6401-01 - Synergy Tuned Fox IFP Stabilizer
Min/Max Lengths:
Measured in a straight line from zerk fitting to zerk fitting
Drag Link Minimum Length (Collapsed): 38.75 inch
Drag Link Maximum Length (Extended): 41.25 inch
Tie Rod Minimum Length (Collapsed): 58.188 inch
Tie Rod Maximum Length (Extended): 60.4375 inch
Notes:
Recommended Fox Steering Stabilizers:
IFP - Internal Floating Piston (6401-01),
TS - Through Shaft (6402-03),
ATS - Adjustable Through Shaft (6403-03)
Drag Link is designed to be used in the stock location for up to 3 inch lift heights. For 3-6 inch lift heights the drag link should be flipped for a high steer setup.
High Steer setup requires the Drag Link to be relocated to the top of the steering knuckle. Must use in conjunction with a raised front axle side track bar relocation bracket (See Synergy 8055, 8012-13, or 8009-01). Rear track bar should ideally be raised a similar amount at the axle.
Tie Rod, or flipped Drag Link, require 16 inch or larger wheel diameter with a maximum 4-3/4 inch backspacing or wheel spacer with factory wheel setup. 4-1/2 inch back spacing is recommended.
Jeep JK Wrangler Heavy Duty Steering Kit. Direct bolt-in replacement for the stock components for an immediate upgrade in steering feel, stiffness, and strength. Single Plane Tie Rod End eliminates unwanted Drag Link and Tie Rod Flop. You will not find a better steering kit on the market!.
Benefits:
Drag Link fits all JK Wranglers, including those with aftermarket JK axle housings.
Larger tubing size than previous design improves drag link strength and steering feel. Offers a more direct connection to the road/trail compared to stock; no more bent drag links and constantly having to re-center your steering wheel.
Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance. Synergy High Performance Grease recommended (4119).
Single plane tie rod ends are used on both the drag link and tie rod to eliminate unwanted movement. Drastically simplifies installation and only allows necessary degree of movement.
Drag Link Flip Adapter is NOW INCLUDED for those who will be converting to high steer. No longer need to purchase this part separately.
Features:
Drag Link bolts right into the factory mounts or can be relocated to the top of the steering knuckle for a high steer setup using included flip adapter (See Notes for high steer requirements)
No factory drag link components need to be reused
Includes Synergy HD Metal on Metal Tie Rod Ends with a Single Plane version at the pitman arm side to completely eliminate Drag Link Flop
Drag Link made from 1.5 inch x .250 wall DOM tubing
Tie Rod made from 1.5 inch x .188 wall 4130 Chromoly and Heat Treated for maximum strength - over 200 percent stronger than stock tie rod
Tie Rod is bent similar to factory bar to clear sway bar mounts
Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve allows adjustment of drag link and tie rod length without removing it from the vehicle
100 percent bolt-on components assures an easy, trouble free installation with the use of basic hand tools
Synergy Tie Rod and Drag Link both use the same tie rod end thread pitch, so one spare tie rod end (4131-L) can be used in any location in the steering.
Includes:
8025-00
(1) 8000-01- Drag Link
(1) 8002-15- Tie Rod
8025-10
(1) 8000-01 - Drag Link
(1) 8002-15 - Tie Rod
(1) 4050-50 - Stabilizer Clamp
(1) 8806-01 - Stabilizer Mount Stud
8025-11
(1) 8000-01 - Drag Link
(1) 8002-15 - Tie Rod
(1) 4050-50 - Stabilizer Clamp
(1) 8806-01 - Stabilizer Mount Stud
(1) 6401-01 - Synergy Tuned Fox IFP Stabilizer
Min/Max Lengths:
Measured in a straight line from zerk fitting to zerk fitting
Drag Link Minimum Length (Collapsed): 38.75 inch
Drag Link Maximum Length (Extended): 41.25 inch
Tie Rod Minimum Length (Collapsed): 58.188 inch
Tie Rod Maximum Length (Extended): 60.4375 inch
Notes:
Recommended Fox Steering Stabilizers:
IFP - Internal Floating Piston (6401-01),
TS - Through Shaft (6402-03),
ATS - Adjustable Through Shaft (6403-03)
Drag Link is designed to be used in the stock location for up to 3 inch lift heights. For 3-6 inch lift heights the drag link should be flipped for a high steer setup.
High Steer setup requires the Drag Link to be relocated to the top of the steering knuckle. Must use in conjunction with a raised front axle side track bar relocation bracket (See Synergy 8055, 8012-13, or 8009-01). Rear track bar should ideally be raised a similar amount at the axle.
Tie Rod, or flipped Drag Link, require 16 inch or larger wheel diameter with a maximum 4-3/4 inch backspacing or wheel spacer with factory wheel setup. 4-1/2 inch back spacing is recommended.
