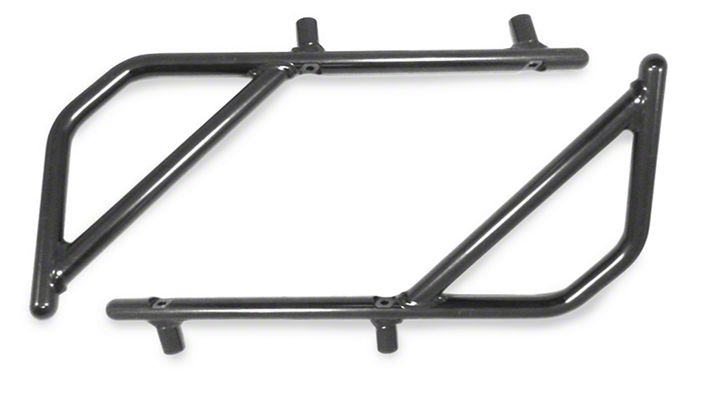

How to Install Steinjager Rigid Wire Form Rear Grab Handles - Black (07-18 Jeep Wrangler JK 4 Door) on your Jeep Wrangler
Shop Parts in this Guide
1. Locate the two bolts running to the speaker pod of the roll bar (Figure A).
Figure A
2. Using a 10mm socket wrench, unscrew each bolt slowly (Figure B).
Figure B
3. Remove both bolts (with washers) entirely (Figure C).
Figure C
4. Insert both included bolts into the grab handle pre-drilled holes (Figure D).
Figure D
5. Hand-thread each bolt into the locations the bolts were removed from in Step 3 (Figure E).
Figure E
6. Using a 10mm socket wrench, tighten the rear bolt (Figure F).
Figure F
7. Using a 10mm socket wrench, tighten the front bolt (Figure G).
Figure G
8. Repeat Steps 1-7 on the other side.
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/26/2018
