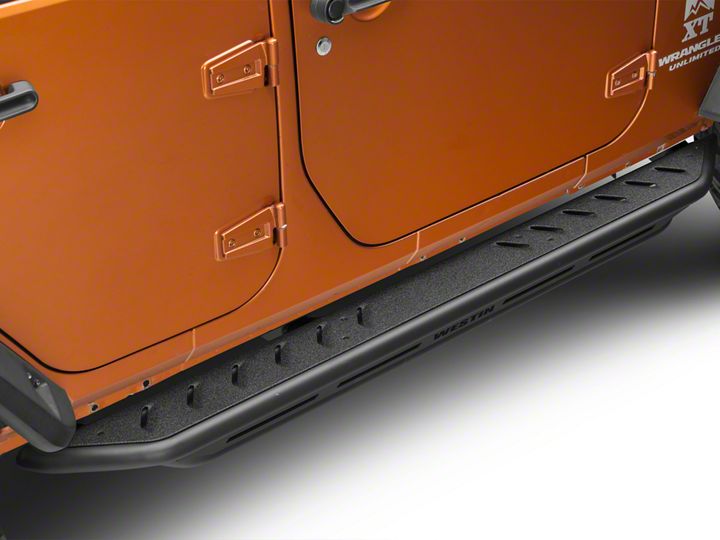

How to Install Snyper Triple Tube Rock Rails - Textured Black (07-18 Jeep Wrangler JK 4 Door) on your Jeep Wrangler
Installation Time
1.5 hours
Tools Required
- 16mm Socket
- Socket Extension
- Socket Wrench
- Torque Wrench
Shop Parts in this Guide
1. Locate the 16mm nuts on the three mount locations (six total bolts) on the passenger side of the vehicle (Figure A).
Figure A
2. Using a 16mm socket wrench and extension, loosen all six mounting location nuts on the passenger side of the vehicle (Figure B).
Figure B
3. Remove the nuts (Figure C).
Figure C
4. Place a washer (provided) on each of the nuts removed (Figure D).
Figure D
5. With the help of placement jacks or another individual, slide the rock rails into place (Figure E).
Figure E
6. Thread the 16mm nuts back onto the mounting locations (with the included washer between the nut and the rock rails) (Figure F).
Figure F
7. Tighten the nuts into place using a 16mm socket wrench and extension (Figure G).
Figure G
8. Torque each of the bolts to 35 ft/lbs (Figure H).
Figure H
9. Repeat Steps 1-8 on the driver's side, as well.
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 10/06/2018
